DC-DC Auto Boost Buck Converter Module 1-6V to 3V 3.3V 4.2V 5V – Stabilized Power Supply for Arduino ESP32 ESP8266 DIY Projects

$9.99 USD

~~$9.99 USD~~ $9.99 USD

Sale Sold out

Taxes included.

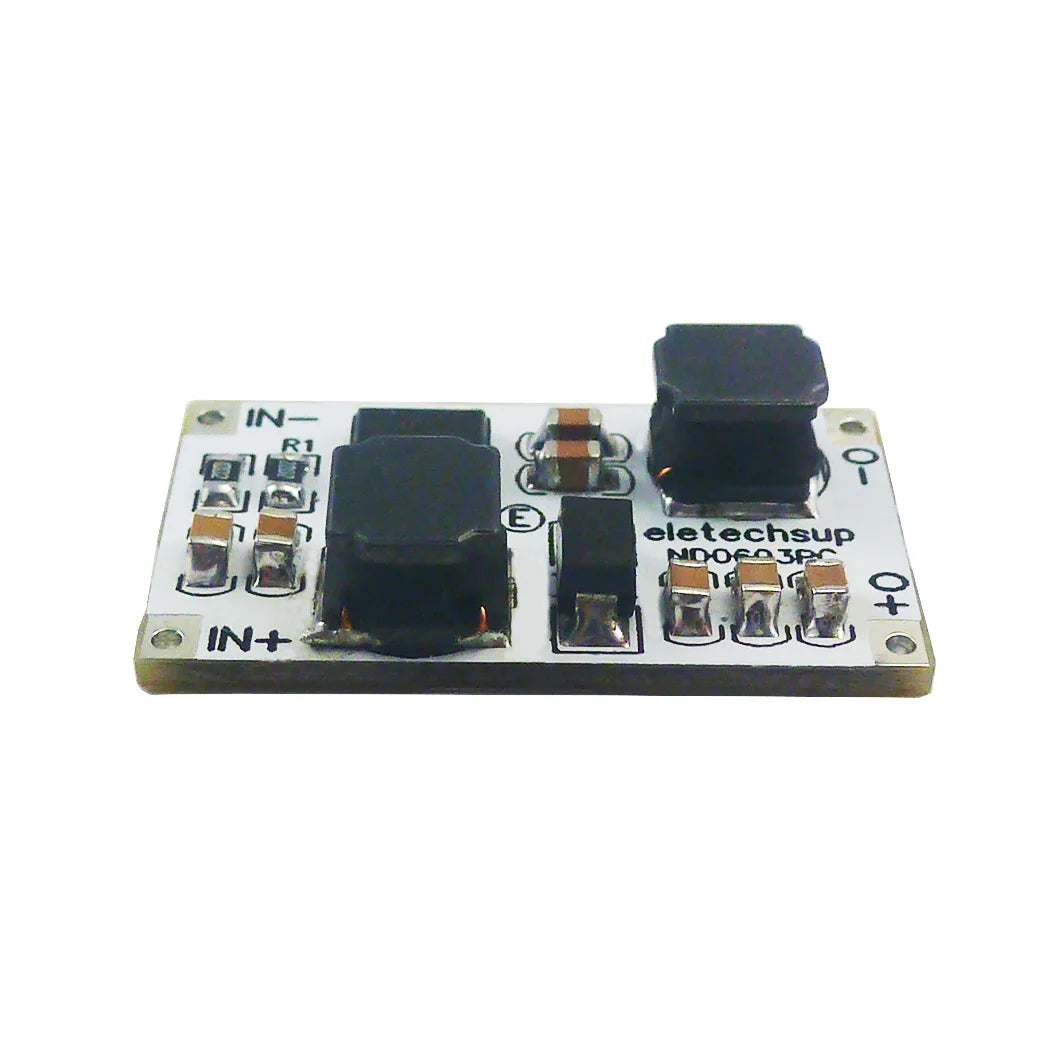

ND0603PC is a low-cost and cost-effective automatic buck-boost converter module developed and designed by eletechsup. Input 1-6V, stable output 3V/3.3V/4.2V/5V. It is an ideal LINO LIPO Lifpo4 battery regulator

Input voltage DC 0.9 ~ 6V, output DC 3V/3.3V/4.2V/5V

The maximum input voltage can not exceed 6.5V

Quiescent operating current: 0.26mA

Auto Buck-Boost Converter Module working frequency 1MHZ.efficiency 61%-86% .

Operating temperature range : -25~+85 Degrees Celsius

Storage temperature range : -45~+125 Degrees Celsius

Size : 26mm x 15.5mm x 5.8mm

Weight : 3g

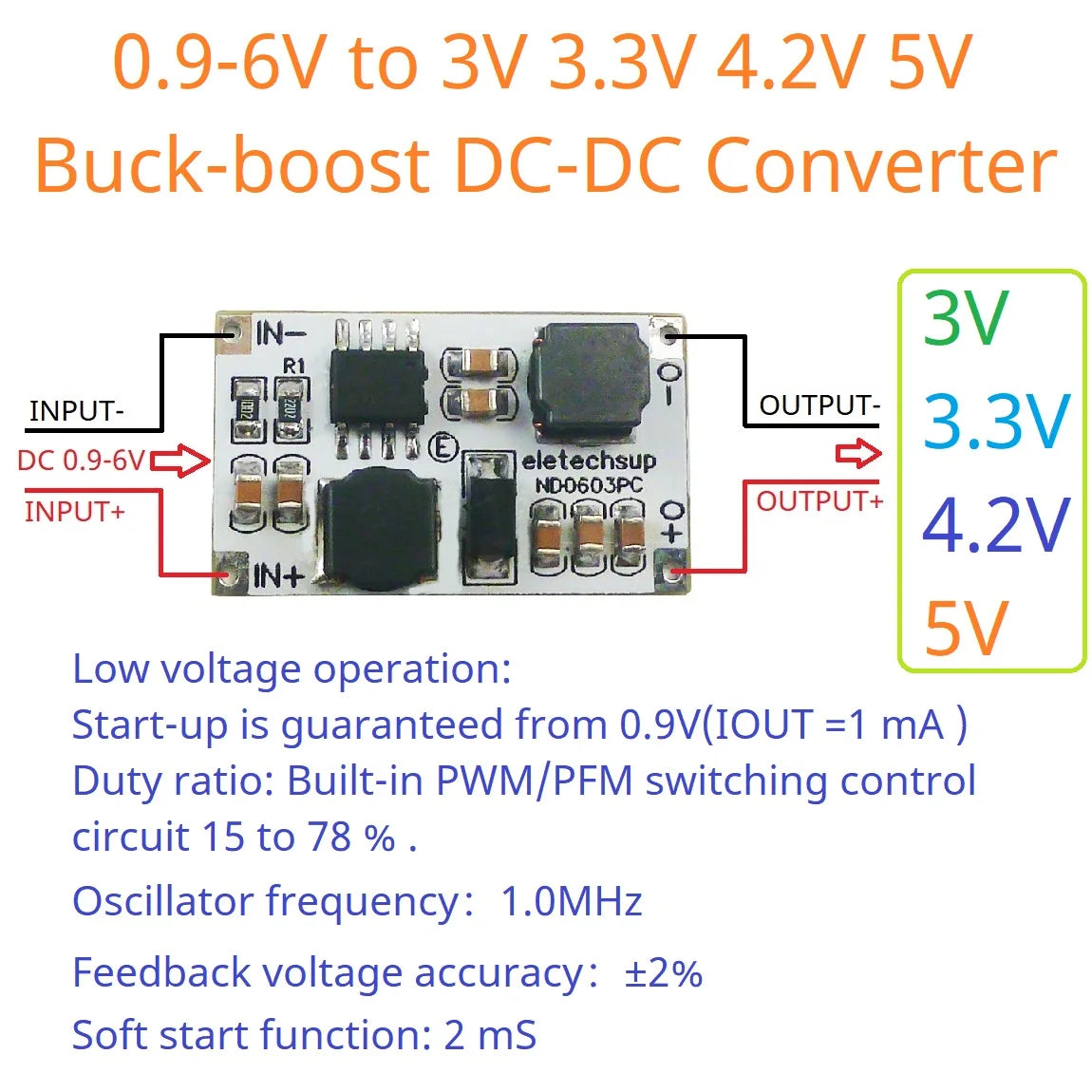

Features:
Low voltage operation: Start-up is guaranteed from 0.9V(IOUT =1 mA )
Duty ratio: Built-in PWM/PFM switching control
circuit 15 to 78 % .
Oscillator frequency:1.0MHz
Feedback voltage accuracy:±2%
Soft start function: 2 mS

This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Q & A:
Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low

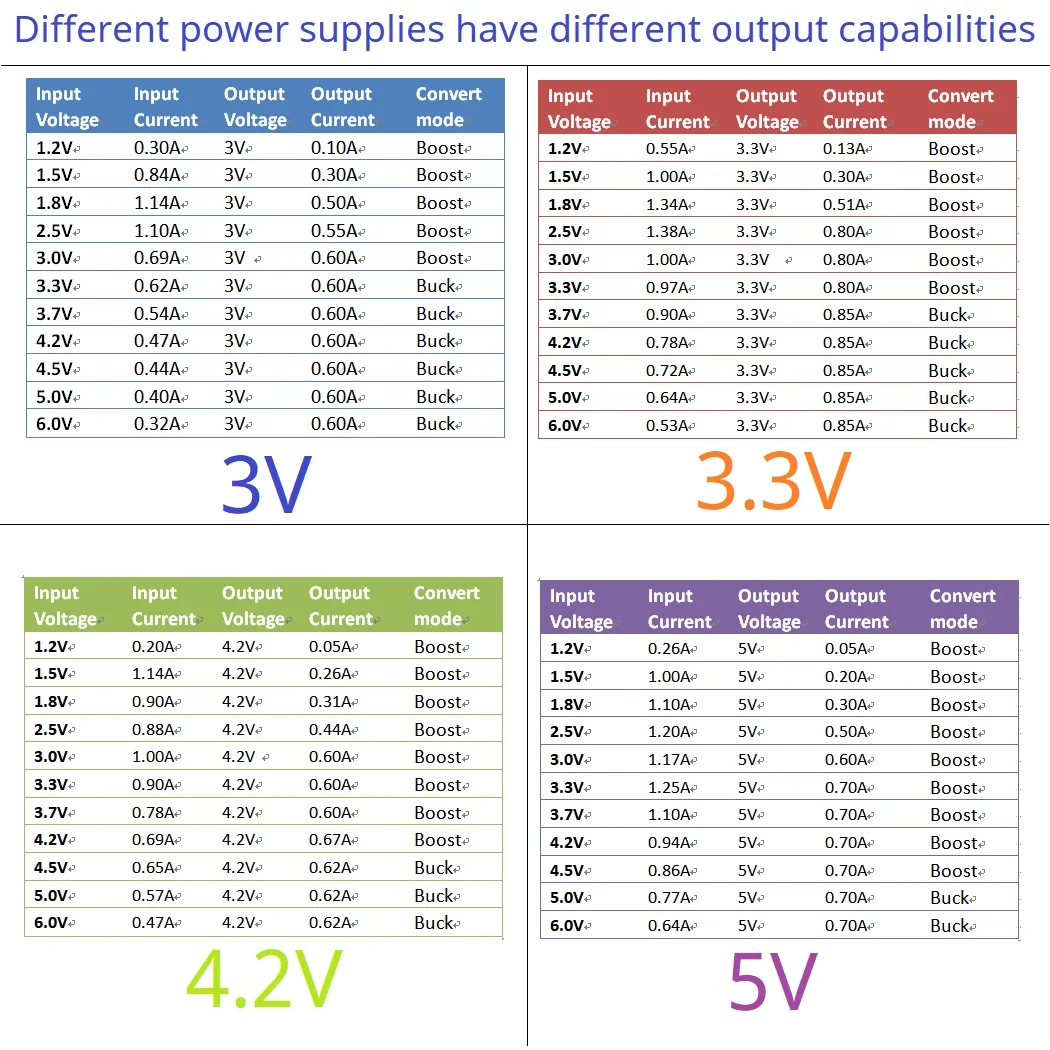

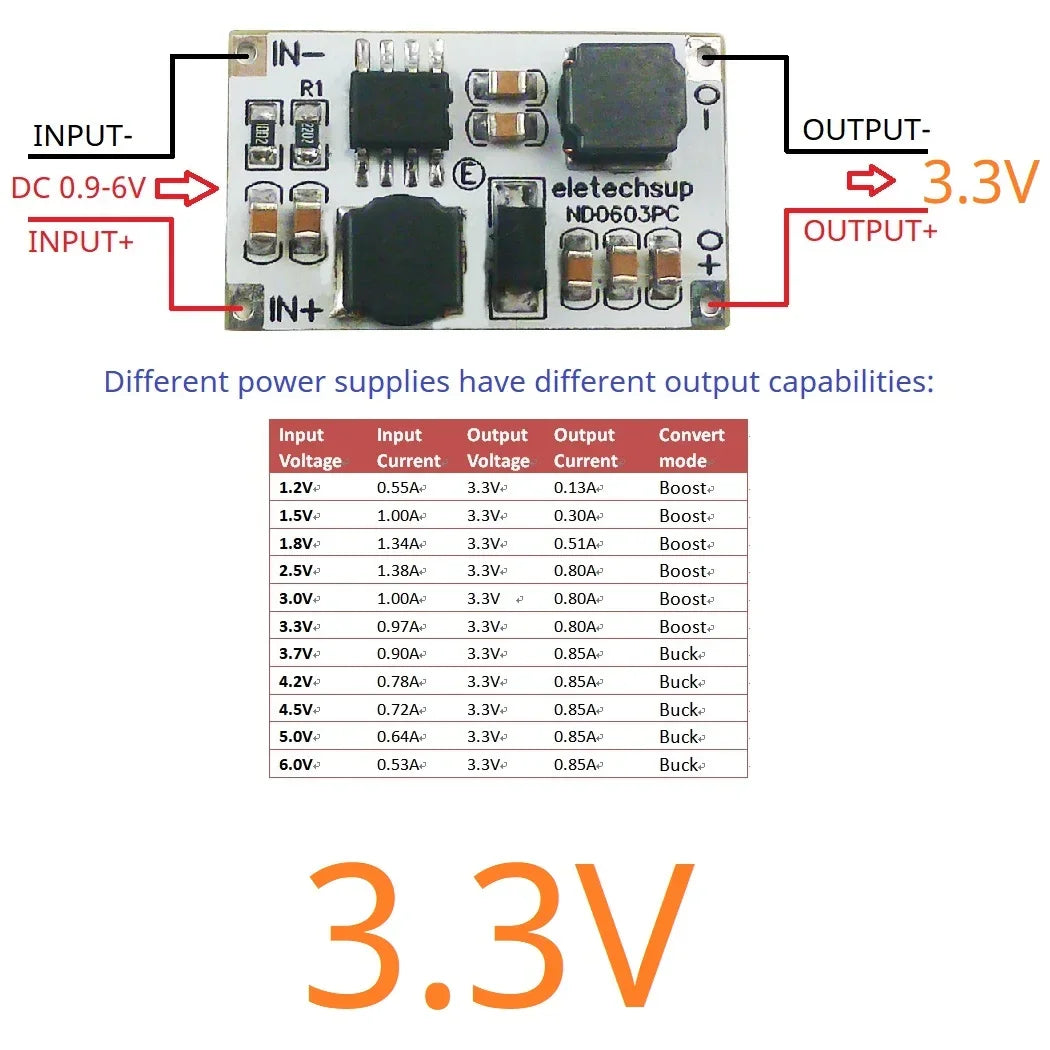

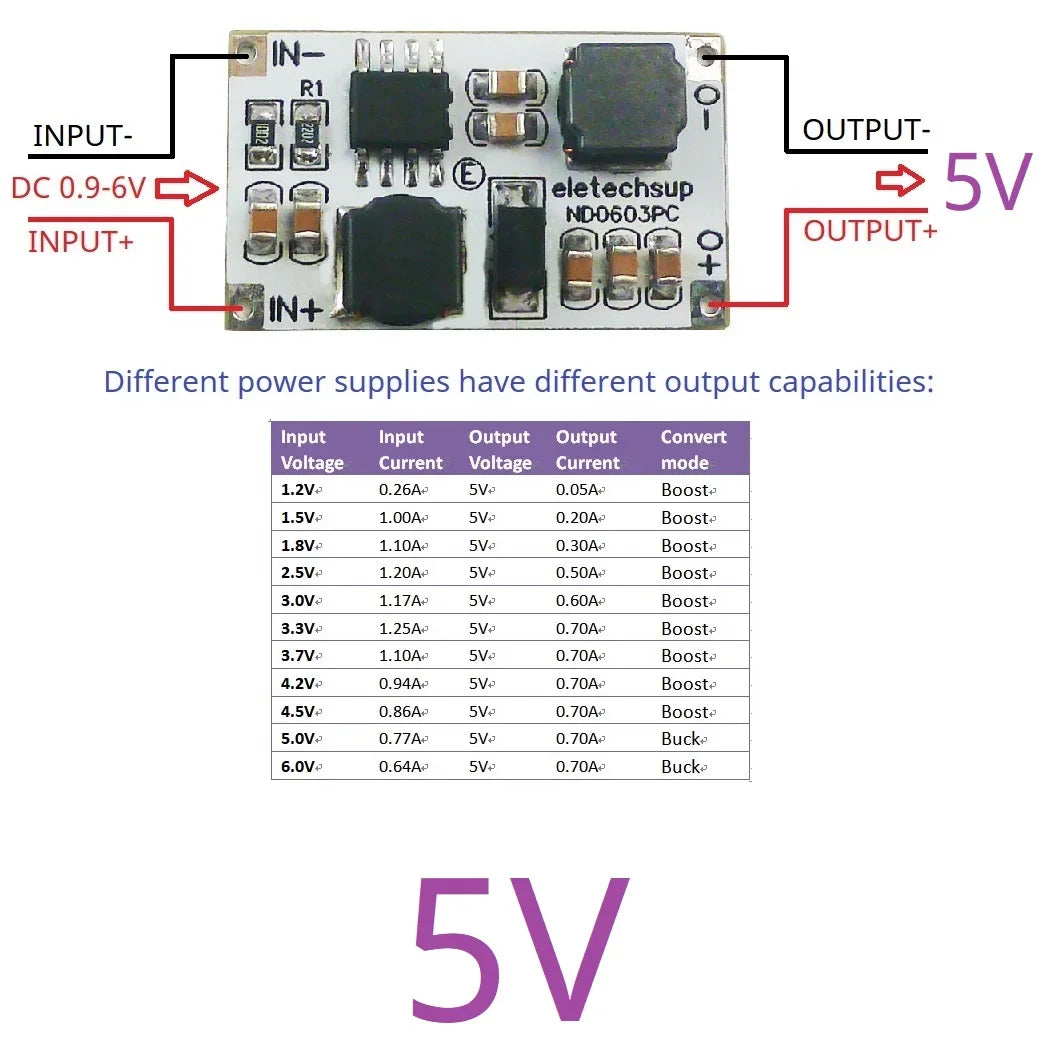

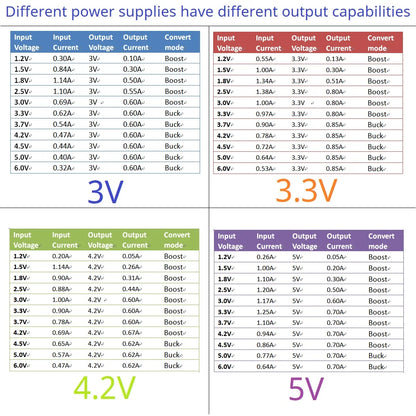

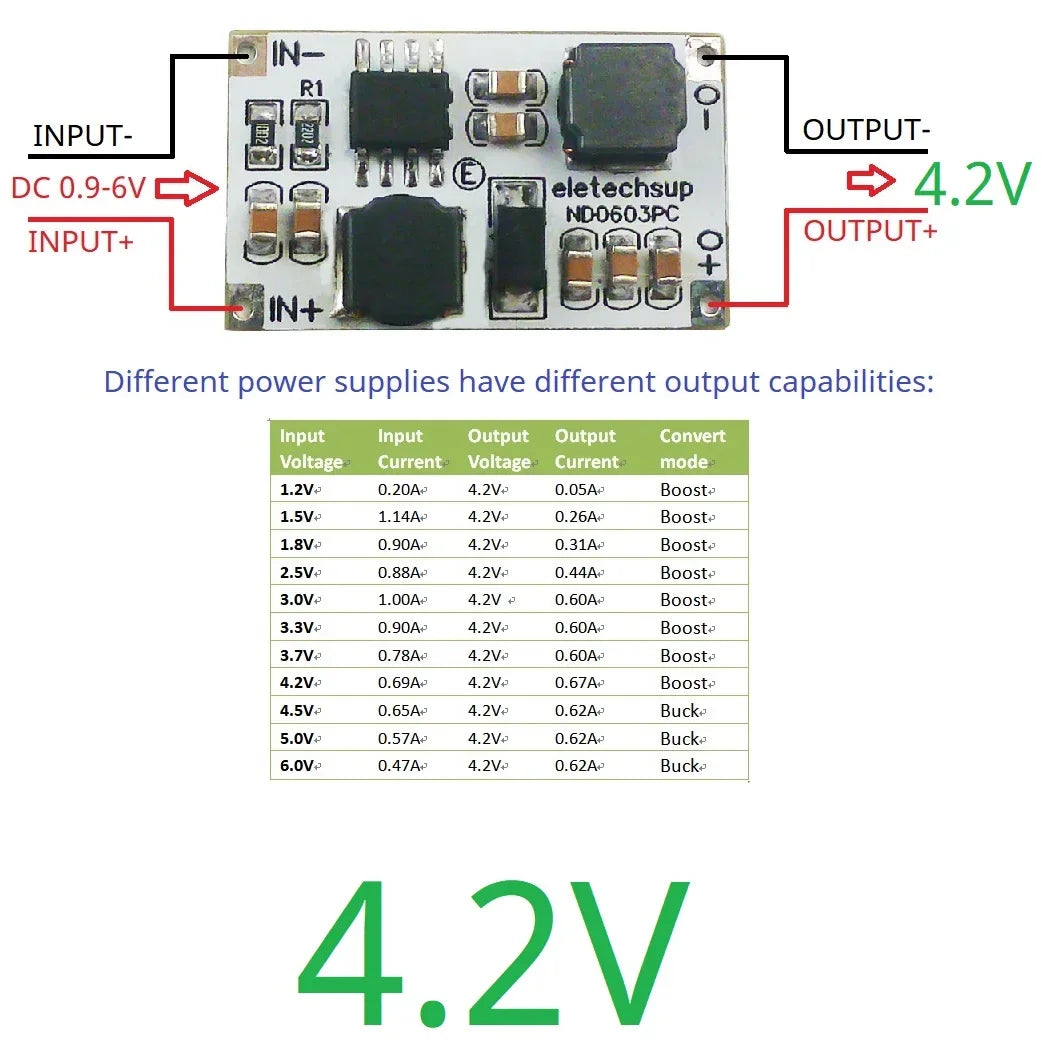

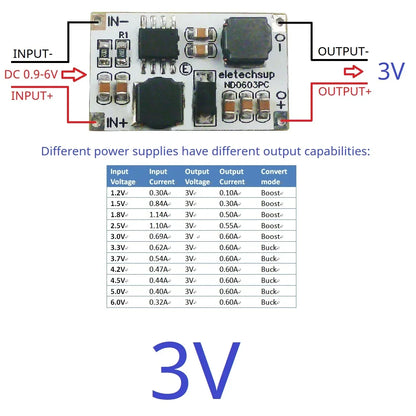

Different power supplies have different output capabilities:
