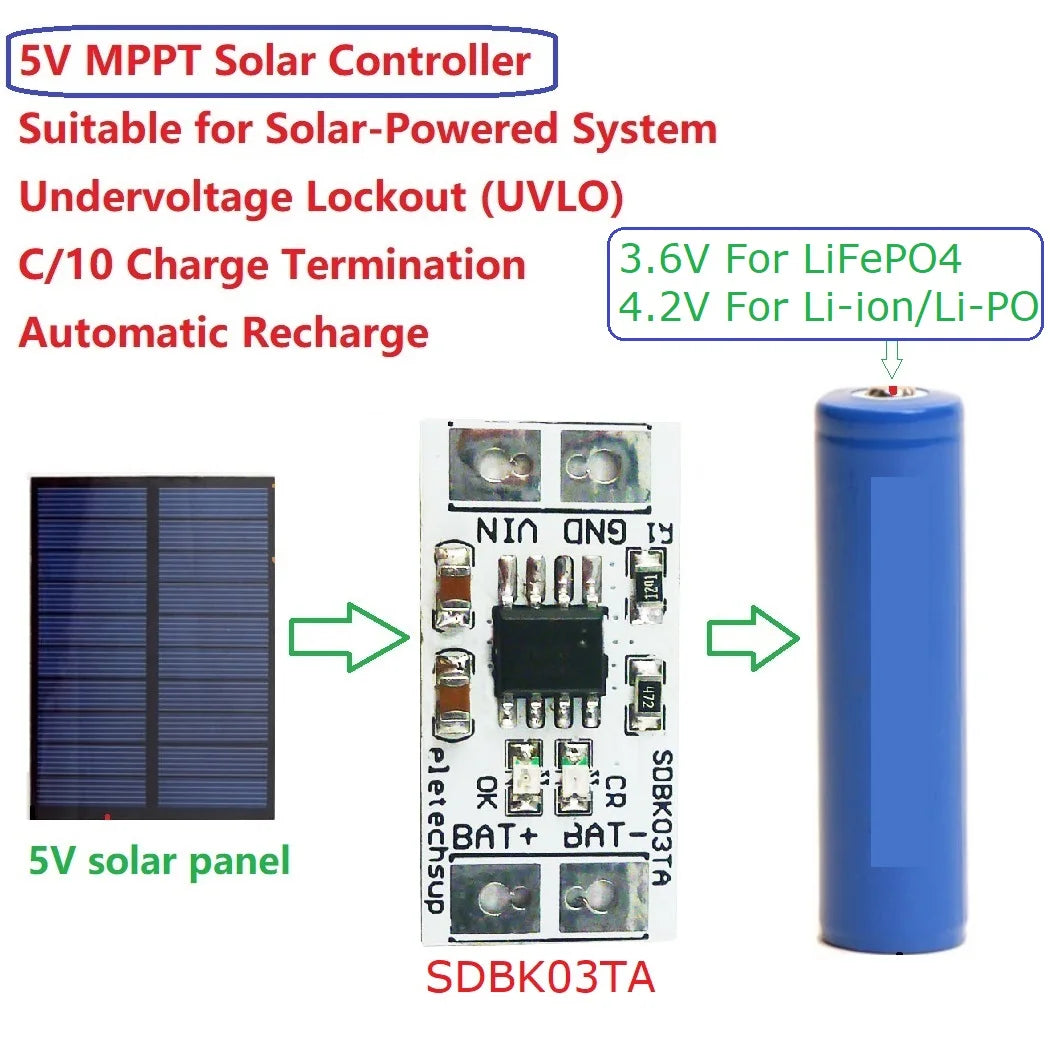

Mini MPPT Solar Charge Controller – 4.2V/3.7V/3.6V/3.2V Selectable Charger Module with 5V 1A Output for Li-Ion / Li-PO / LiFePO4 Battery





Description:

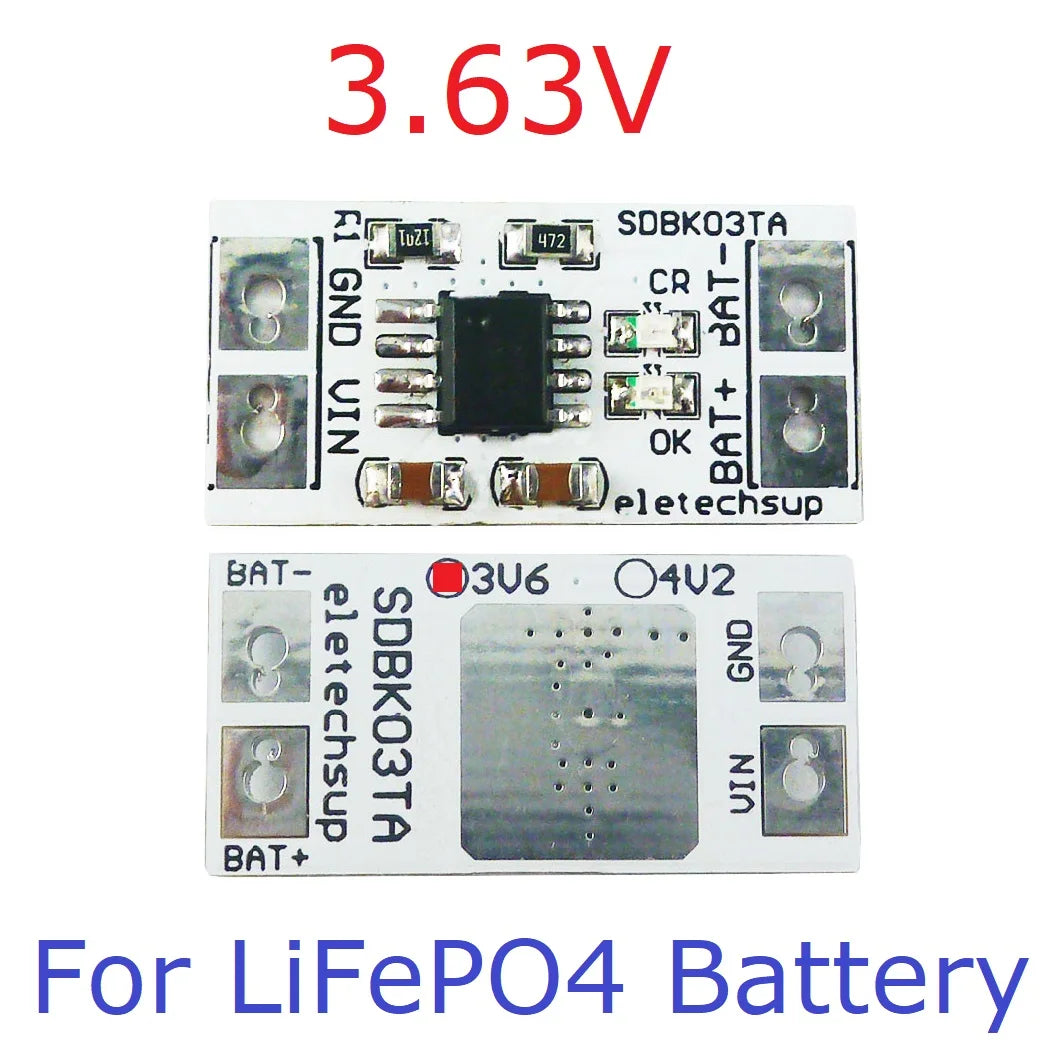

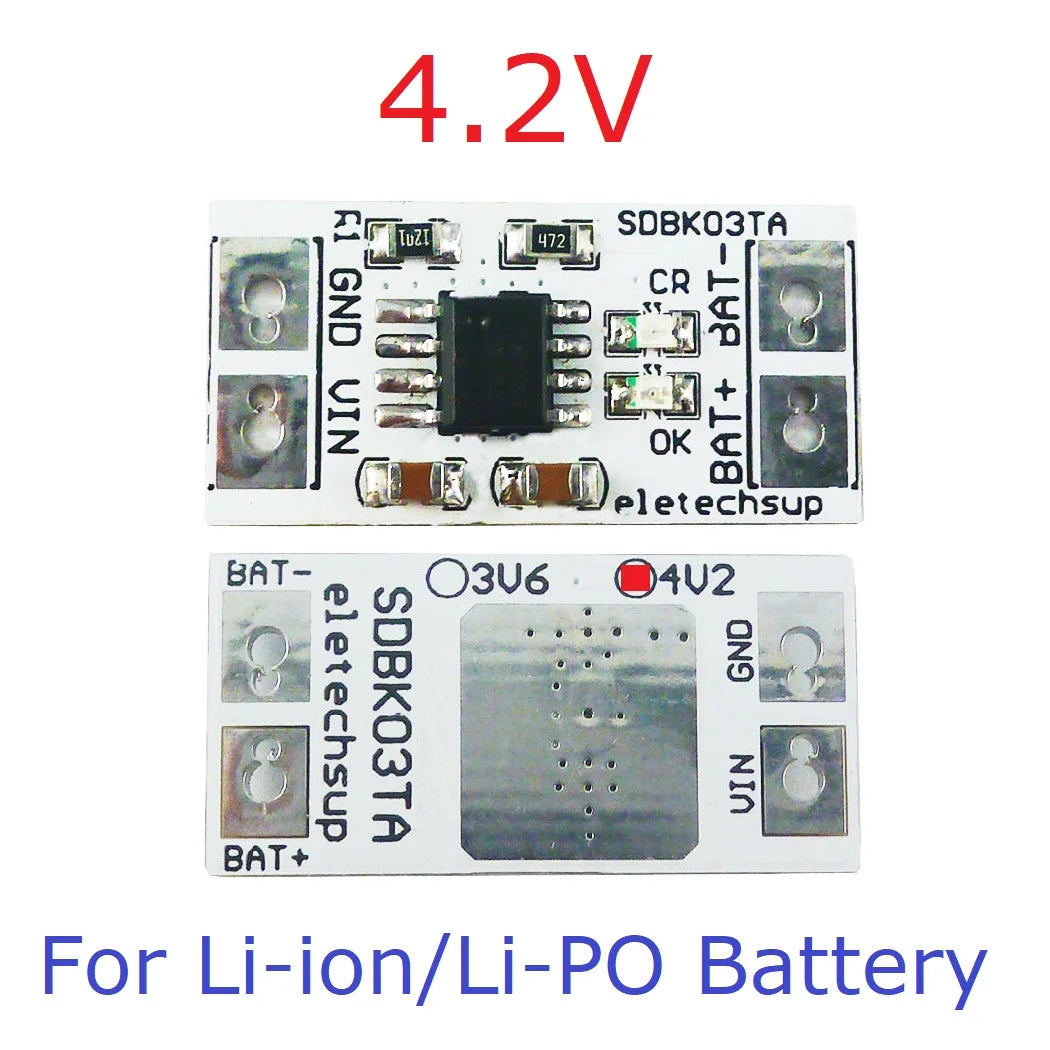

4.2V Li-ion(Li-PO) OR 3.6V LiFePO4 Battery Charger for Solar-Powered Systems


Power supply voltage DC 4.4-6V,Charging output voltage DC 4.2V/3.63V;

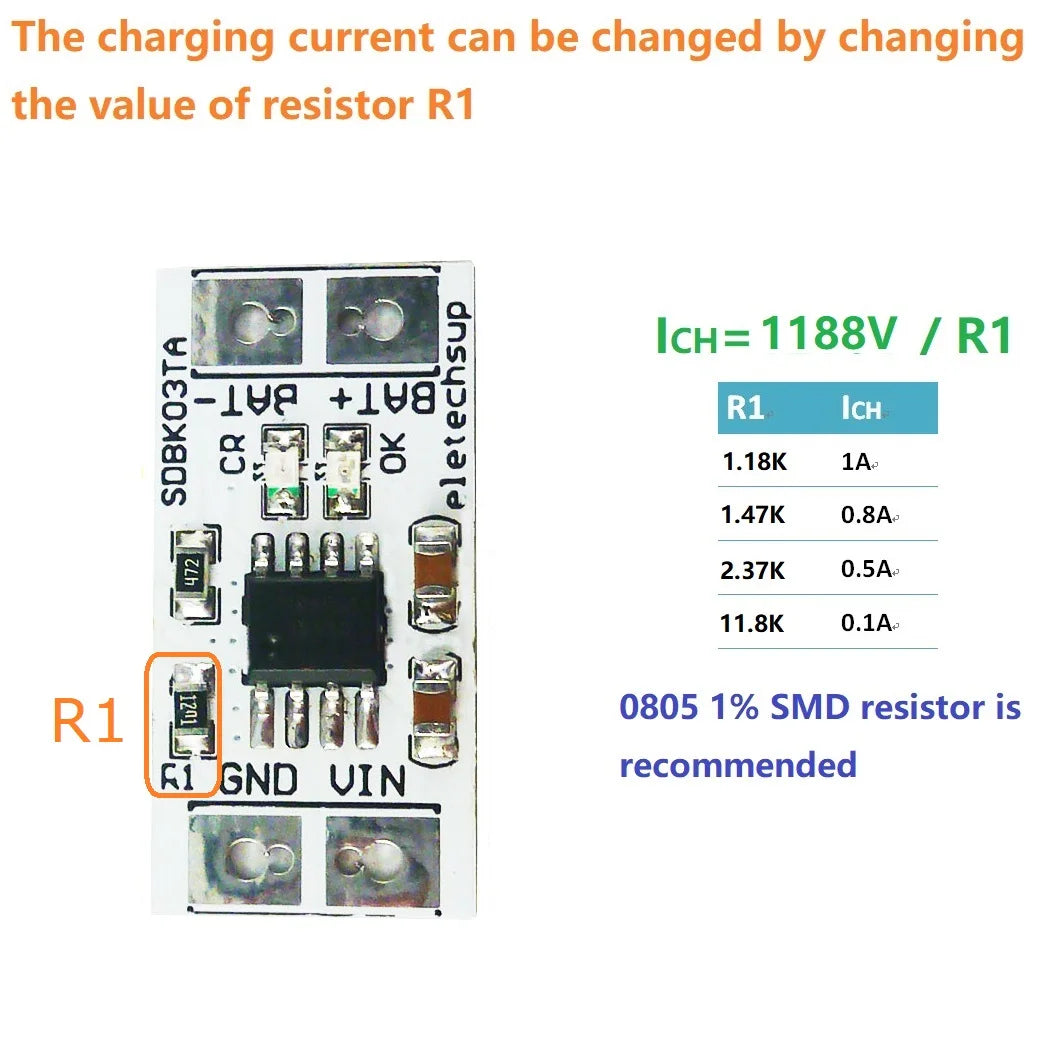

The maximum charge current / output current is 1A, but you can change the current by changing the value of the R1 resistor.

Automatic charge current adjustment based on the output capability of input power supply

Suitable for Solar-Powered System

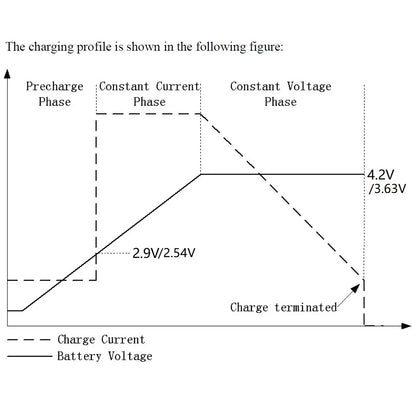

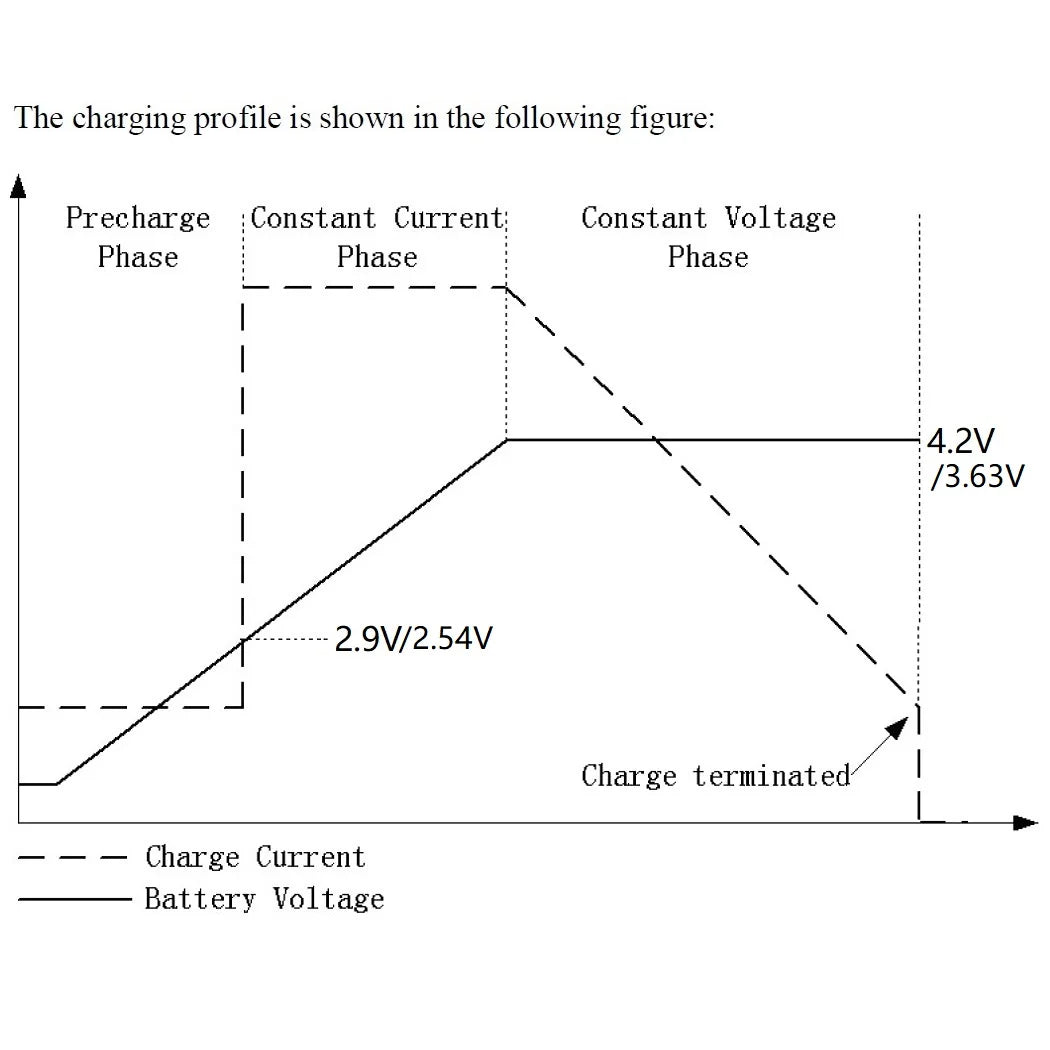

Precharge Conditioning for Reviving Deeply Discharged Cells and Minimizing Heat Dissipation During Initial Stage of Charge

Constant-Current/Constant-Voltage Operation with Thermal Regulation to Maximize Charge Rate Without Risk of Overheating

Automatic Low-Power Sleep Mode When Input Supply Voltage is Removed

C/10 Charge Termination

Automatic Recharge

Battery Overvoltage Protection

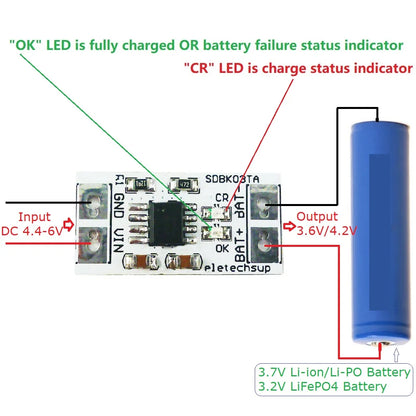

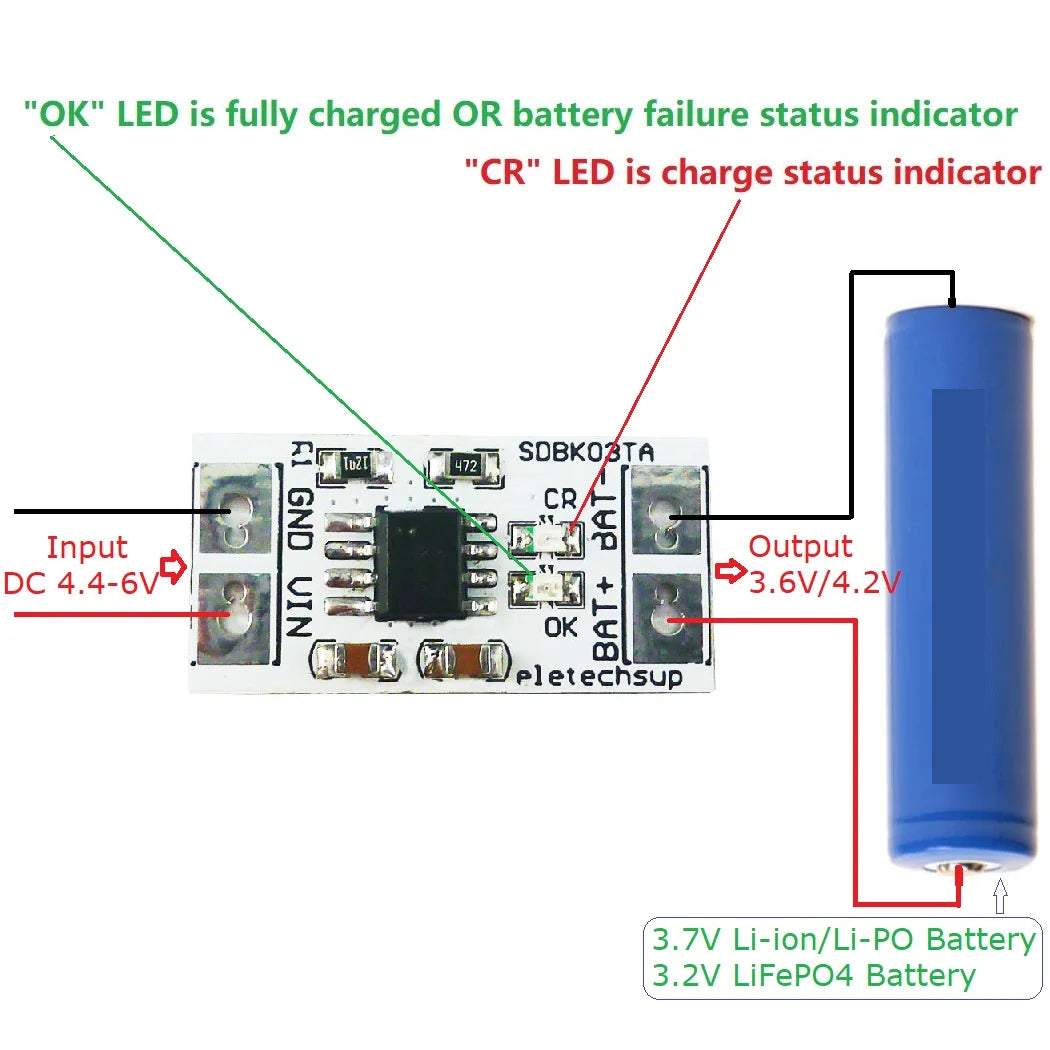

Led indicator :
''CR'' LED is charge status indicator
''OK'' LED is fully charged OR Constant voltage mode;

Operating Ambient Temperature－40℃ to ＋85℃

Size 24mm x 12mm x 2.6mm
Weight : 1g





If you need a chip brochure please contact me





The on-chip adaptive cell can adjust charging current automatically based on the output capability of input power supply, so SDBK03TA is ideally suited for the solar-powered systems, or the applications that need to charge lithium-ion battery or lithium polymer battery with an input power supply whose output capability is limited.

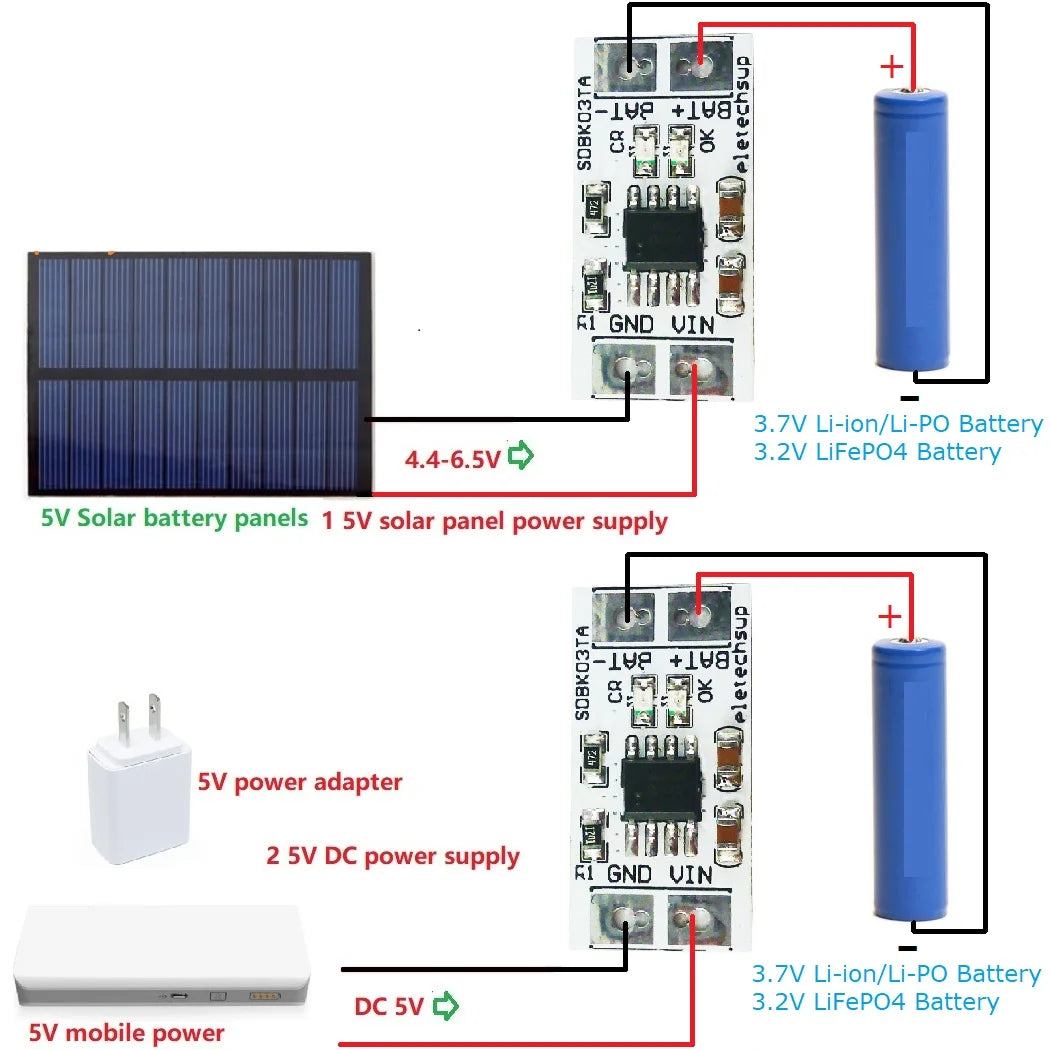

If your solar panel is 5V, then you can use it directly. Of course, the module can also be powered by a 5V DC power supply.

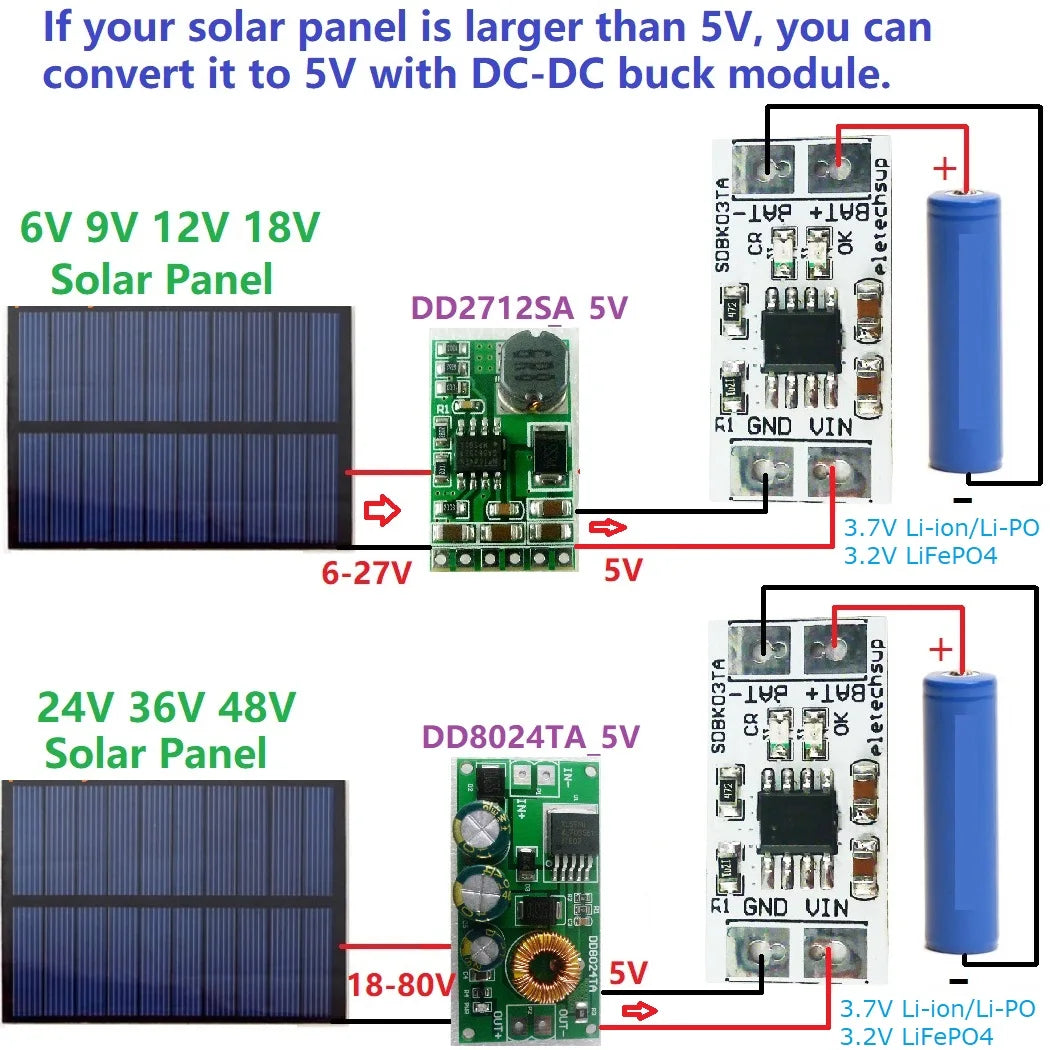

If your solar panel is larger than 5V(e.g. 6V 9V 12V 18V 24V 36V 48V), you can convert it to 5V with DC-DC buck module(e.g. DD2712SA_5V/DD8024TA_5V).
