10Pcs DD0512MA Mini 5W Boost Converter – DC 2.6-6V to 3.7V/5V/12V Adjustable Step-Up Regulator Module for DIY Electronics

10Pcs DD0512MA Mini 5W Boost Converter – DC 2.6-6V to 3.7V/5V/12V Adjustable Step-Up Regulator Module for DIY Electronics

$18.37 USD
$18.37 USD $18.37 USD
Sale Sold out
Taxes included.


Product Name: 10x Mini 5w 2.6-6v To 3.7v 5v 12v Boost Regulator Module Dc-Dc Boost Converter Module DD0512MA


Packing list:

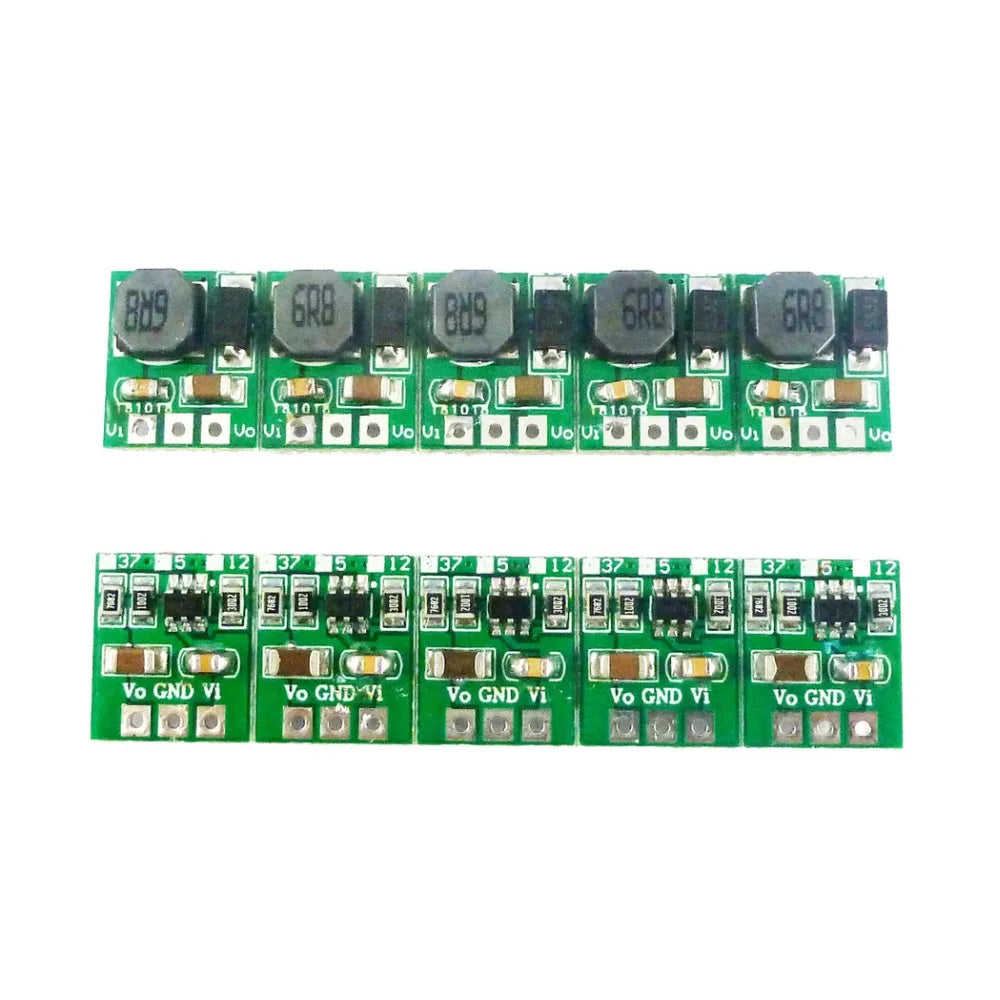

10 PCS 6W DD0512MA Ultra-small Ultra-small & Ultra-thin DC-DC Step-up Converter












Description:

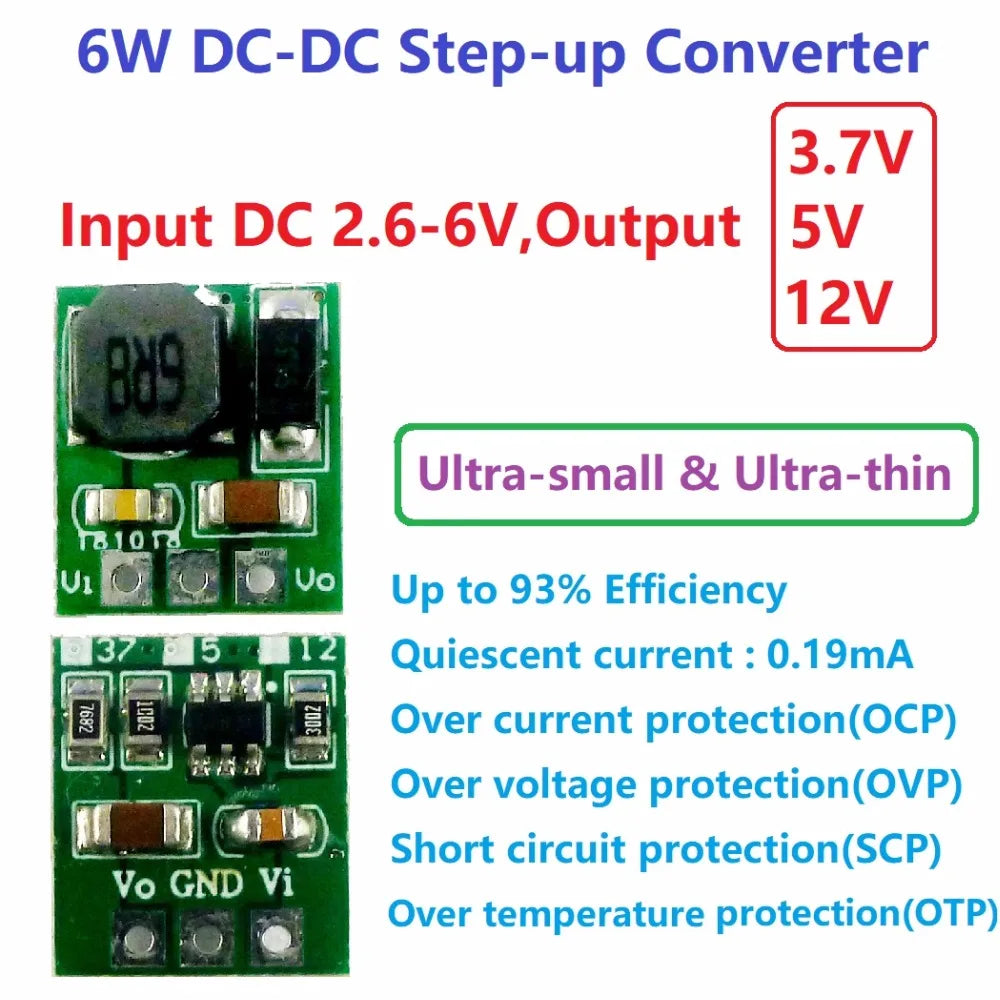

DC DC Boost Converter Module working frequency 1MHZ.



Up to 94% Efficiency (usually is 84%-91%)



Quiescent current : 0.19MA.


Operating temperature range : -40~+85 Degrees Celsius


Storage temperature range : -65~+150 Degrees Celsius

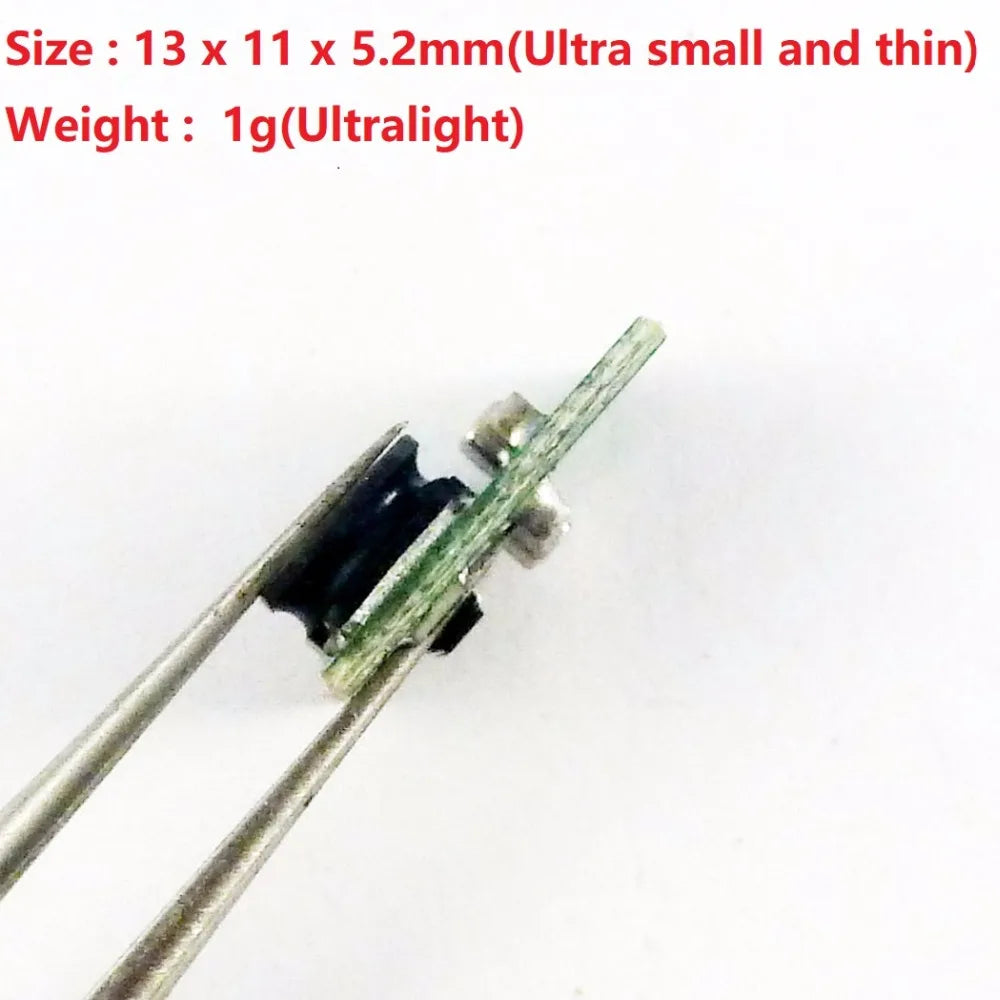

Size : 13 x 11 x 5.2mm(Ultra small and thin)



Weight : 1g(Ultralight)


Protection :


Over current protection(OCP)



Over voltage protection(OVP)



Short circuit protection(SCP)



Over temperature protection(OTP)

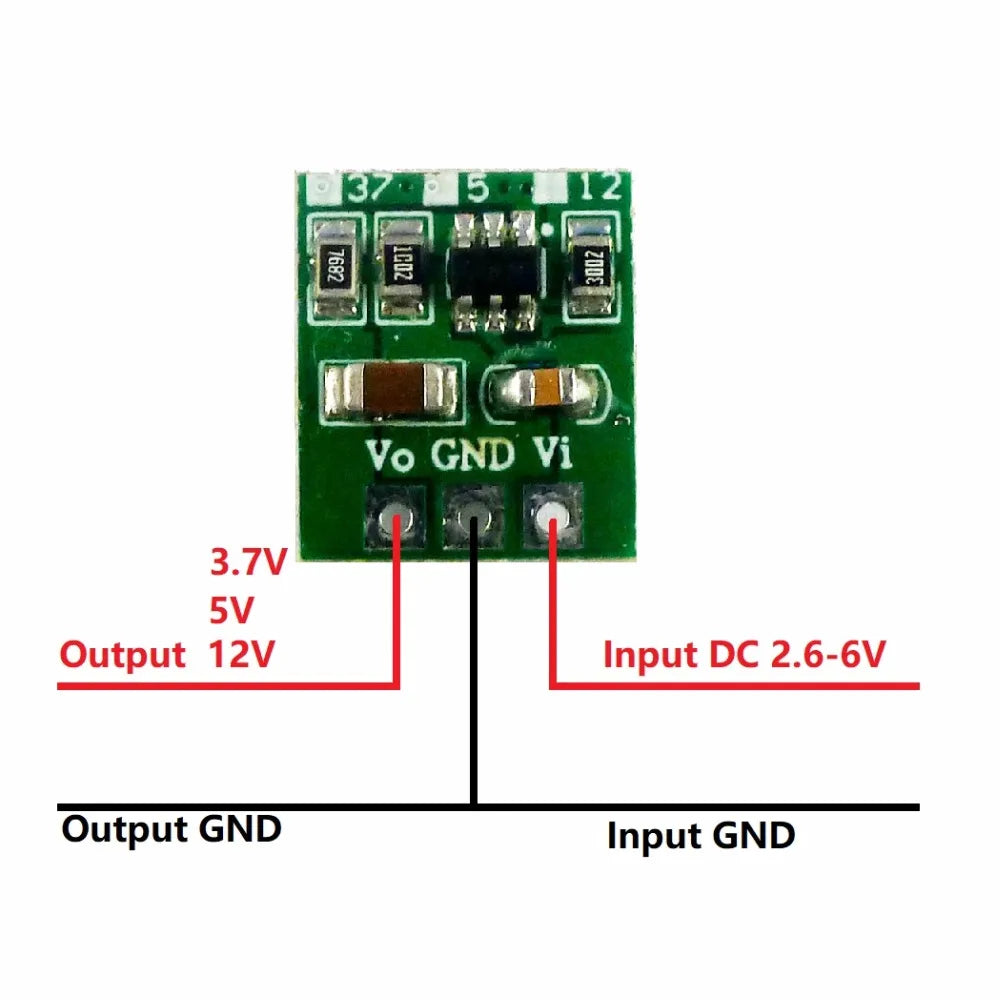

Pin description:


Pin description:



Vi : Input positive(+)



GND : Input and Output negative(GND/-)



Vo : Output positive(+)


Output 3.7V :



Input voltage DC 2.6 ~ 3.6V,output DC 3.7V±3%



Maximum output : 3.7V/1200MA(See the table below for details)









Output 5V :

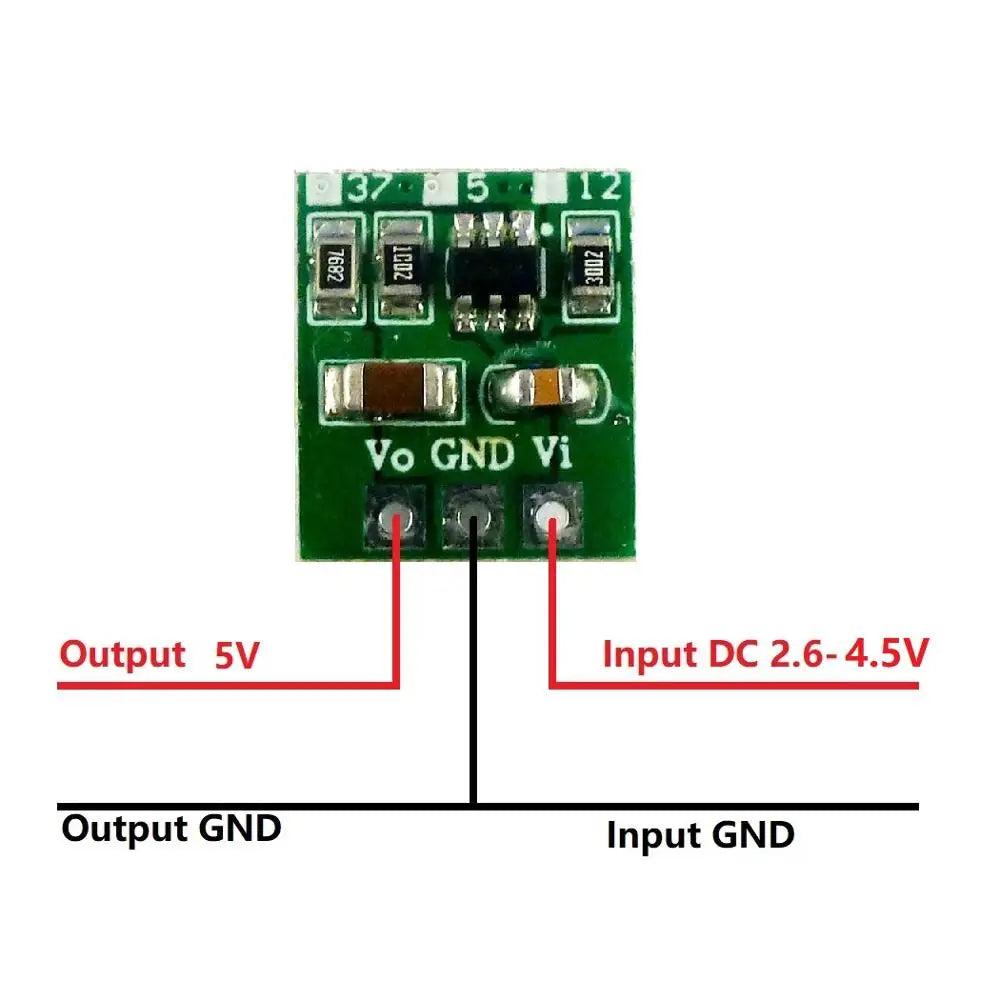

Input voltage DC 2.6 ~ 4.5V,output DC 5V±3%



Maximum output : 5V/1200MA(See the table below for details)






Output 12V :

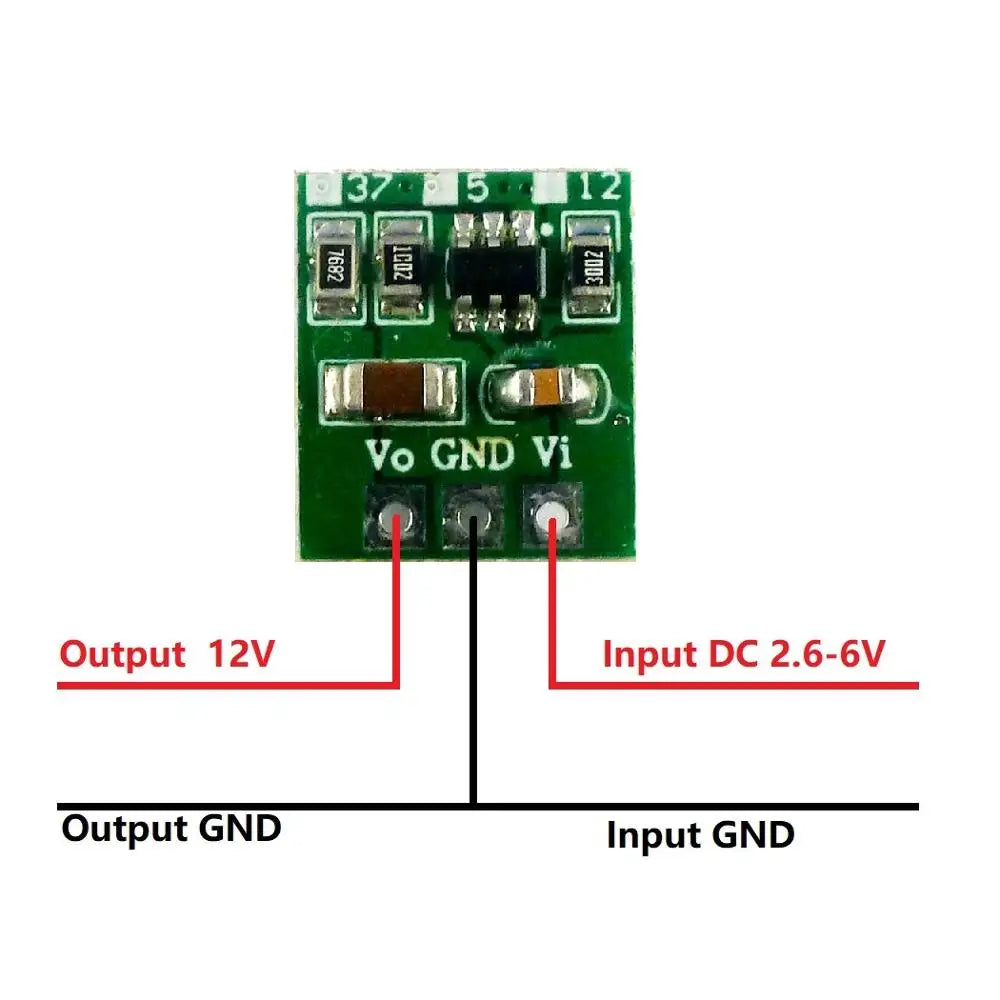

Input voltage DC 2.6 ~ 6V,output DC 12V±3%



Maximum output : 12V/500MA(See the table below for details)







Applications


Battery powered equipment



Instrumentation, multimeter



Small power motors



PTZ Camera webcam



IP Camera



Toy car boat



Model aircraft



power bank



LED Lighting



WIFI Router



PLC RS485 devices



Lithium battery power supply equipment



Attention :


This is a DC-DC voltage converter module,Must be noted when using:


1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself


Q & A:


Q : Why output voltage is less than the nominal voltage



A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
