ND9024TA 30W Ultra-Wide Voltage Regulator Module – DC 10-90V to 5V/12V/24V Adjustable Buck Converter for UPS E-Bike EV Solar New Energy

$6.83 USD

~~$6.83 USD~~ $6.83 USD

Sale Sold out

Taxes included.

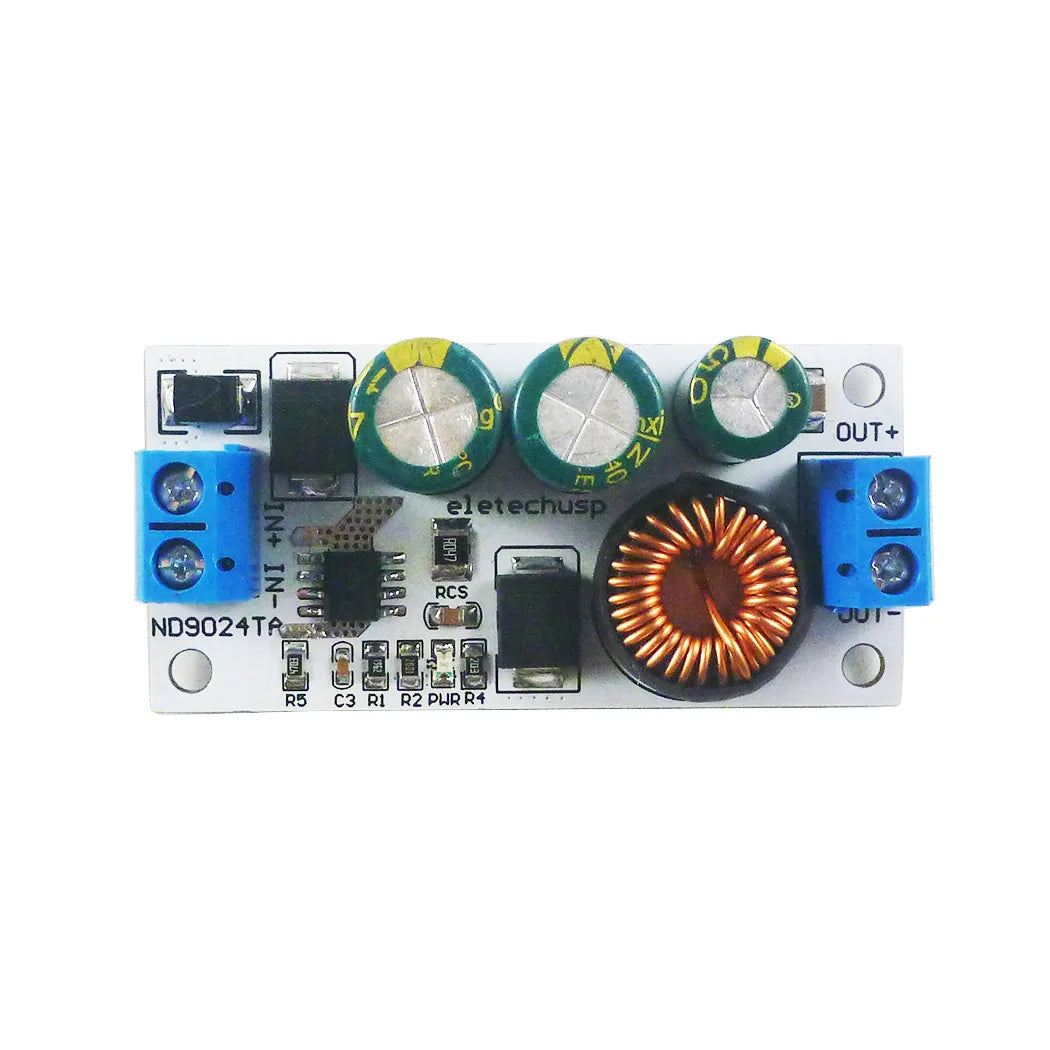

ND9024TA is Eletechsup high performance high voltage buck module, up to 90V input, optional 5V/12V/24V output.

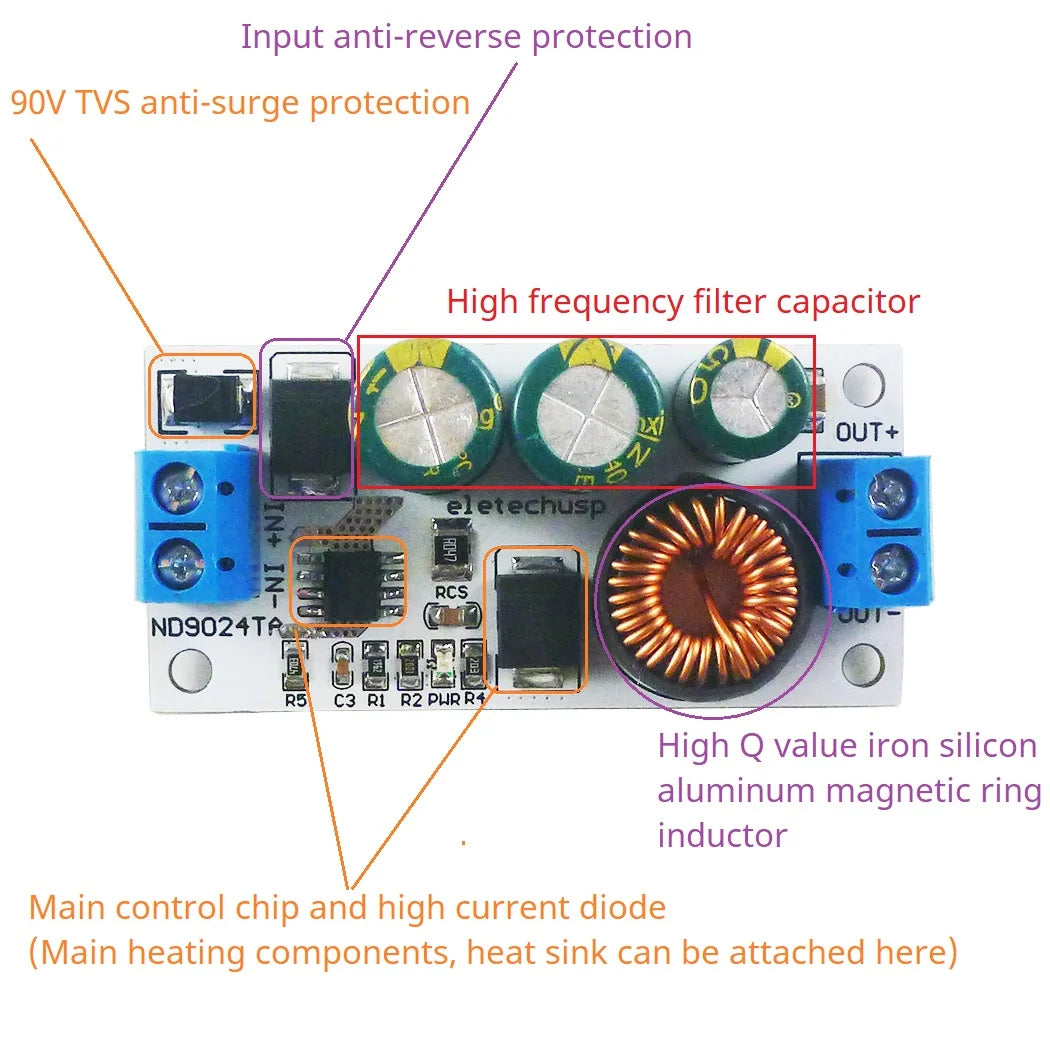

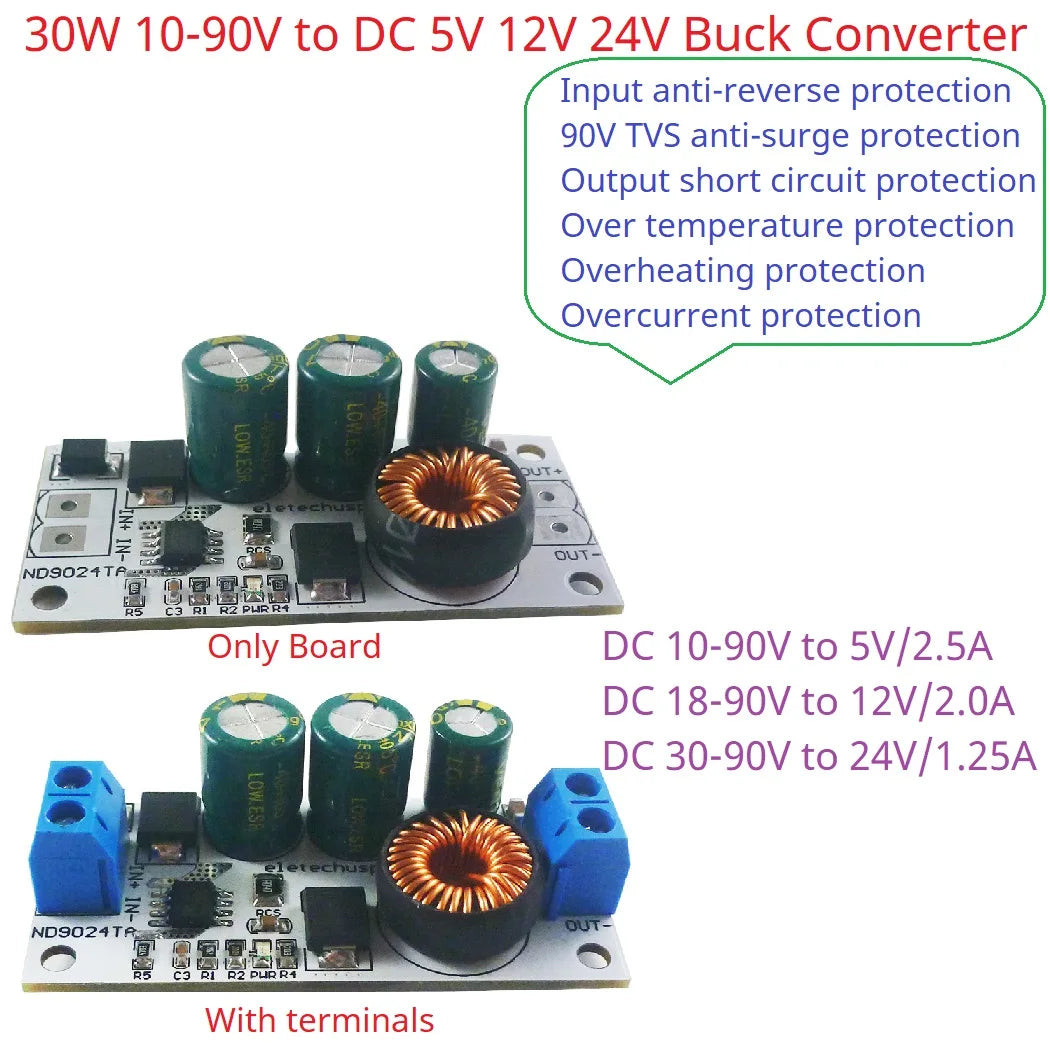

Multiple protections to ensure the safety of electricity use
Input anti-reverse protection
90V TVS anti-surge protection
Output short circuit protection
Over temperature protection
Overheating protection
Overcurrent protection

The maximum 30W output refers to the power when 24V outputs 1.25A

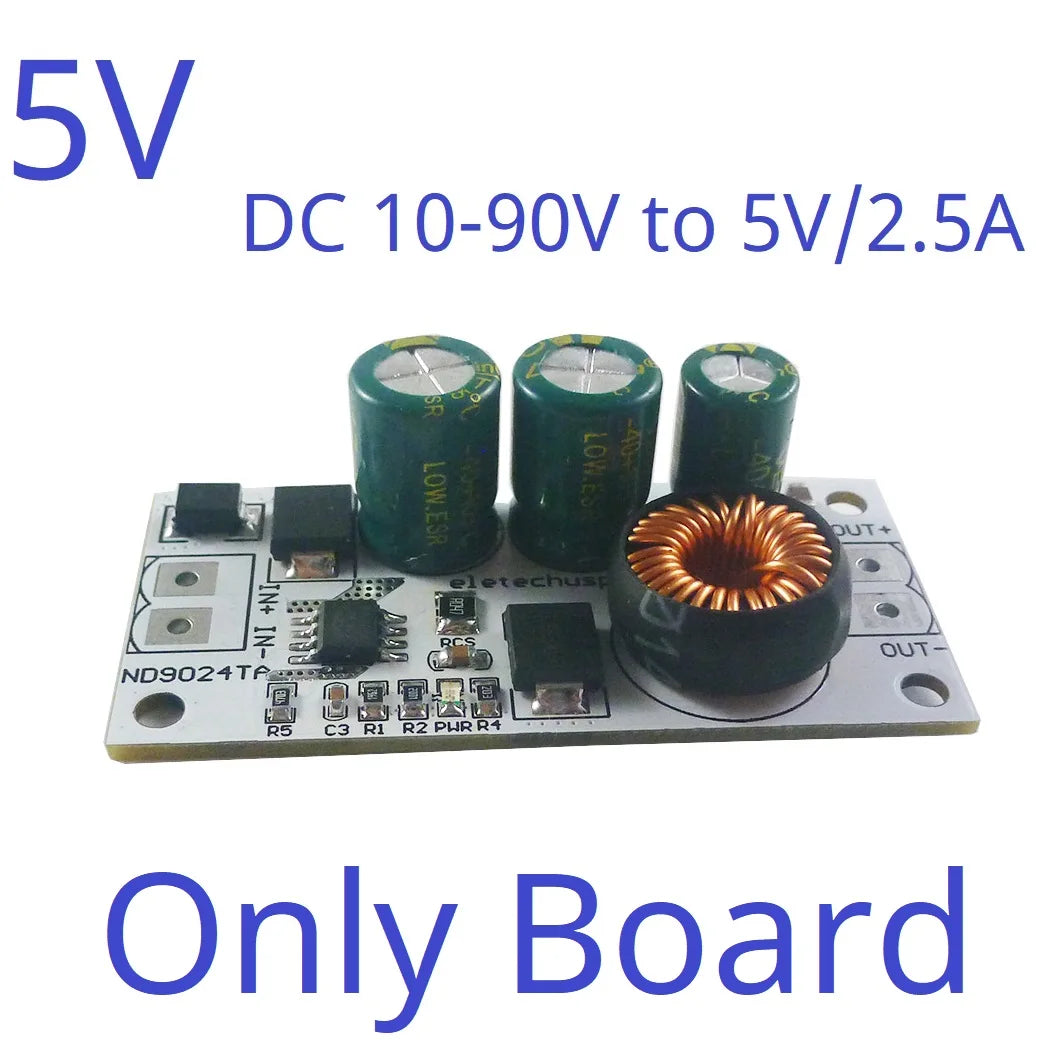

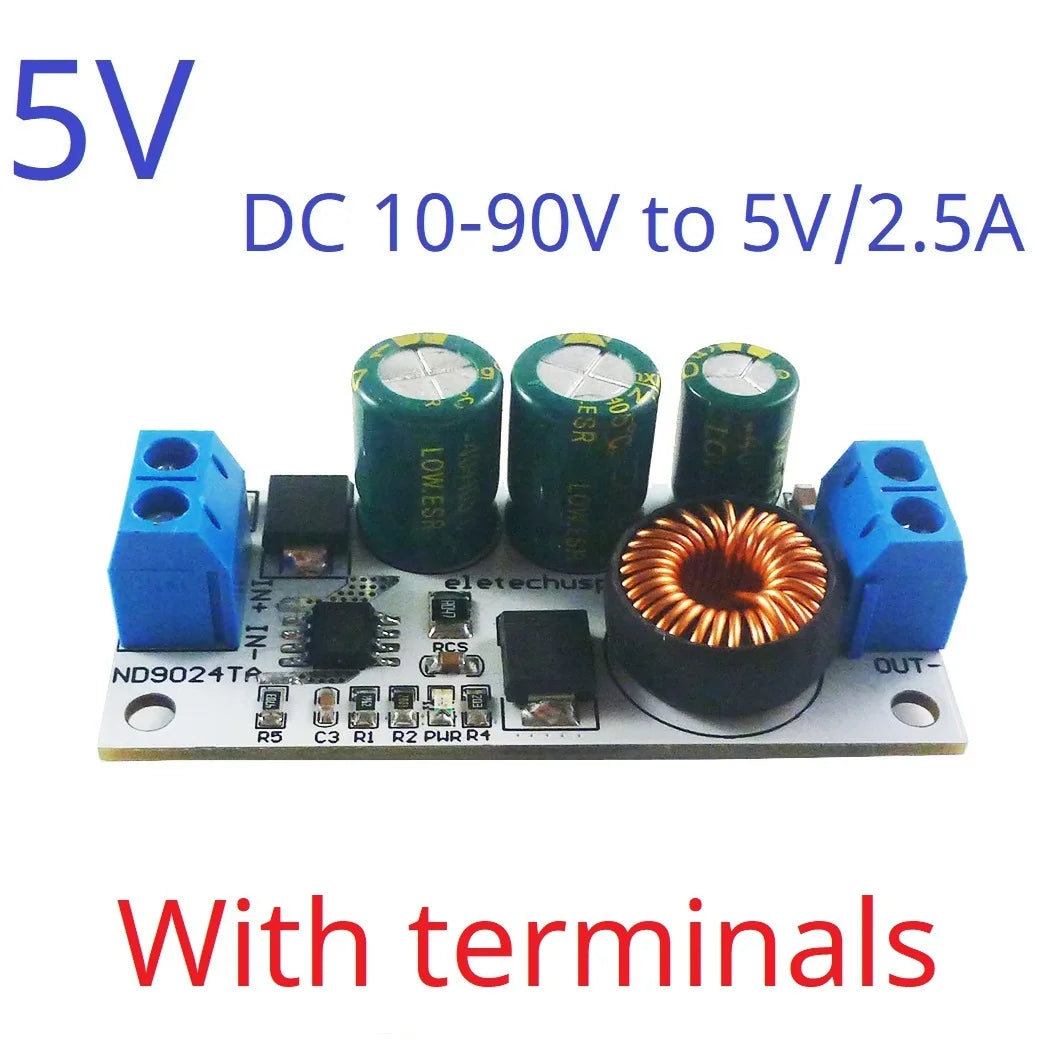

5V :

Input voltage 10~90V,output 5V
Maximum output current 2.5A
DC-DC high-voltage Step-Down Converter module working frequency 110KHz.
Maximum conversion efficiency is 92% .
Quiescent current: about 2.3mA
Operating Temperature : –45°C to +125°C
Size : 55 x 26.5 x 16mm
Weight : With terminal 17g;No terminal 14g

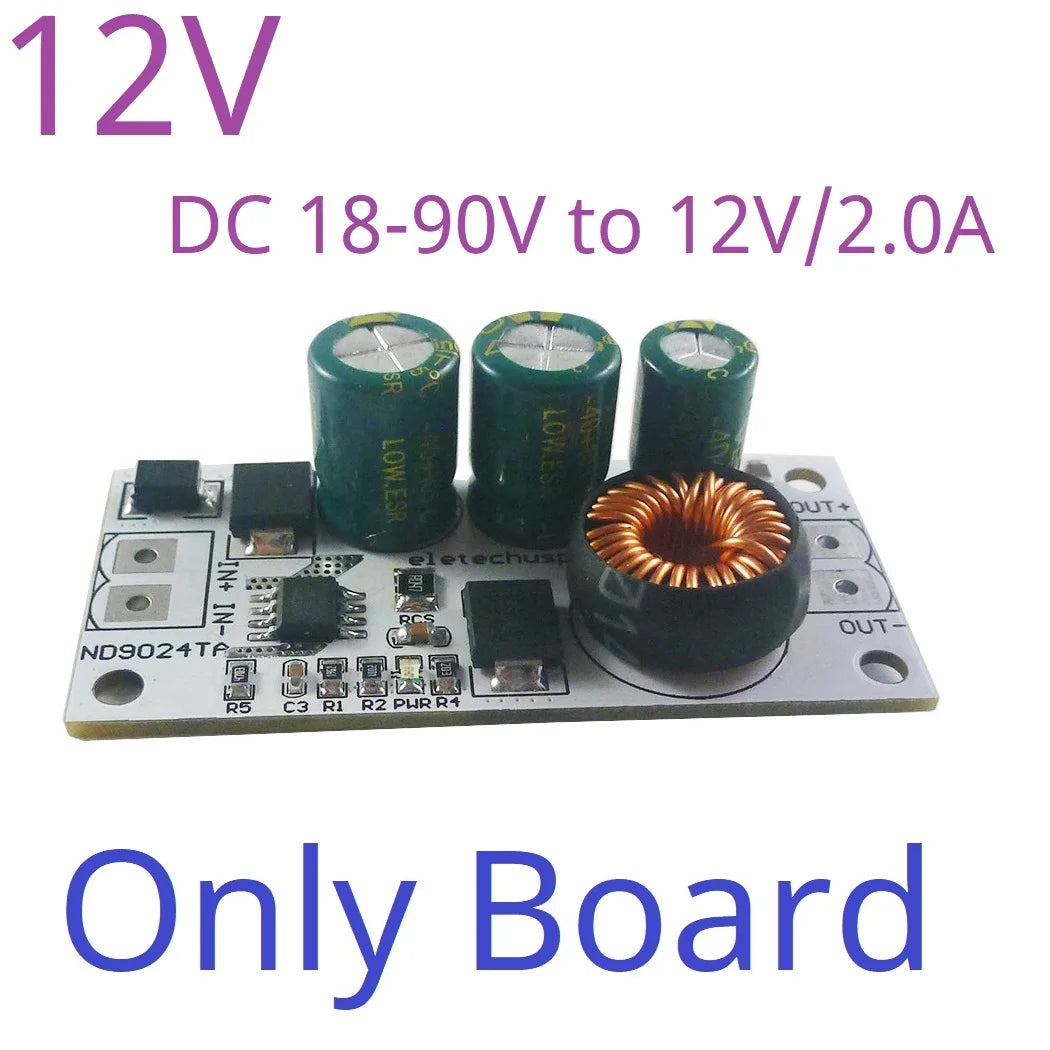

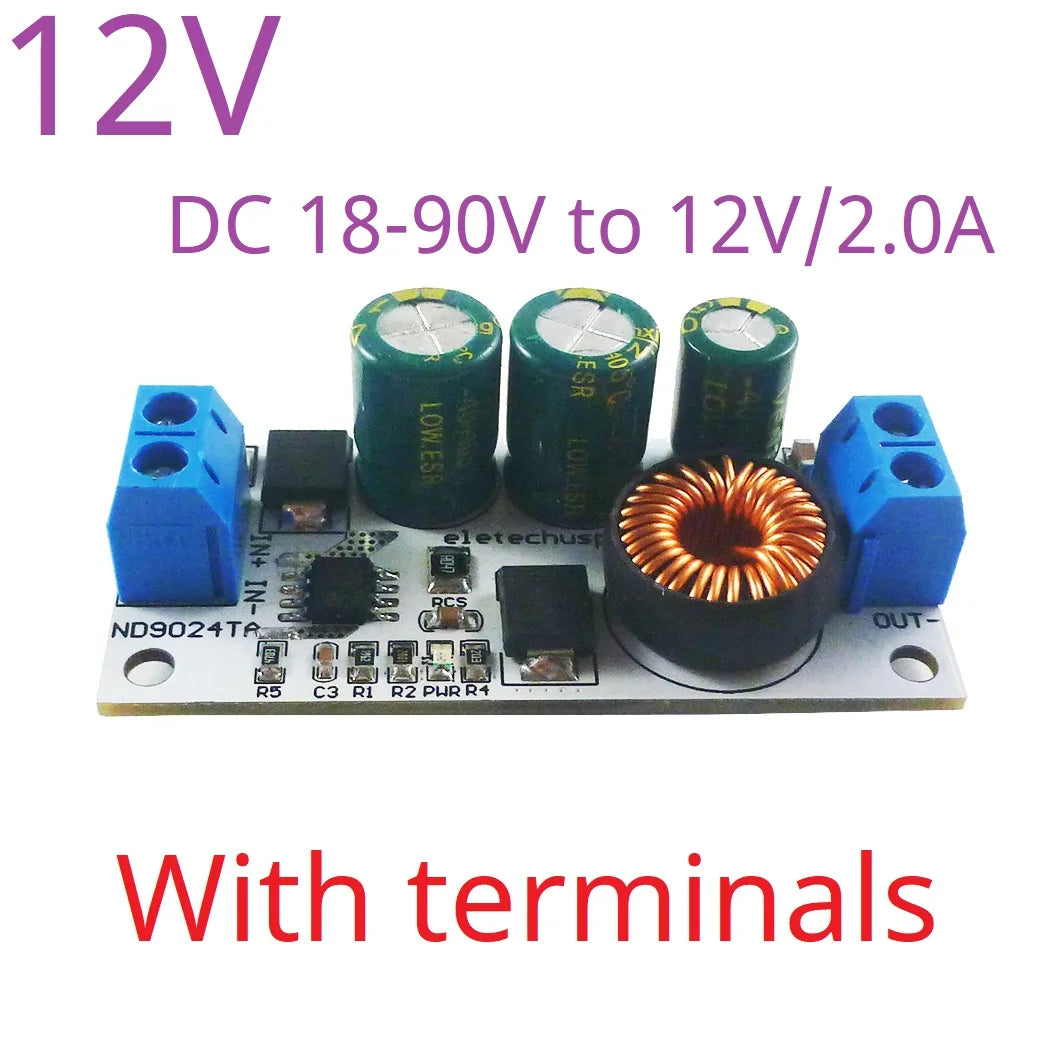

12V :

Input voltage 18~90V,output 12V
Maximum output current 2A
DC-DC high-voltage Step-Down Converter module working frequency 110KHz.
Maximum conversion efficiency is 92% .
Quiescent current: about 2.4mA
Operating Temperature : –45°C to +125°C
Size : 55 x 26.5 x 16mm
Weight : With terminal 17g;No terminal 14g

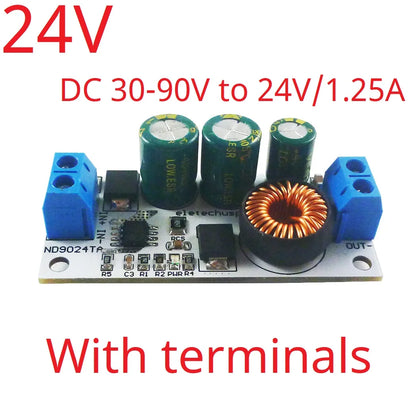

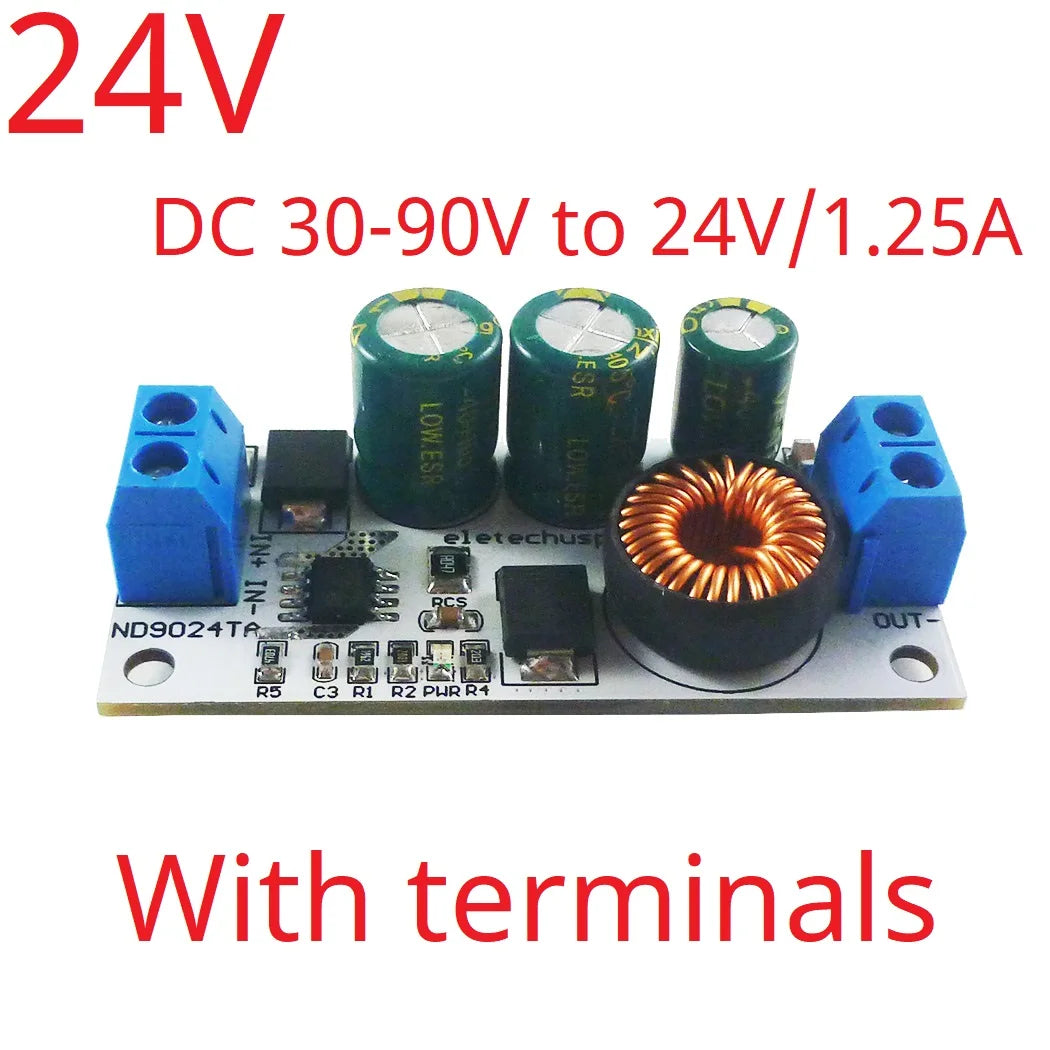

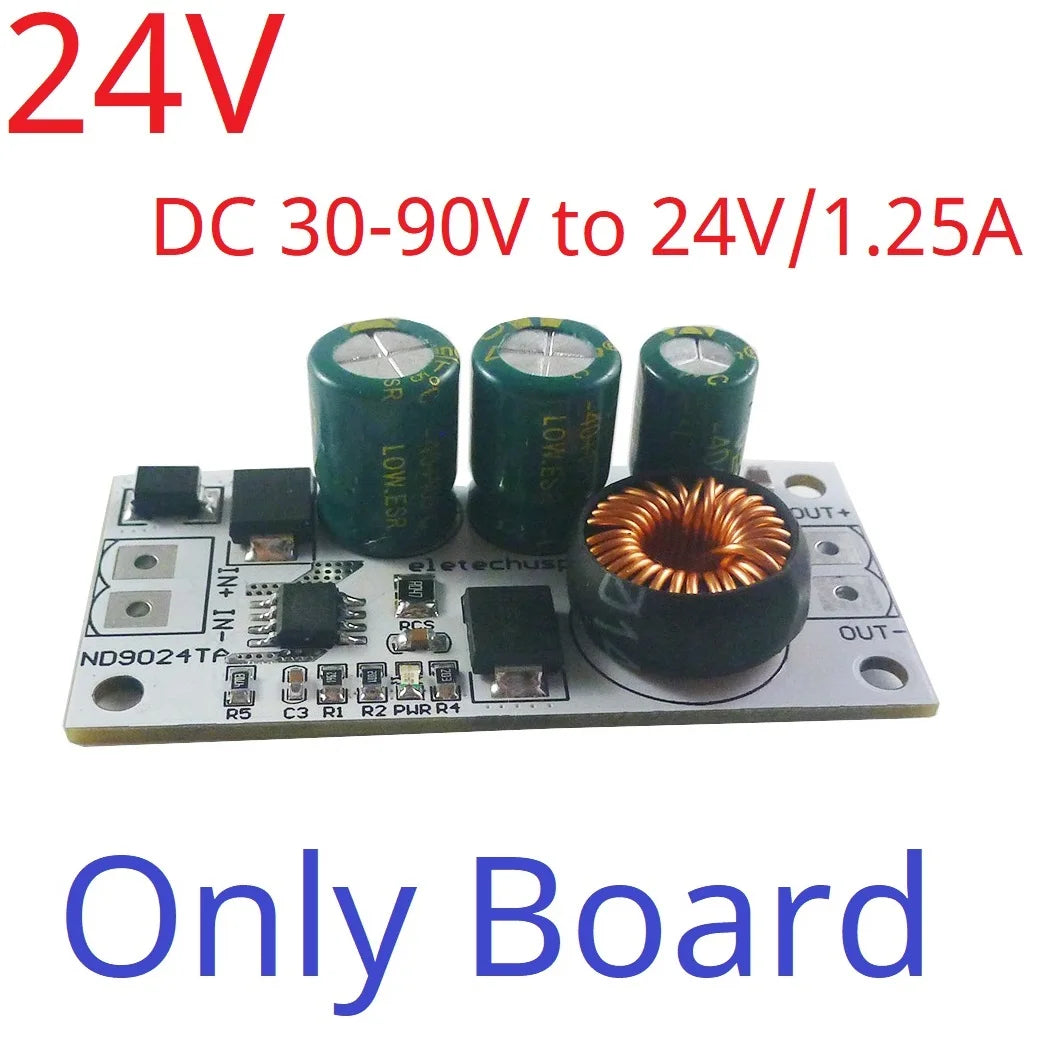

24V :

Input voltage 30~90V,output 24V
Maximum output current 1.25A(30W)
DC-DC high-voltage Step-Down Converter module working frequency 110KHz.
Maximum conversion efficiency is 92% .
Quiescent current: about 2.4mA
Operating Temperature : –45°C to +125°C
Size : 55 x 26.5 x 16mm
Weight : With terminal 17g;No terminal 14g

Attention :

This is a high voltage DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
4 When the input voltage is greater than 30V, please connect the wires first and then power on.

Applications:

Electric bicycle EBike motorcycle

DC 90V 72V 64V 60V 48V 36V 24V

CCTV PTZ camera

RS485 Modbus equipment

Motor Toy
Wifi Router

Network equipment

Multimeter instrumentation

Electric toys

Smart home / home automation

Lion Lipo LiFePO4 Lead-acid Solar battery

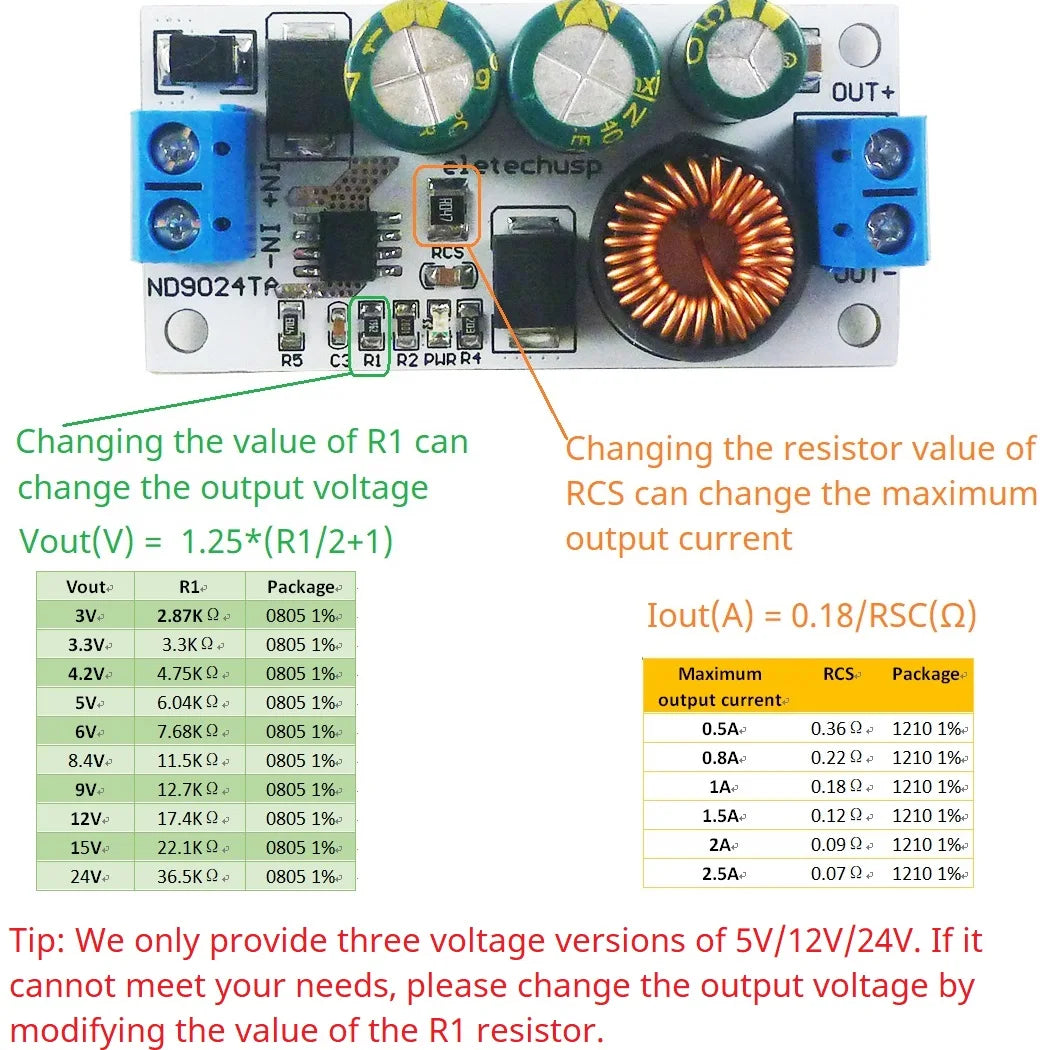

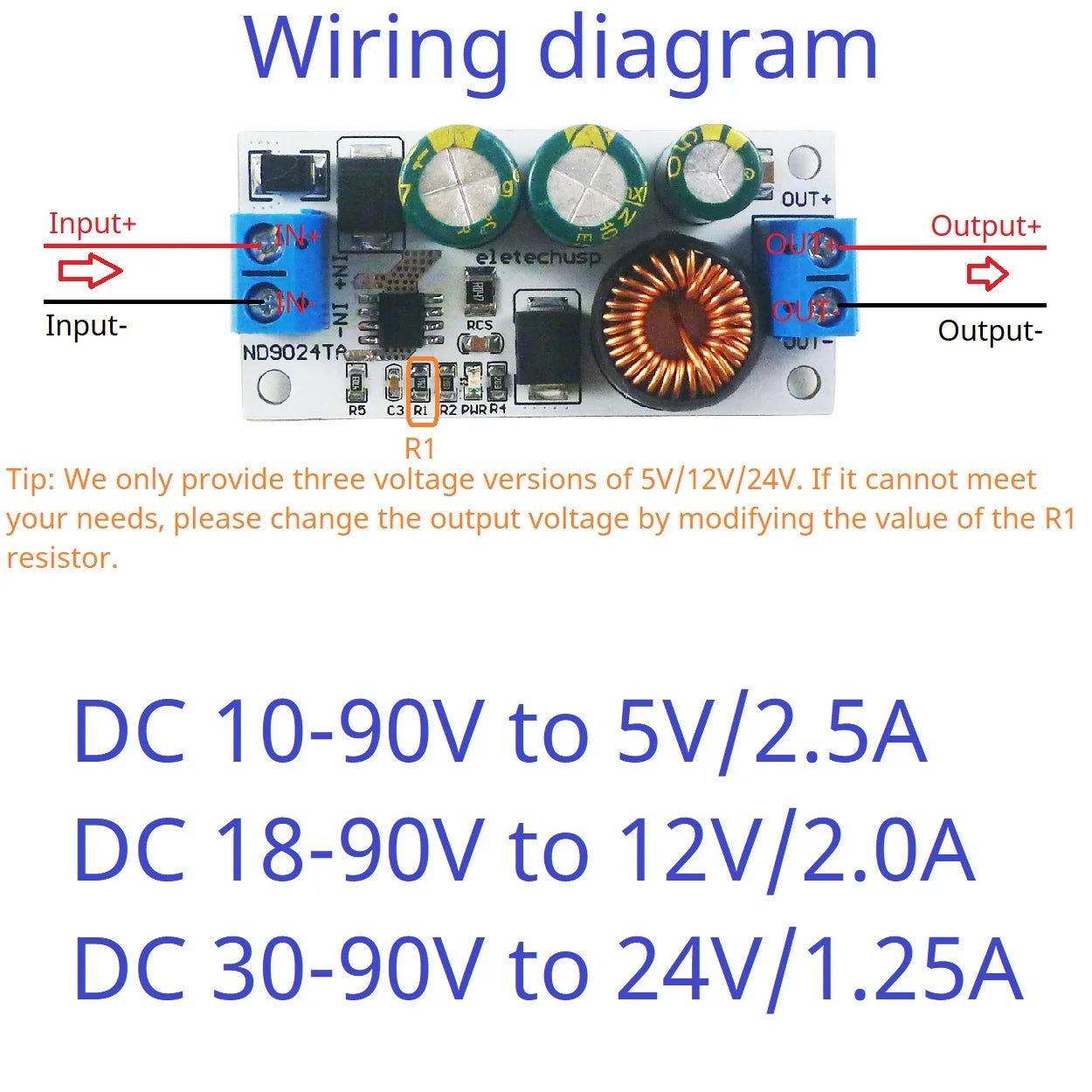

Tip: We only provide three voltage versions of 5V/12V/24V. If it cannot meet your needs, please change the output voltage by modifying the value of the R1 resistor.
