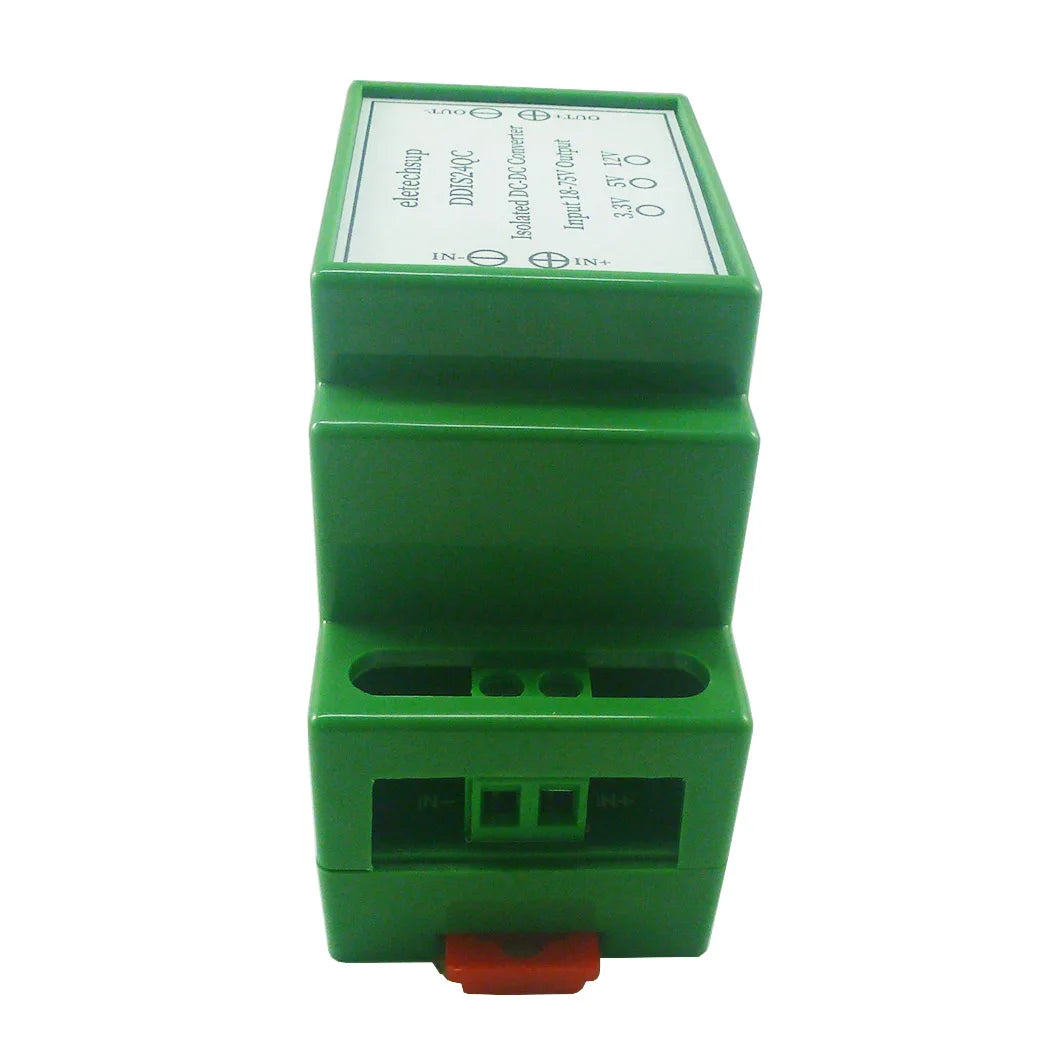

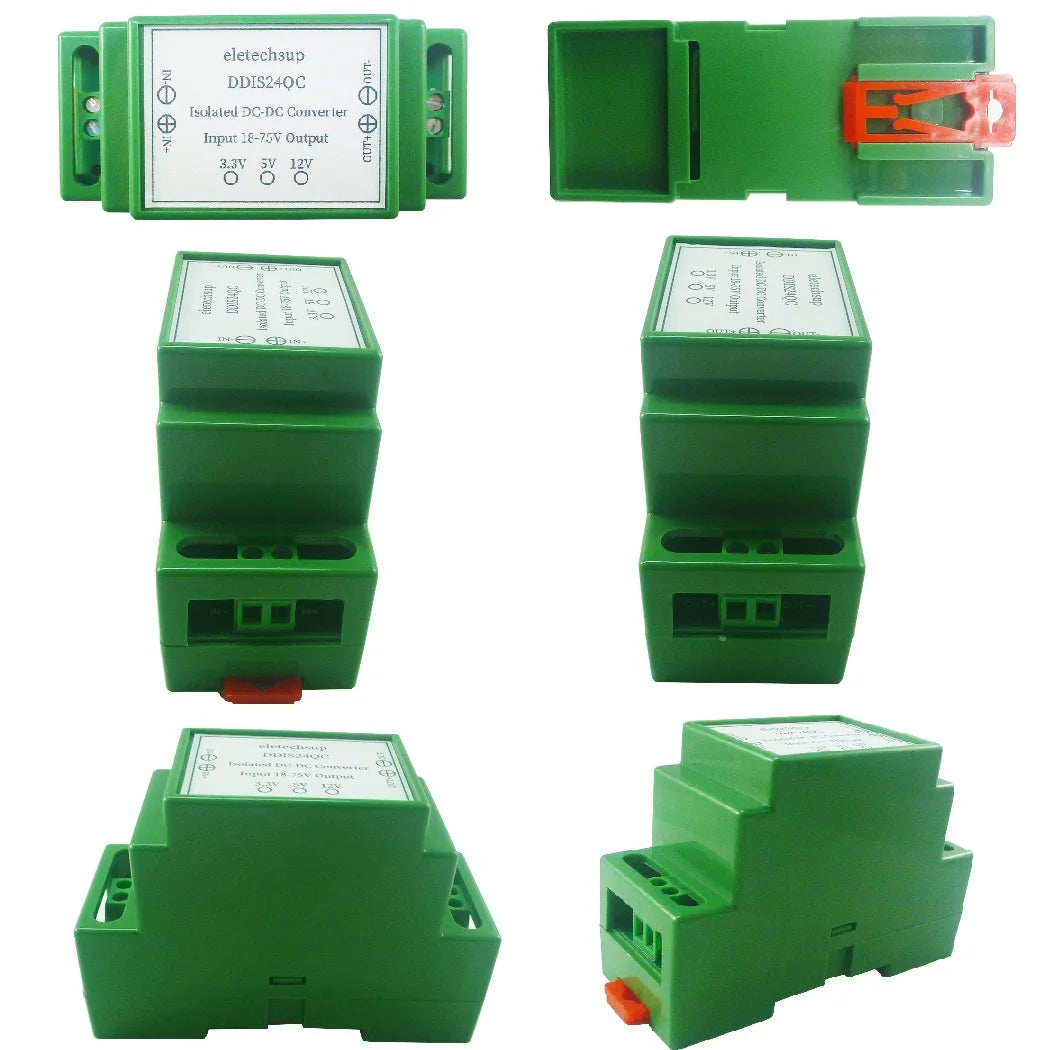

DDIS24QC 18-75V to 12V/5V/3.3V 3A Isolated DC-DC Converter – Industrial DIN Rail Power Supply with UVLO OCP OVP OTP Protection

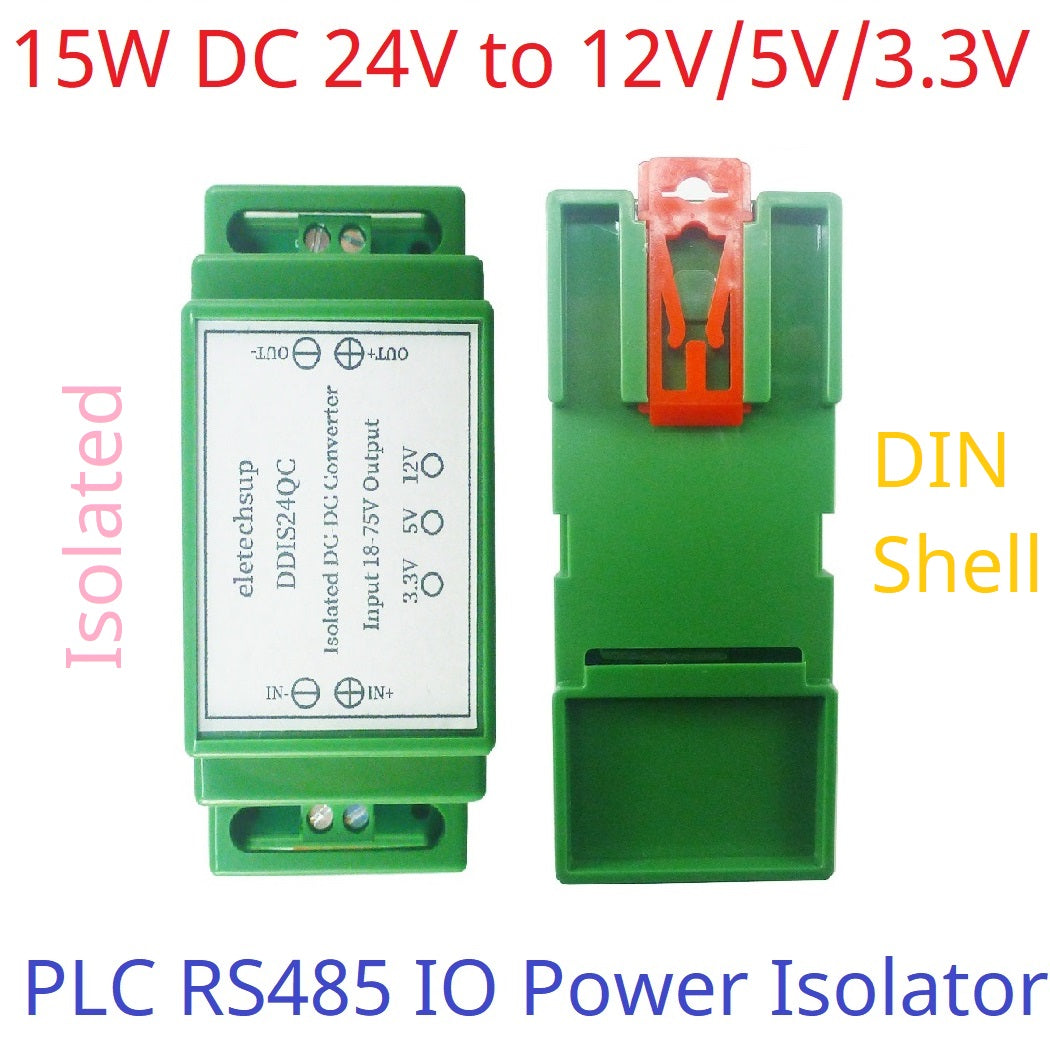

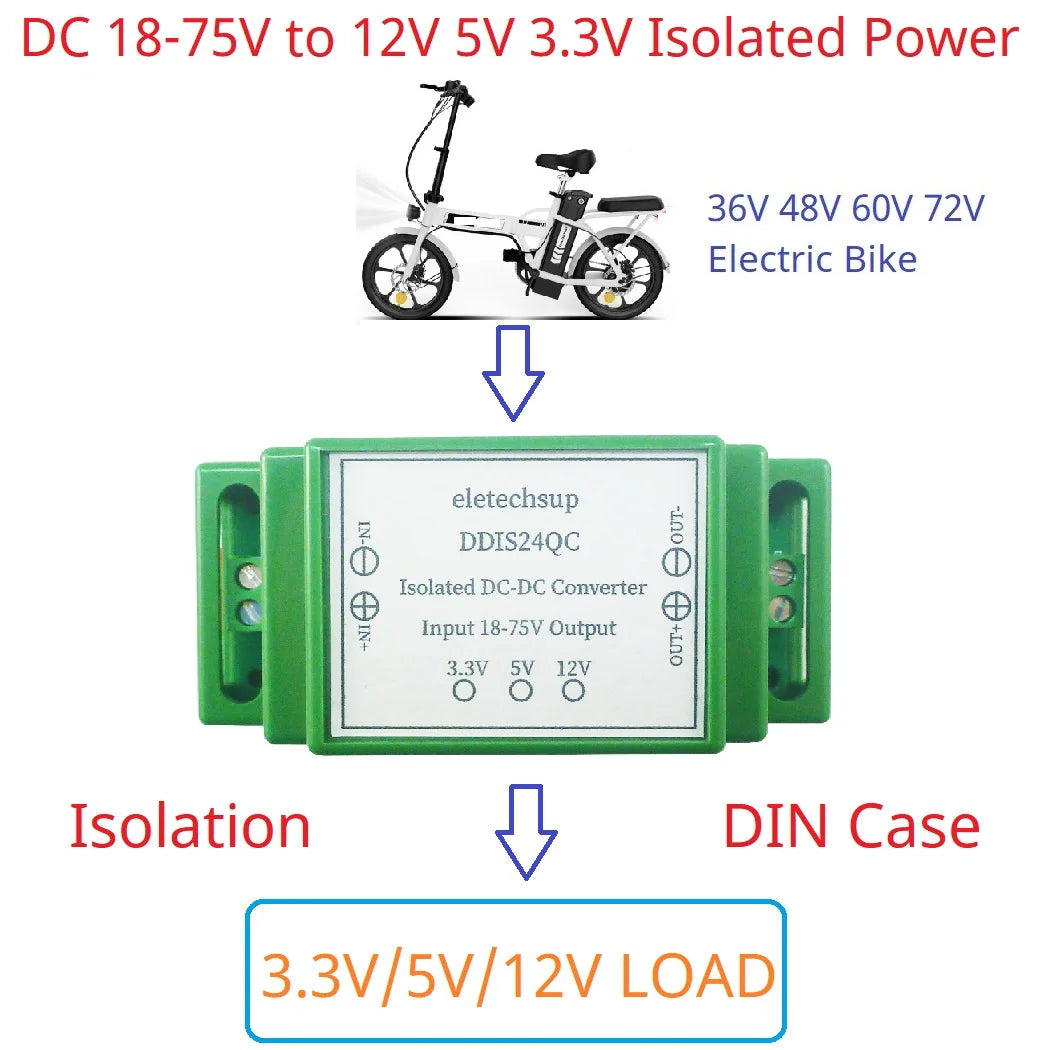

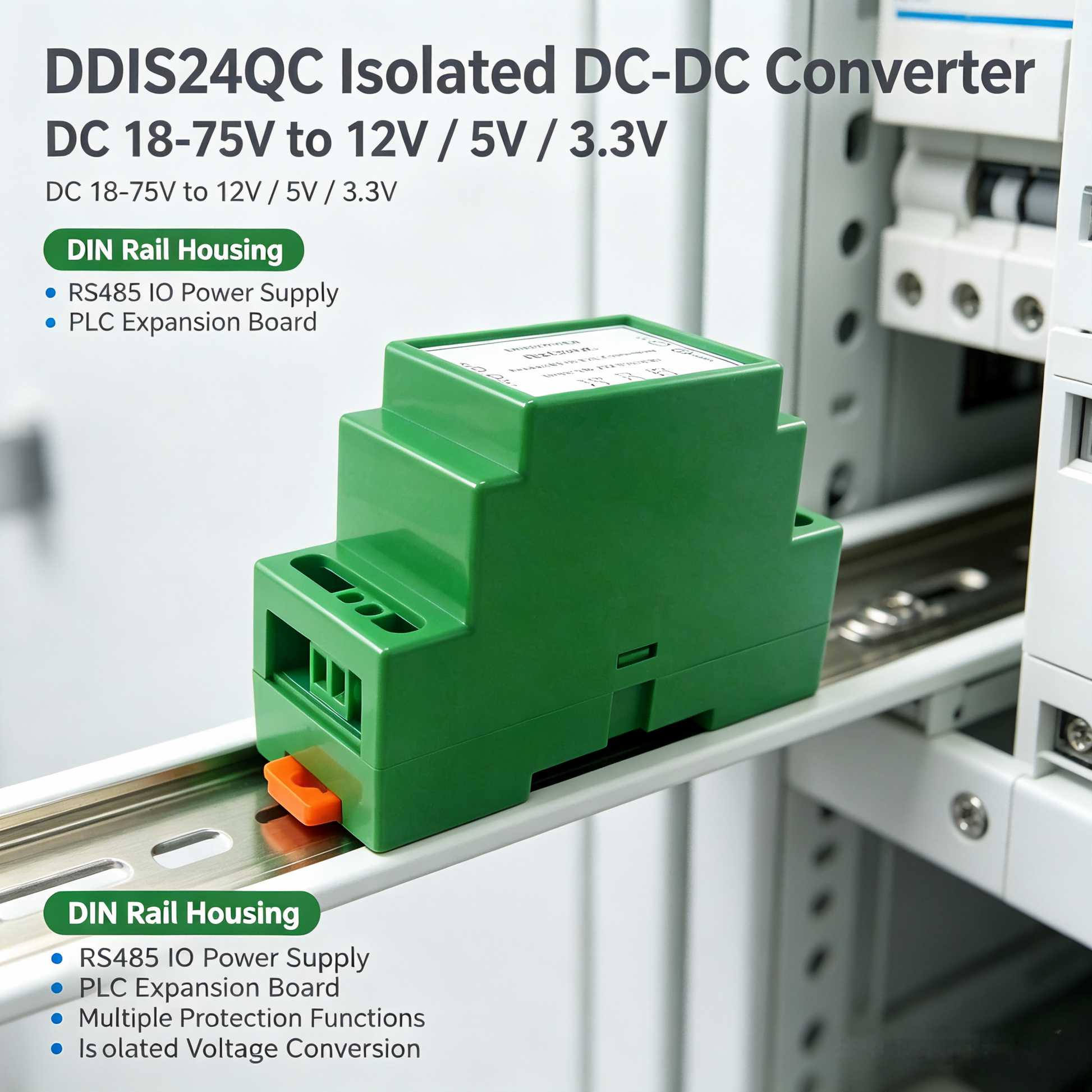

DDIS24QC is a DC 18-75V to 12V/5V/3.3V isolated DC DC converter designed and produced by eletechsup. It has various protection functions and comes with a DIN rail housing. Is an ideal PLC expansion board RS485 IO power supply device

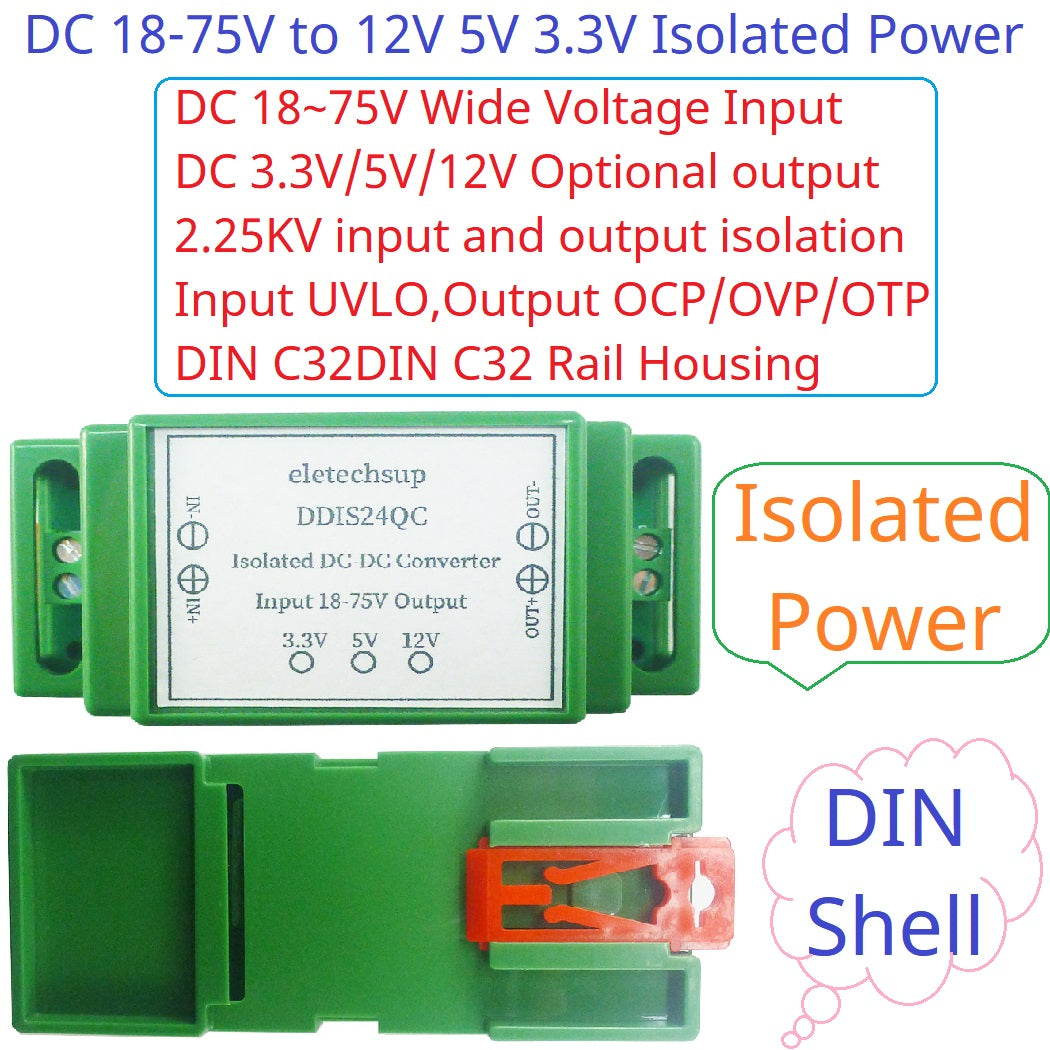

Features:




DC 18~75V Wide Voltage Input
DC 3.3V/5V/12V Optional output
2.25KV input and output isolation
Input UVLO,Output OCP/OVP/OTP
DIN C32 Rail Housing

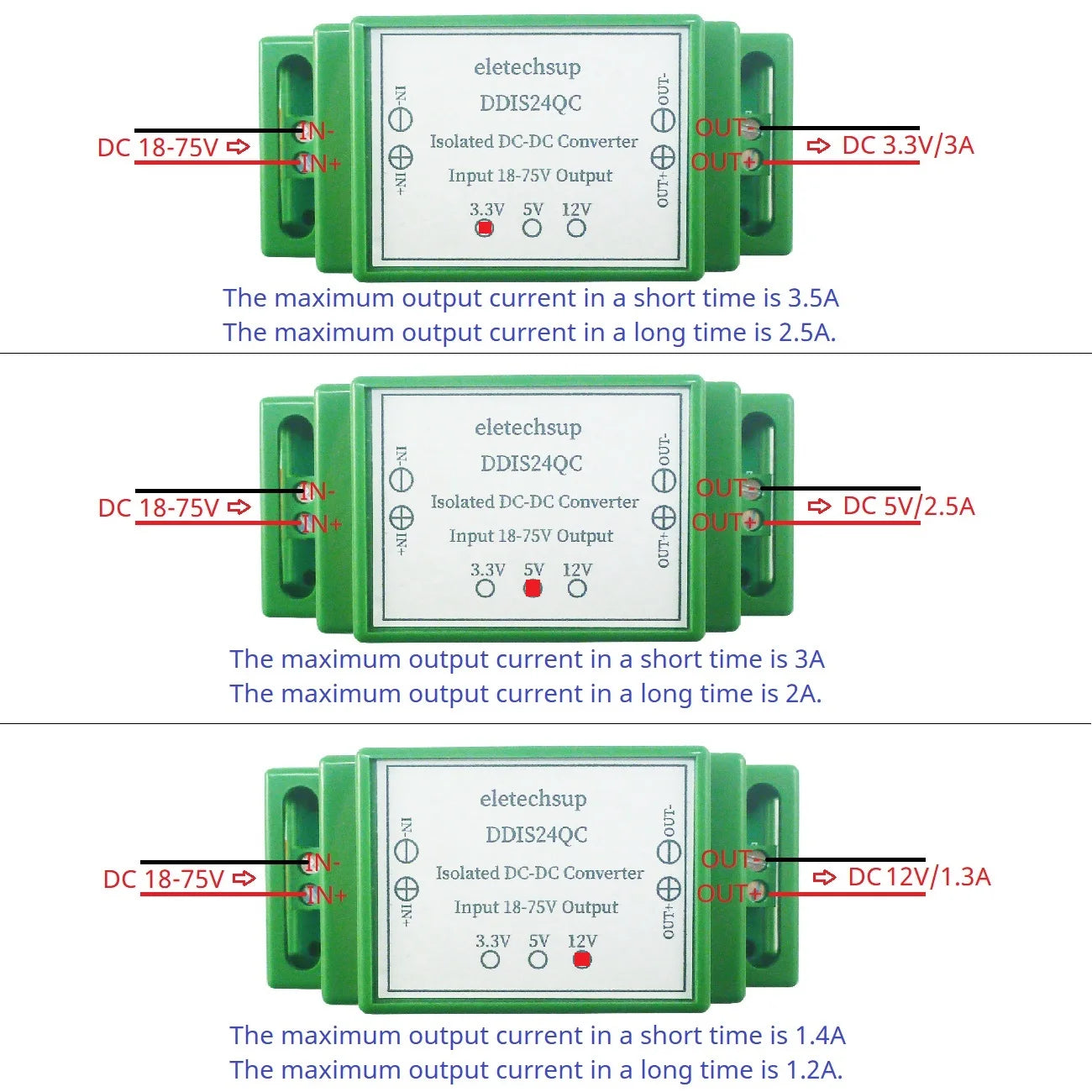

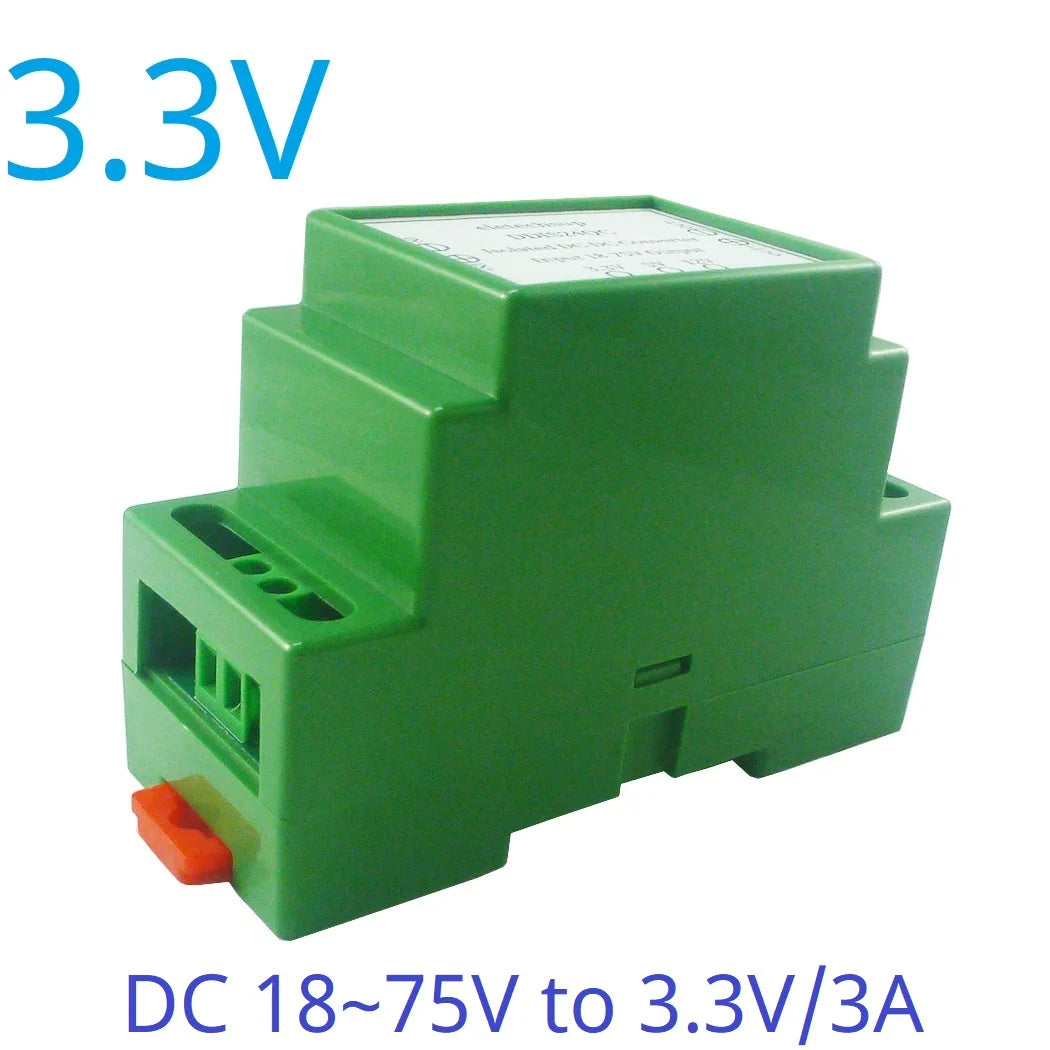

3.3V Version:

Input DC 18~75V,3.3V isolated output

The maximum output current in a short time is 3.5A

The maximum output current in a long time is 2.5A.

Switching Frequency 450 kHZ

High efficiency : 85% @ 3.3V/2.5A

Input UVLO,Output OCP/OVP/OTP

2250V isolation and basic insulation

No minimum load required

Operating Temperature :–40°C to +105°C

Size : 87 x 59 x 35mm

Weight : 60g

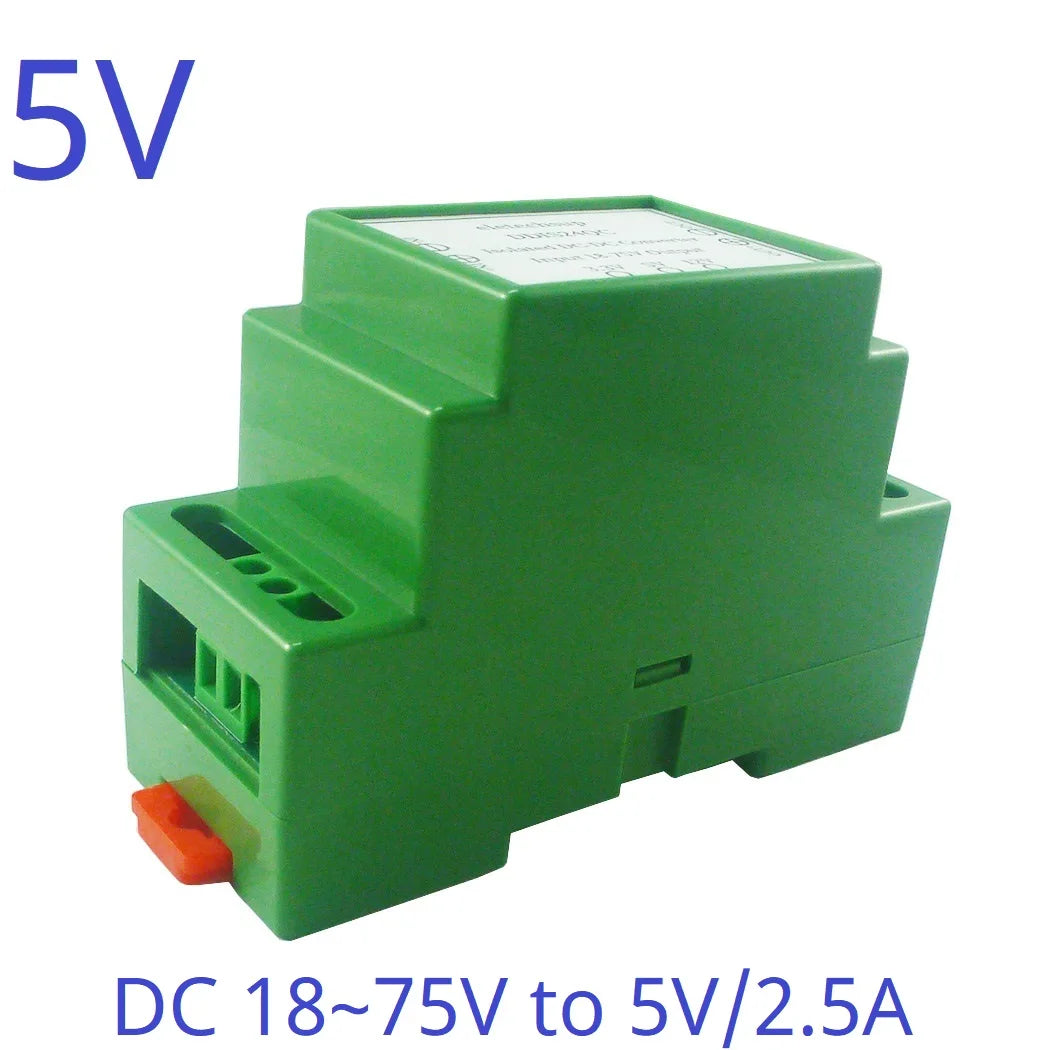

5V Version:

Input DC 18~75V,5V isolated output
The maximum output current in a short time is 3A
The maximum output current in a long time is 2A.
Switching Frequency 450 kHZ
High efficiency : 85% @ 5V/2A
Input UVLO,Output OCP/OVP/OTP
2250V isolation and basic insulation
No minimum load required
Operating Temperature :–40°C to +105°C
Size : 87 x 59 x 35mm
Weight : 60g

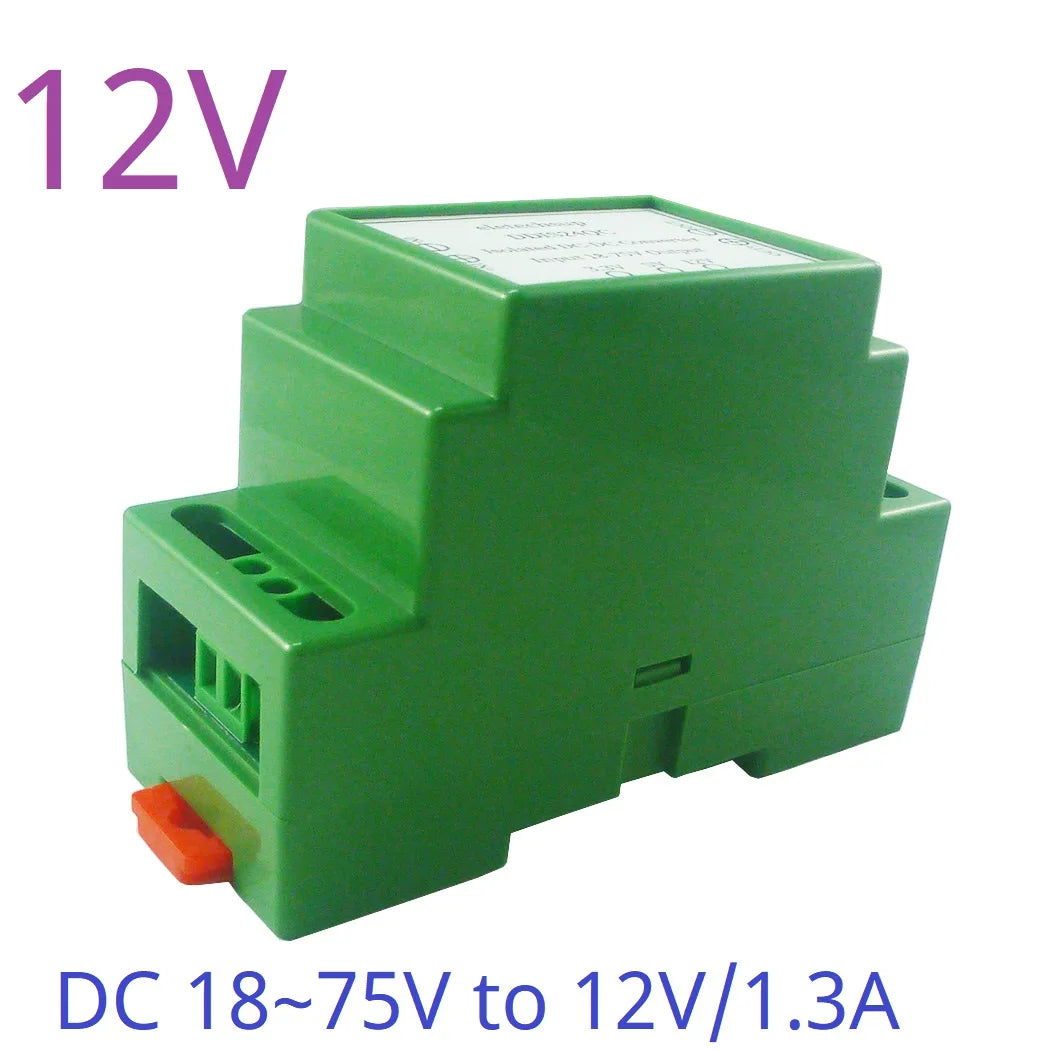

12V Version:

DC 18~75V Wide Voltage Input
DC 12V/1.3A isolated output
Switching Frequency 450 kHZ
High efficiency : 87% @ 12V/1.3A
Input UVLO,Output OCP/OVP/OTP
2250V isolation and basic insulation
No minimum load required
Operating Temperature :–40°C to +105°C
Size : 87 x 59 x 35mm
Weight : 58.5g
