Product Name: 1 to 8 Ethernet Network RJ45 to 8 Port RS485 HUB Converter for UDP TCP Modbus TCP RTU MQTT HTTP PLC Configuration Software
Package inlcuded:
1PCS ETHUB18 DC 8-30V 1 Ethernet to 8 RS485 HUB Module
Description:
Working voltage : DC 12V/24V (DC 7-30V)
Working current : 18-25mA
Work Mode: UDP,TCP,Modbus TCP to RTU,MQTT,HTTP

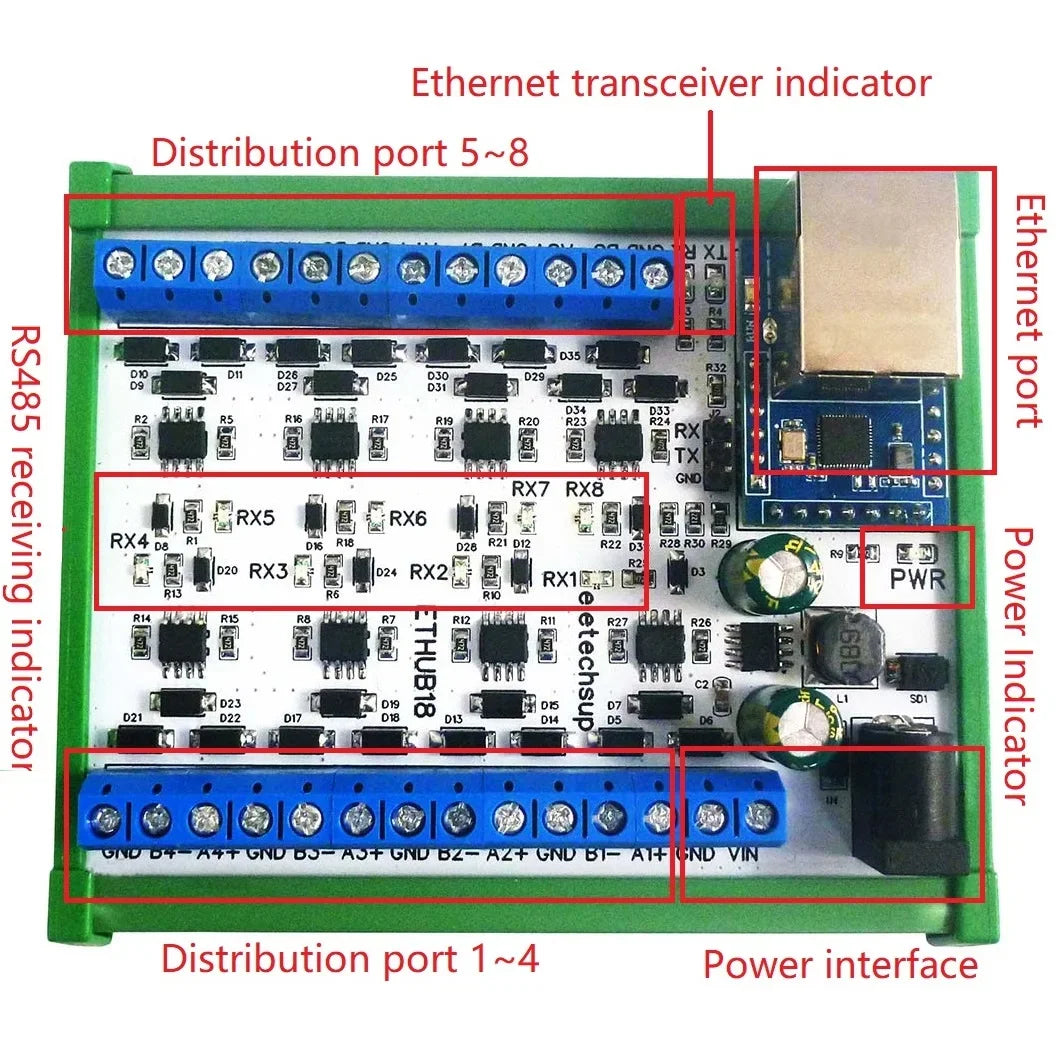

1 port Ethernet interface TO 8 port RS485 interface converter
TVS anti-surge protection
The default baud rate is 115200BPS. The baud rate can be selected by WEB settings
1200 2400 4800 9600 19200 38400 57600 115200 230400BPS
The parity can be none parity, even parity and odd parity

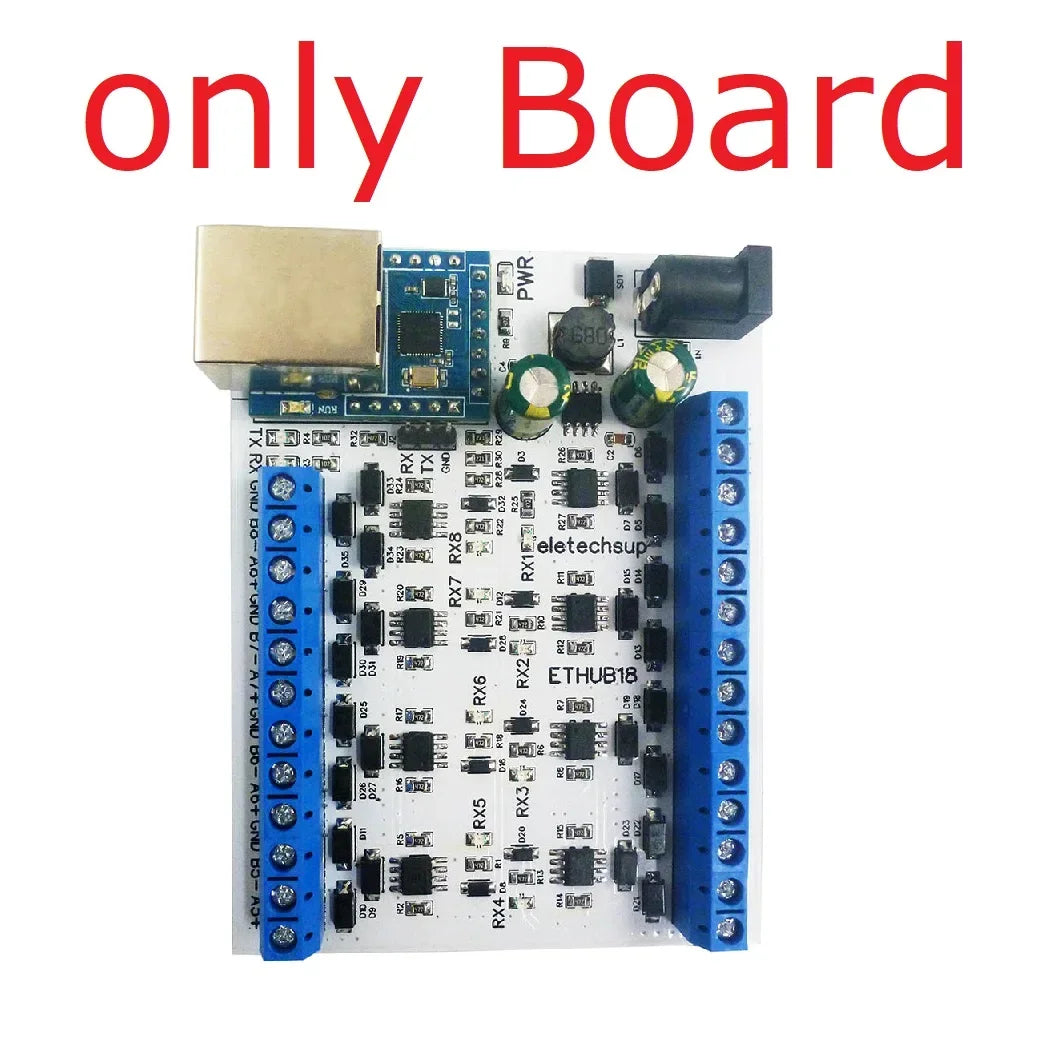

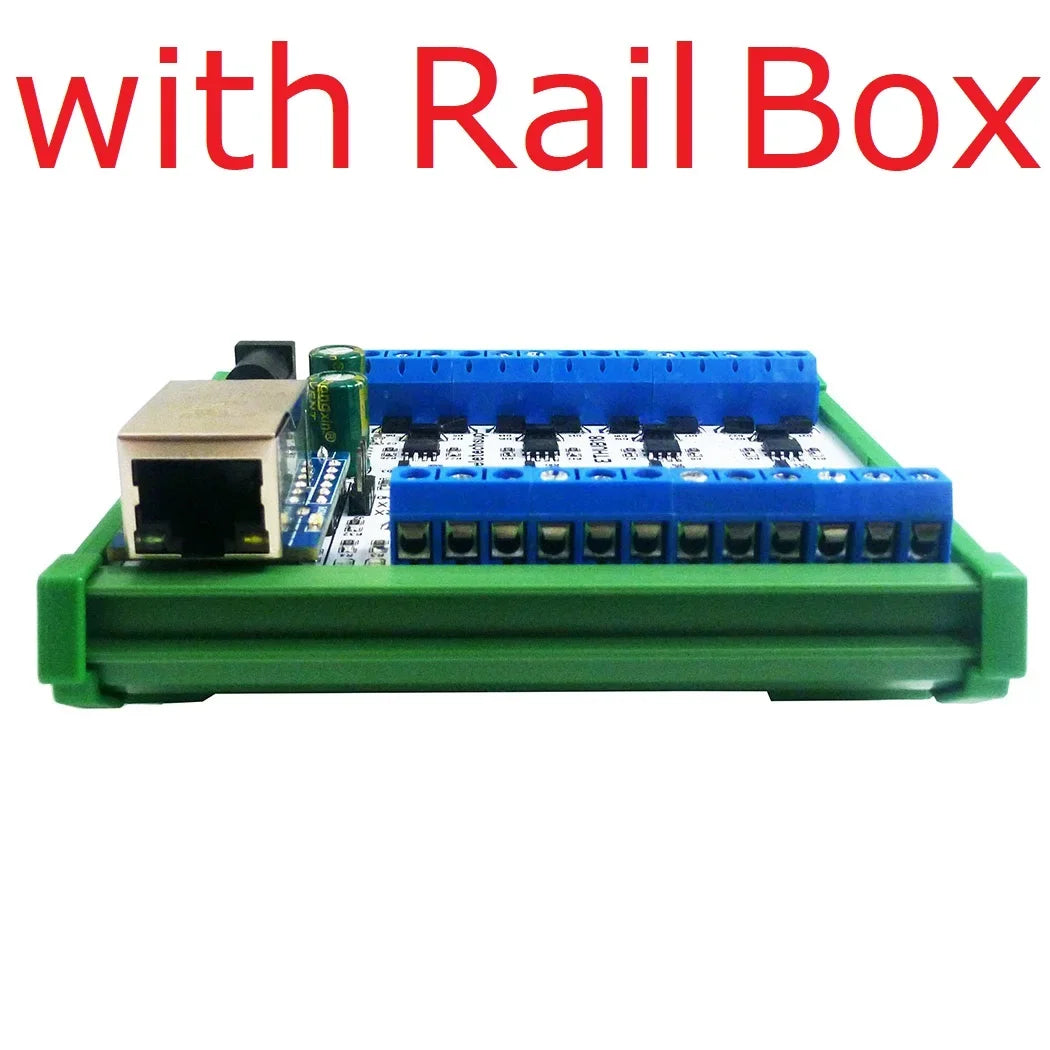

Size: 99mm*87mm*44mm(Only PCB Board);96mm*72mm*25mm(with Din Rail Box)
Weight: 62g(Only PCB Board);140g(with Din Rail Box)
For more information, please contact me
Application

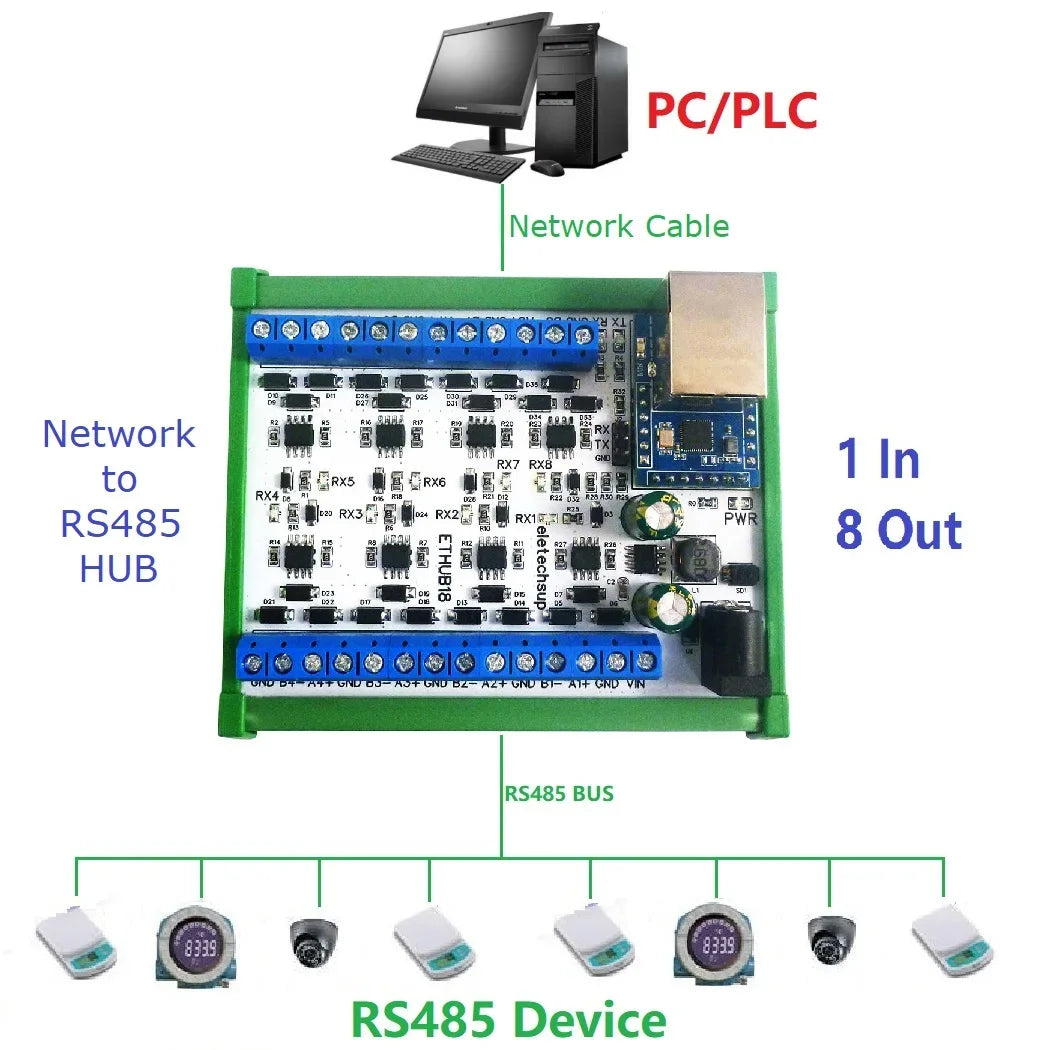

Ethernet to 8 port RS485

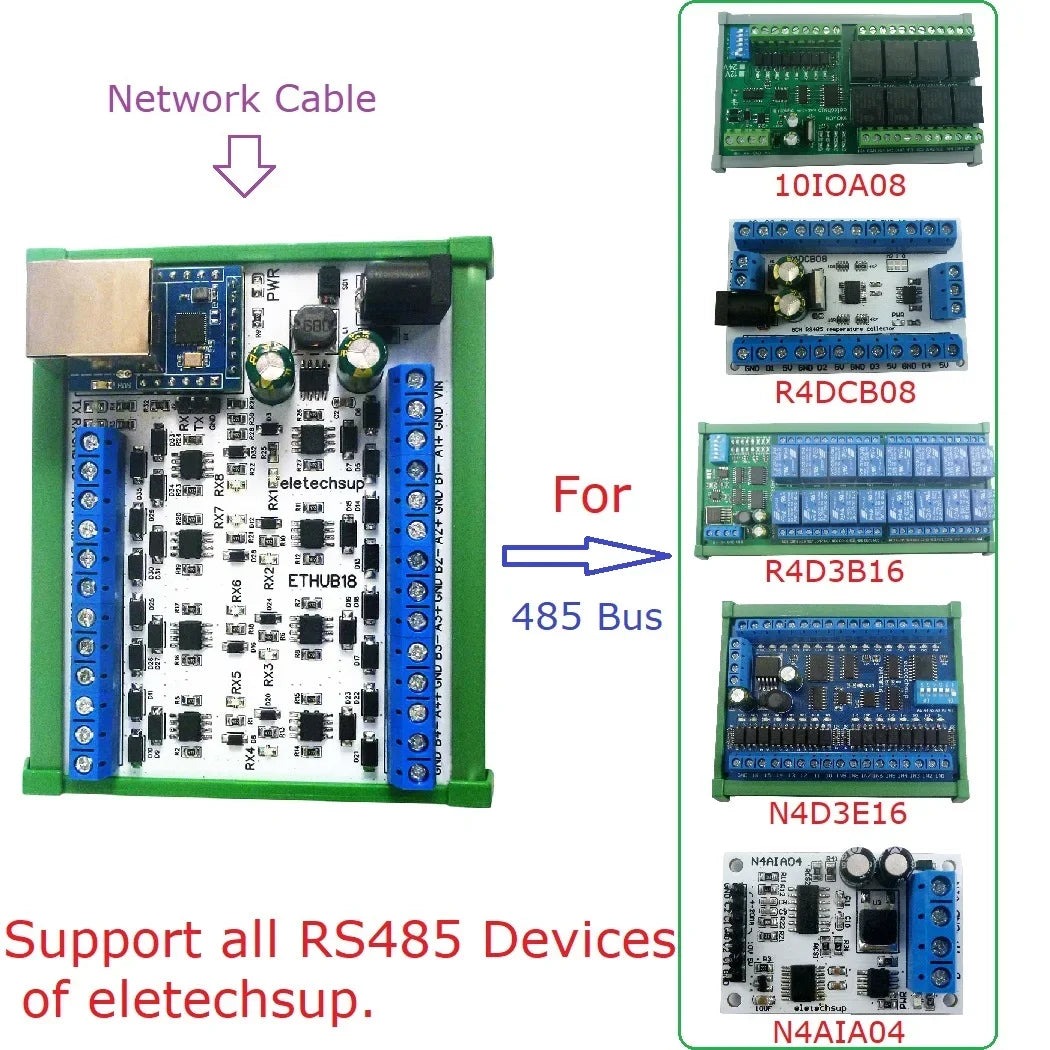

Support all RS485 devices of eletechsup, such as:
10IOA08/R4DCB08/R4D3B16/N4D3E16/N4AIA04
Smart Home,Home Automation ,Wiser Home;
Security Monitoring
Identification system;
IP Camera
LED Lamp Drivers
Automatic curtain control

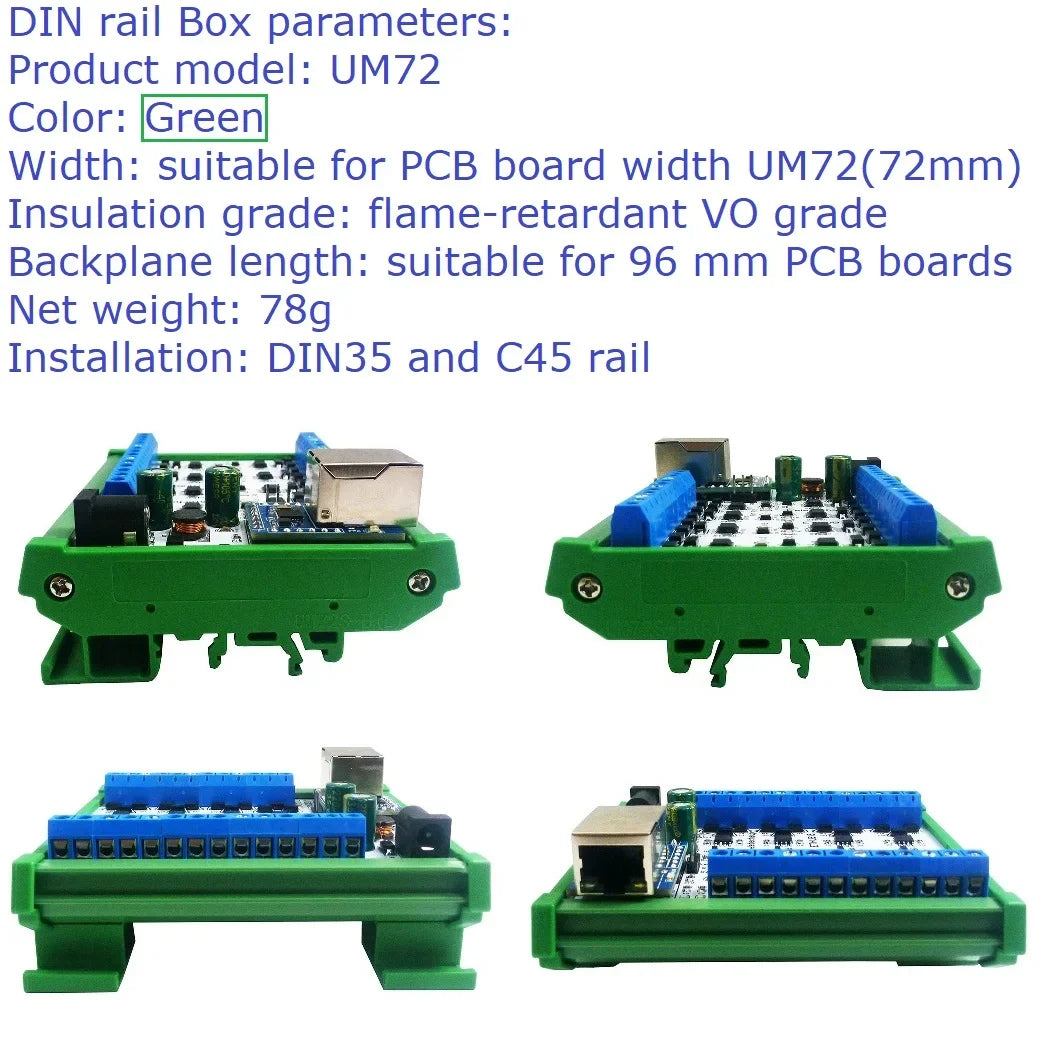

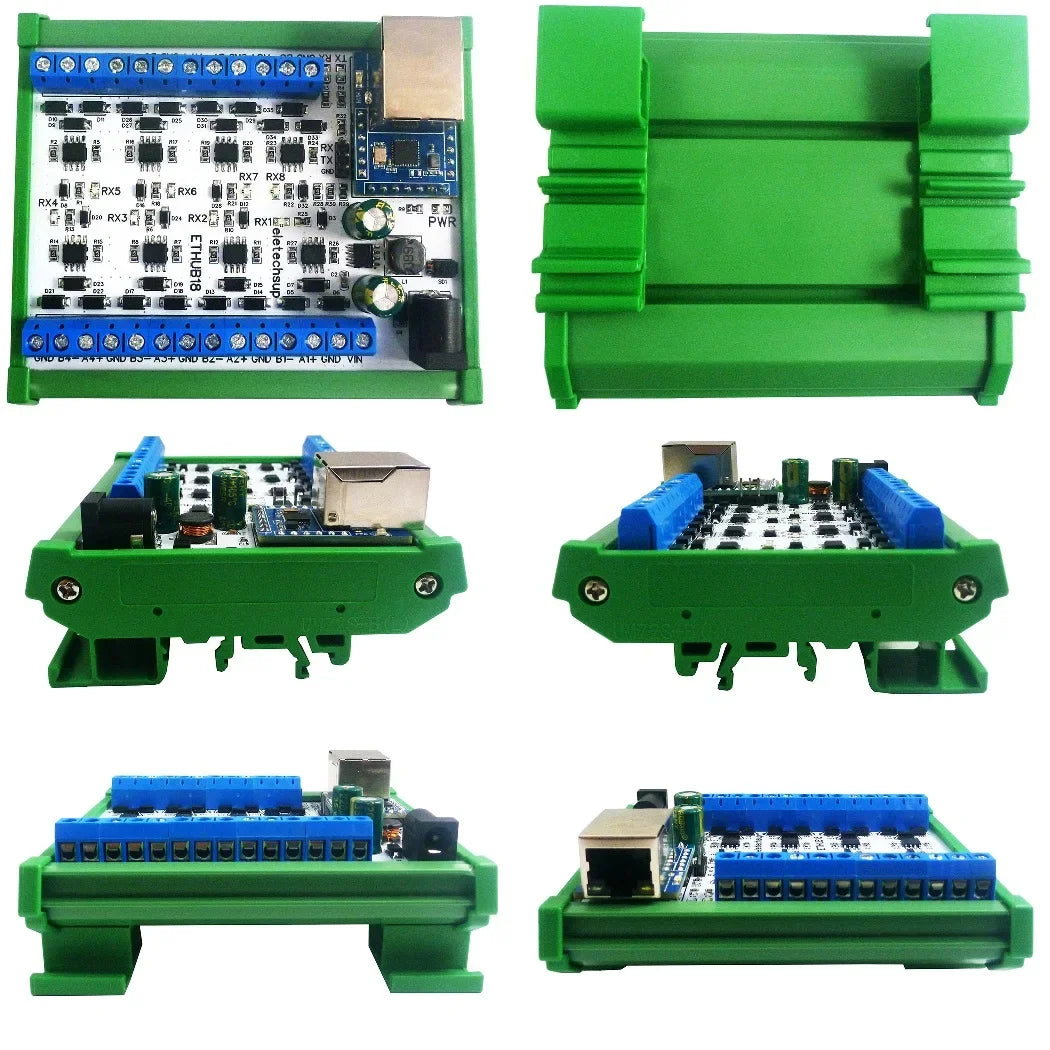

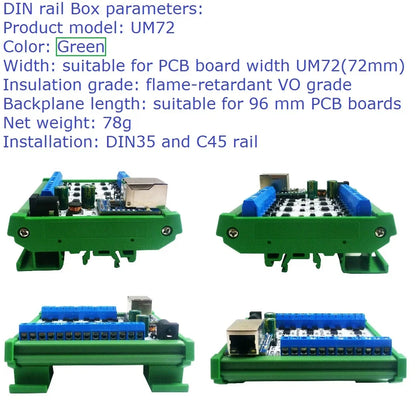

DIN rail Box parameters:
Product model: UM72
Color:
Green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 96 mm PCB boards
Net weight: 34g
Installation: DIN35 and C45 rail
