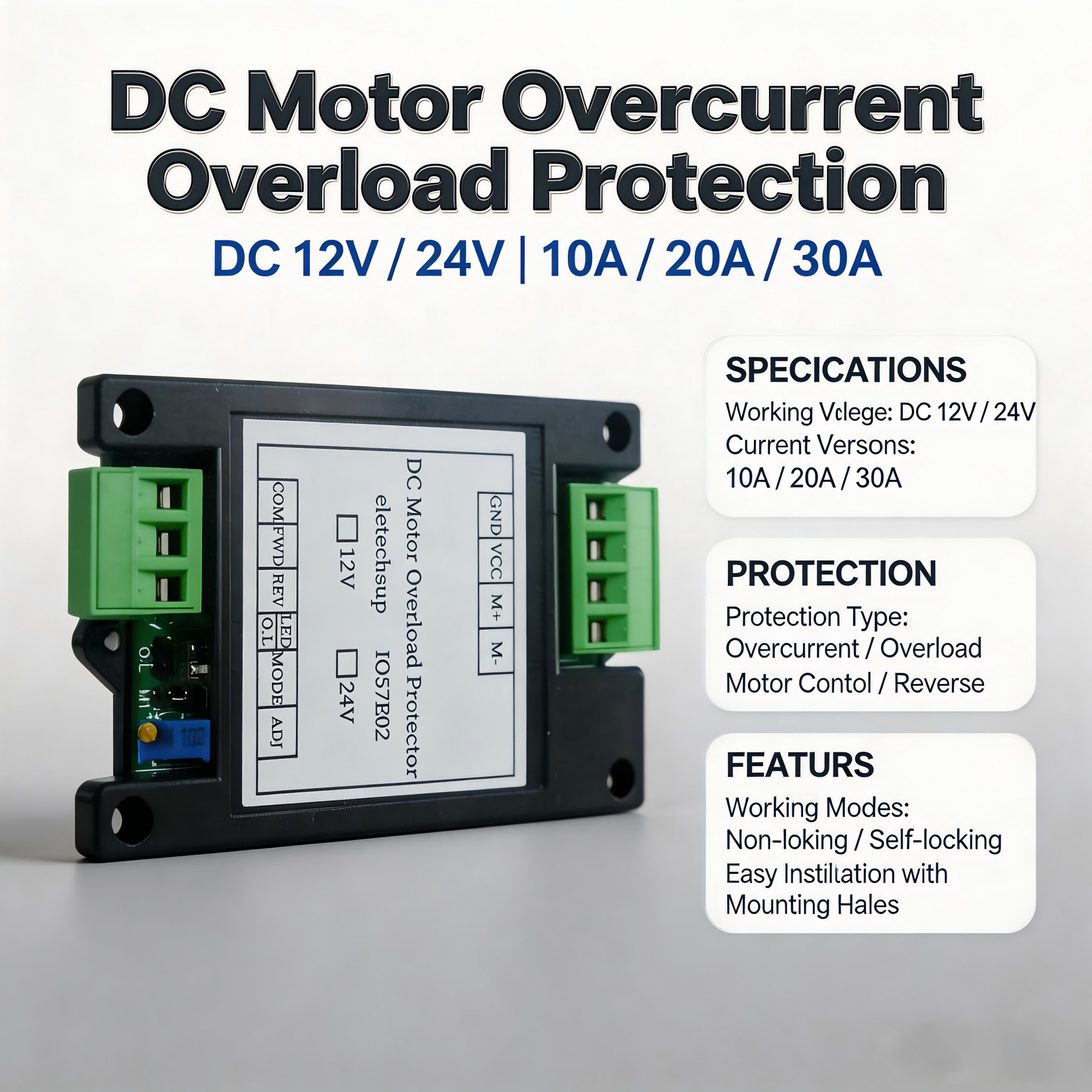

Product Name:10A 20A 30A DC 12V 24V Power Brushed Motor Overload Overcurrent Short Circuit Protector Module Forward Reverse Controller



Product Included:
1pcs DC 12V/24V 10A/20A/30A DC Motor Overcurrent Overload protection

Product parameters:

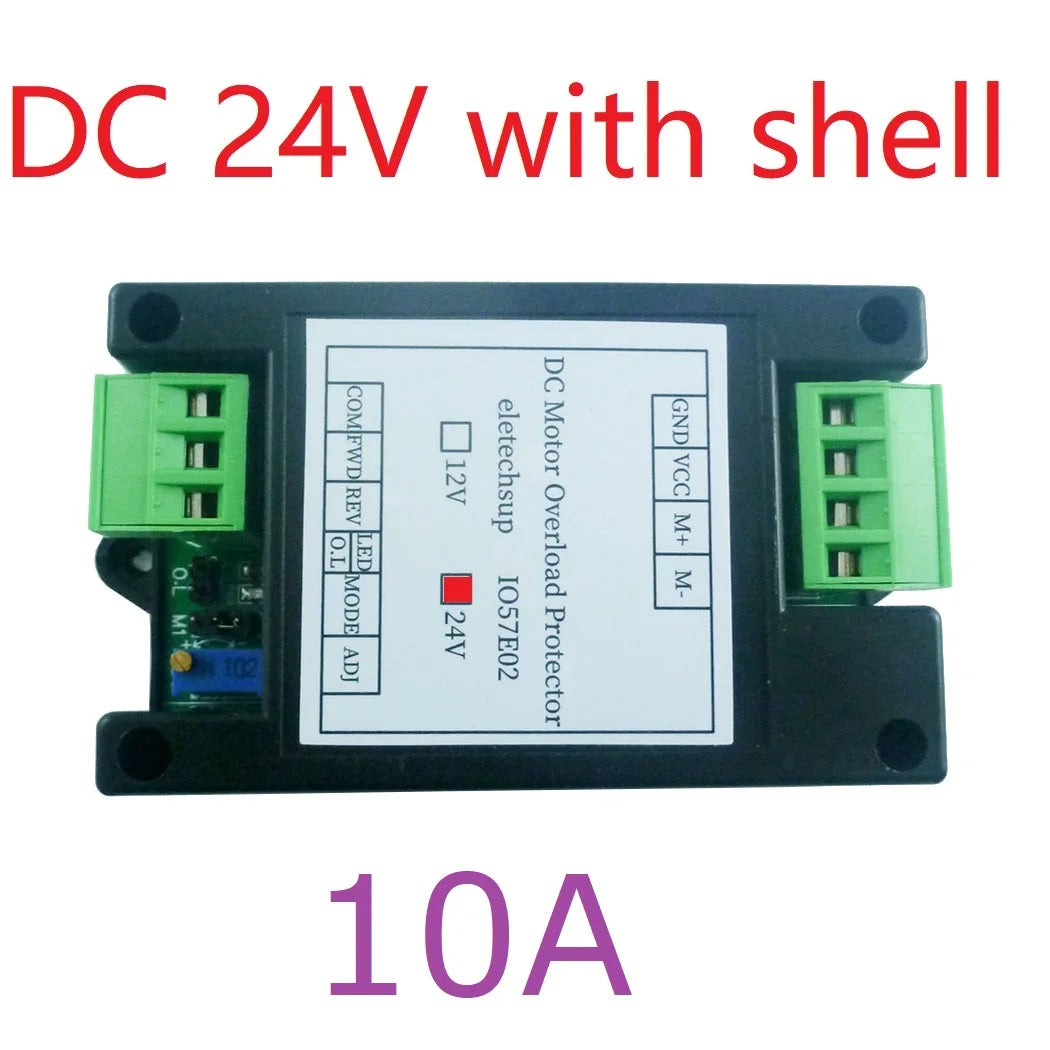

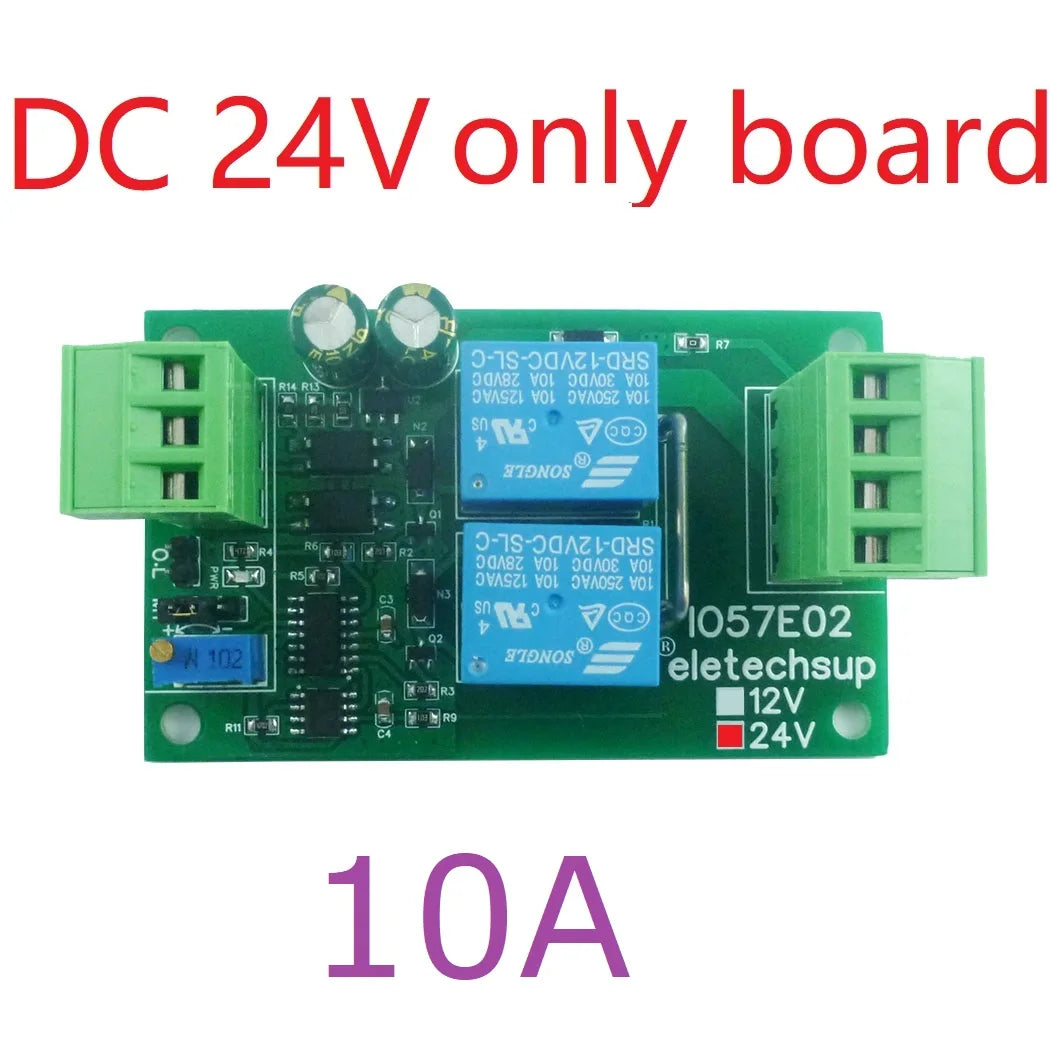

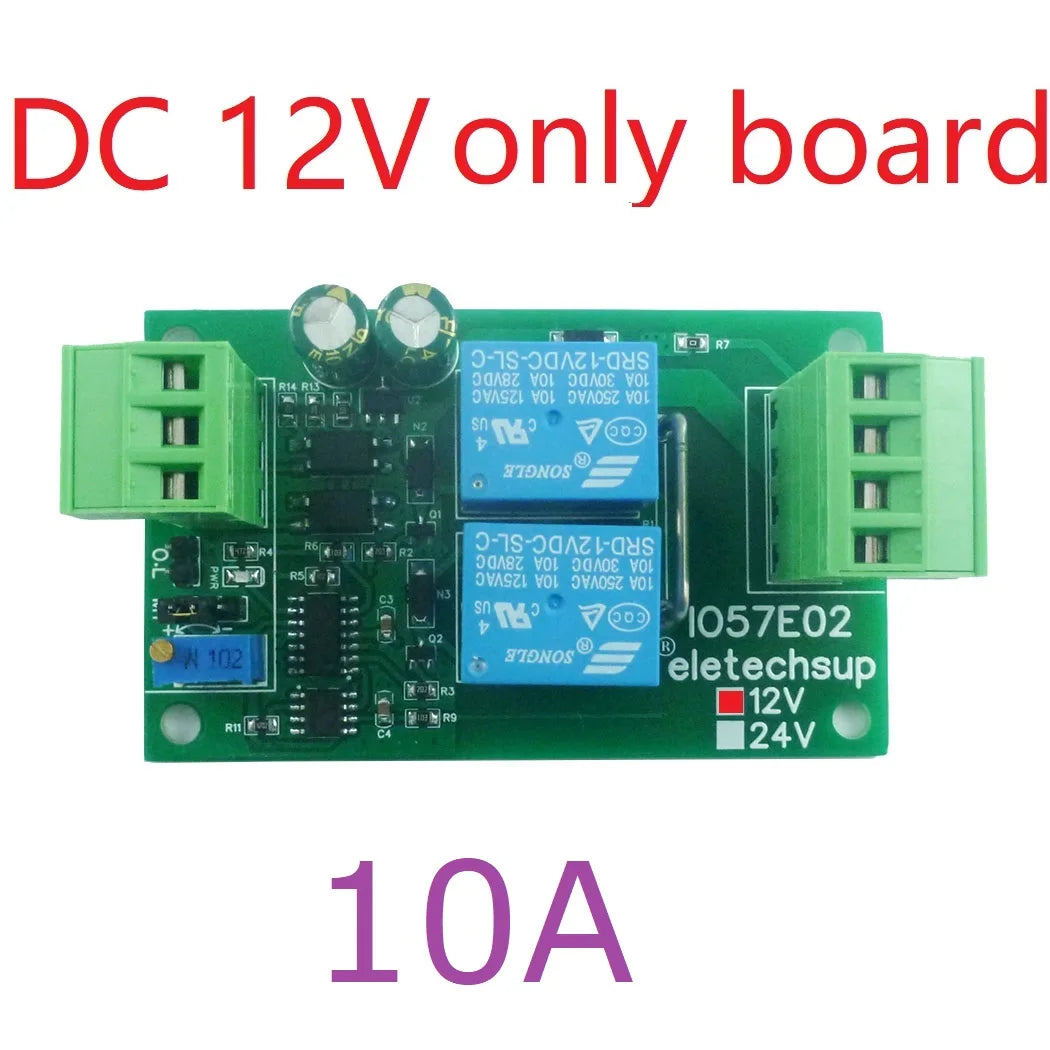

10A Version:
1 Working voltage: DC 12V (12V version) or 24V (24V version) (DC power supply power ≥ motor power x3);
2 Applicable motor: 12V/24V Brushed DC motor;
3 Maximum current: Short-term working current 10A, long-term working current 3A;
4 Protection current adjustment range: 0.2A~10A;
5 Motor control: Forward, Reverse;
6 Working modes: 2 optional modes, Non-locking and self-locking;
7 Working current (excluding motor): 40mA;
8 Size: 97*50*32mm (with shell), 79.5*48.2*19mm (without shell);
9 Weight: 80.3 grams (with shell), 45,5g(without shell).

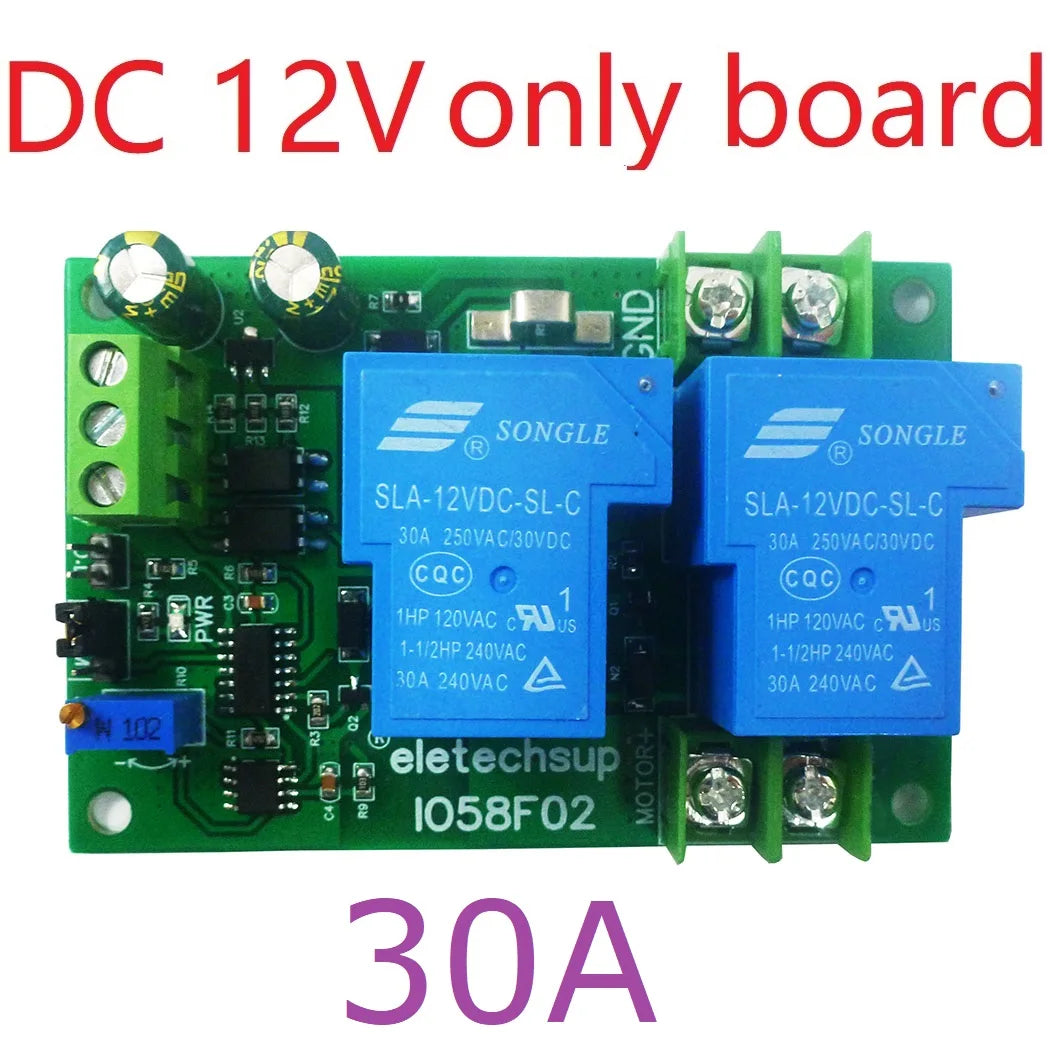

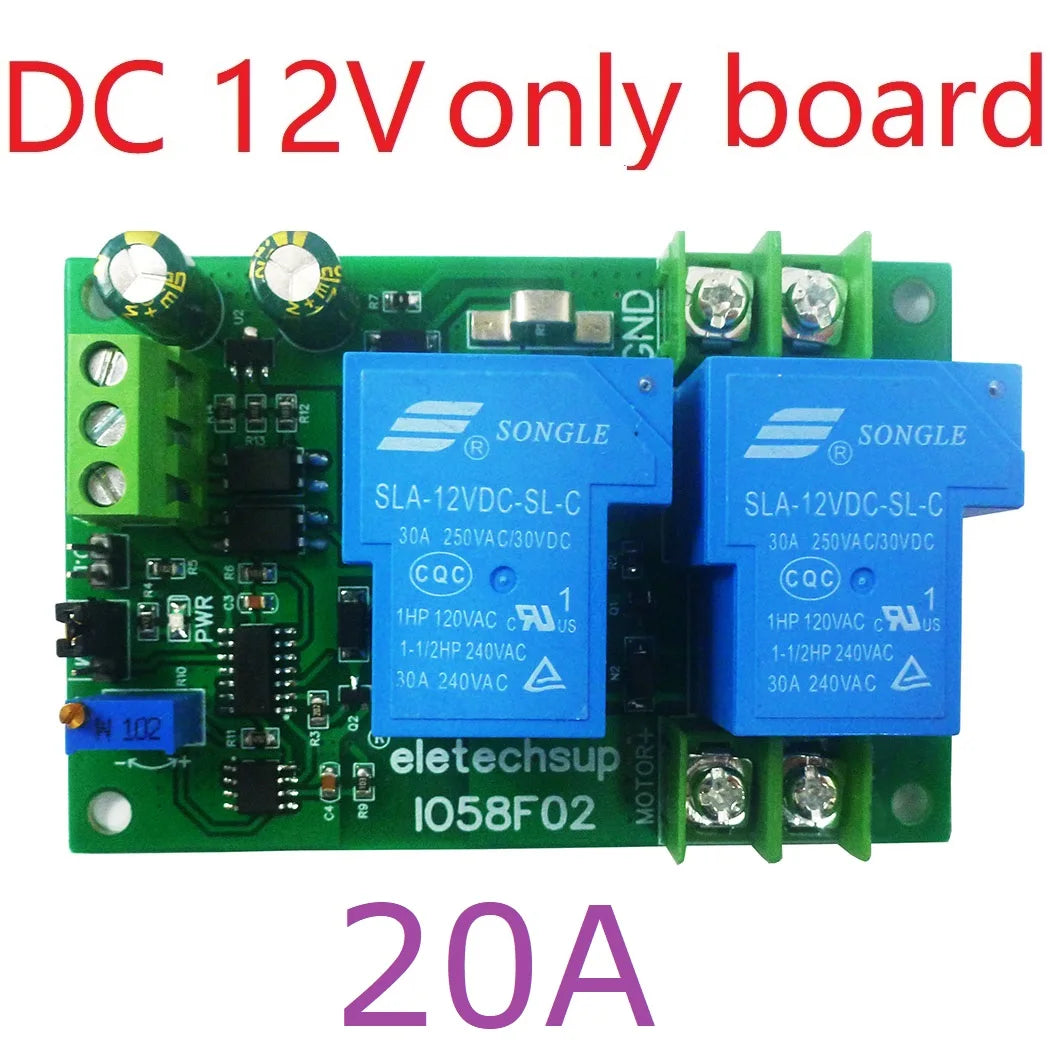

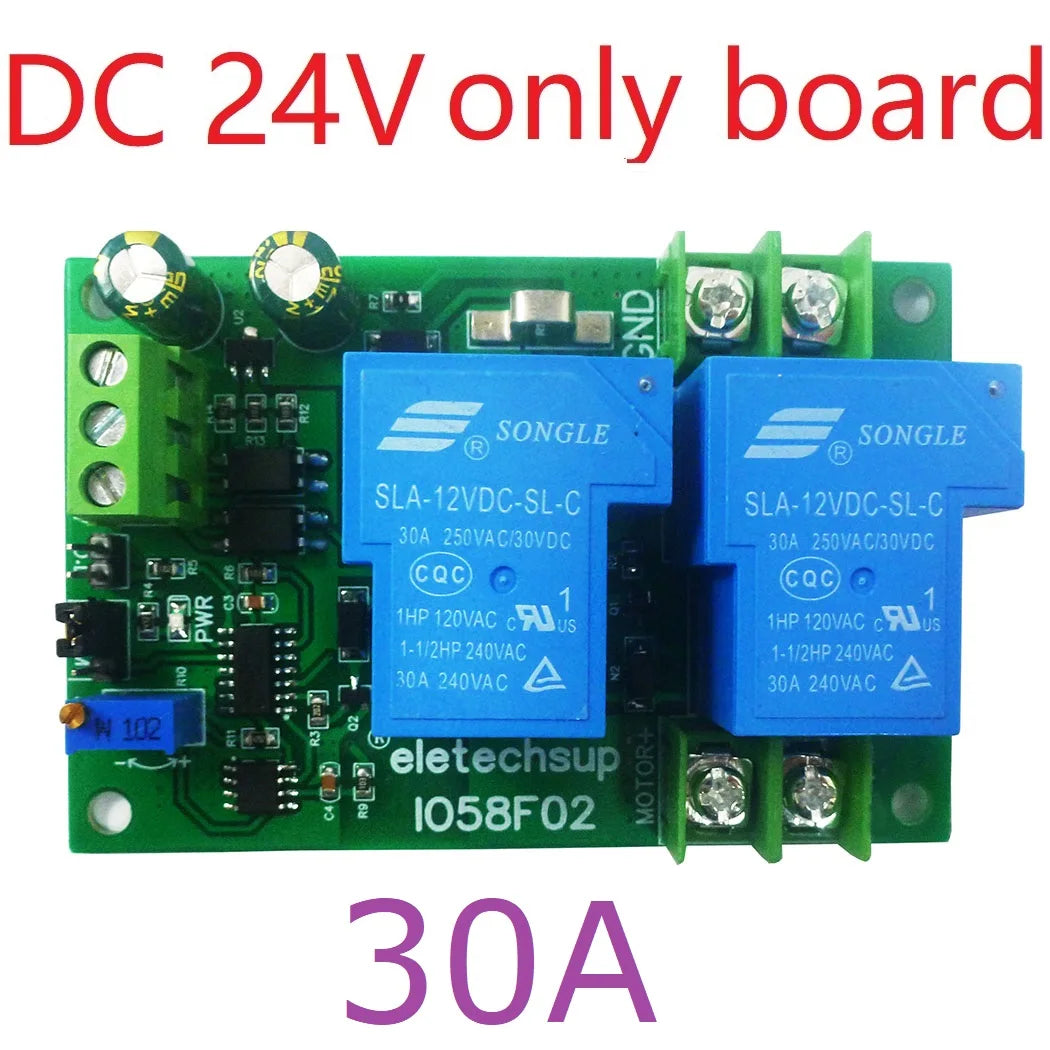

20A/30A Version:
1 Working voltage: DC 12V (12V version) or 24V (24V version) (DC power supply power ≥ motor power x3);
2 Applicable motor: 12V/24V Brushed DC motor;
3 Maximum current: Short-term working current 20A/30A, long-term working current 10A;
4 Protection current adjustment range: 0.2A~20A/0.2A~30A;
5 Motor control: Forward, Reverse;
6 Working modes: 2 optional modes, Non-locking and self-locking;
7 Working current (excluding motor): 5-70mA;
8 Size: 87*58*25mm;
9 Weight: 80.1 grams

Please contact me for detailed instructions

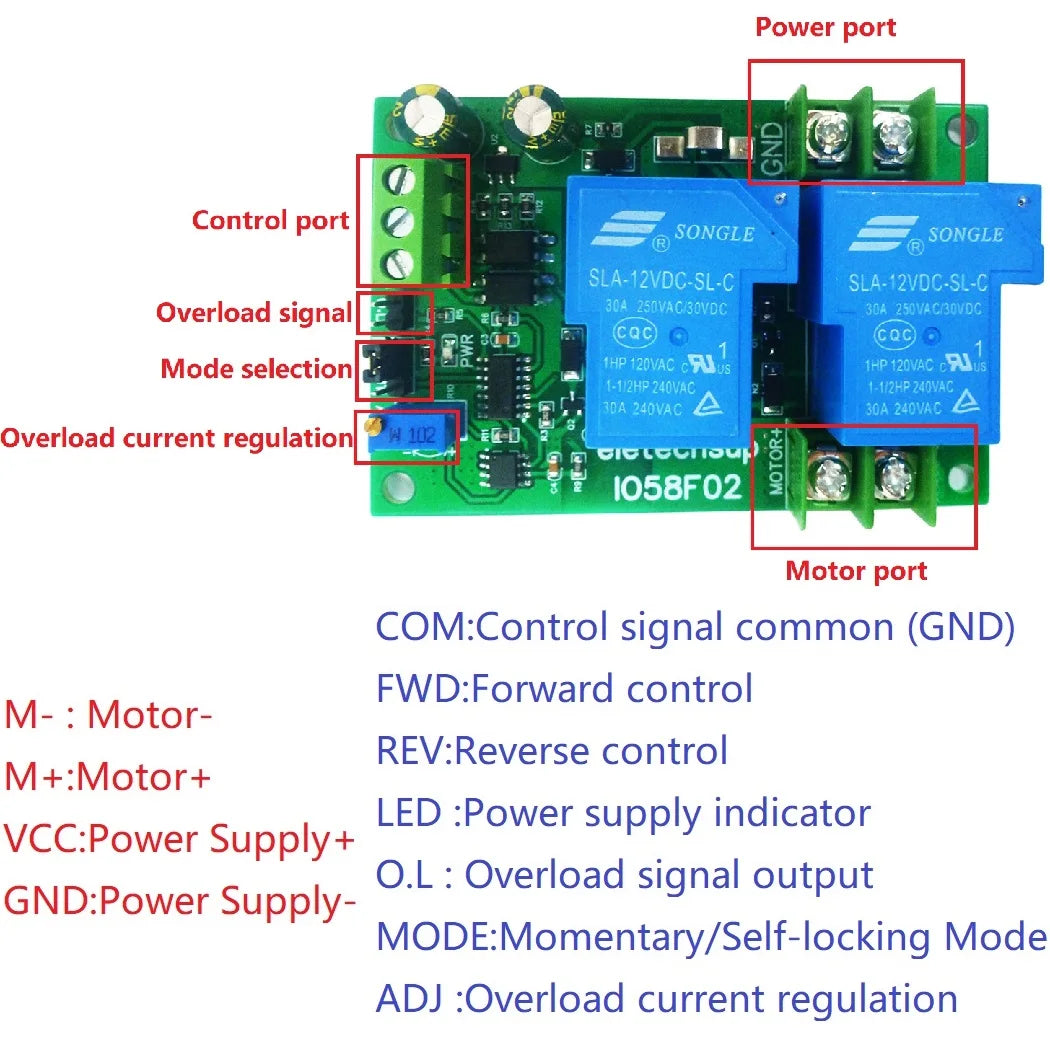

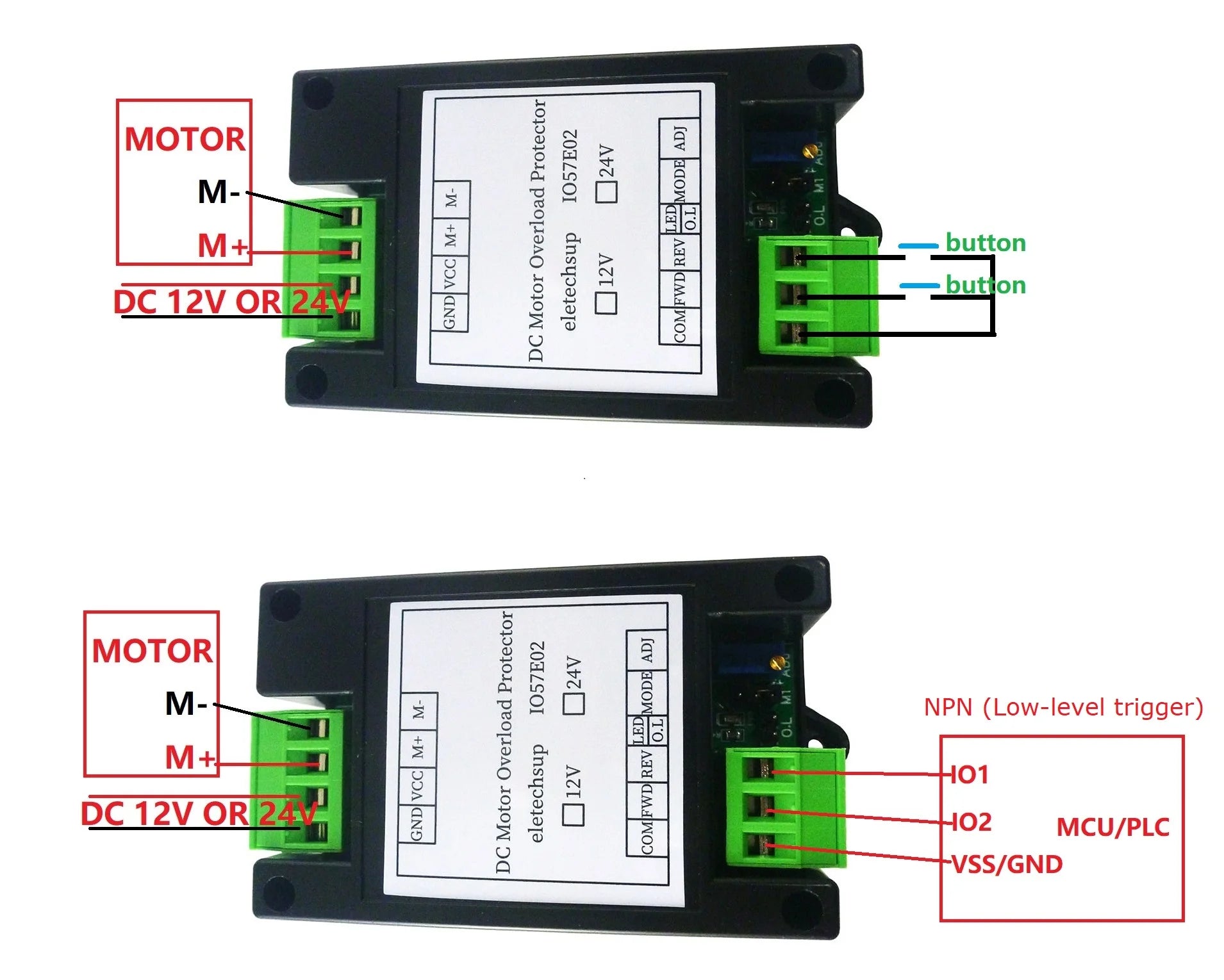

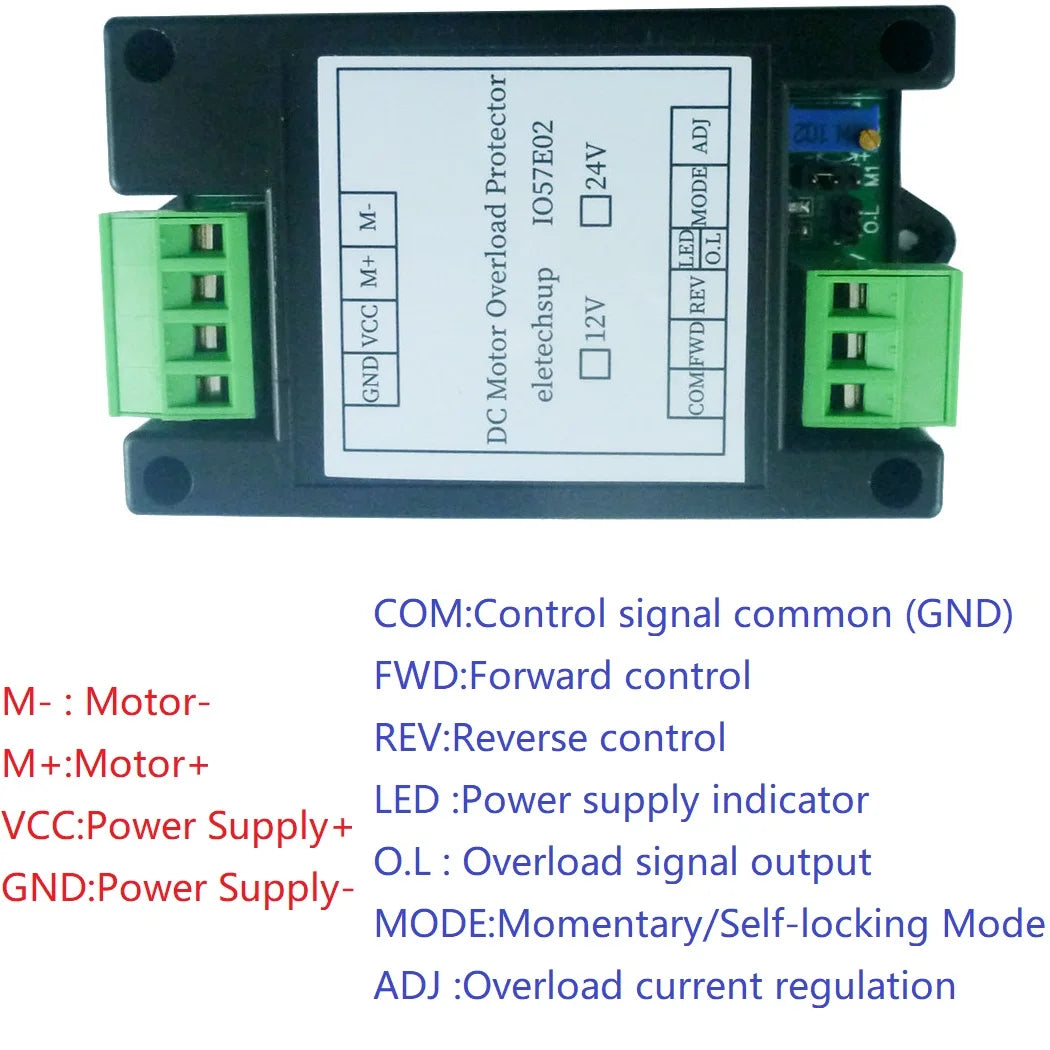

Pin Description
M- : Motor-
M+:Motor+
VCC:Power Supply+
GND:Power Supply-

COM:Control signal common terminal(GND)
FWD:Forward control
REV:Reverse control
LED :Power supply indicator
O.L : Overload signal output
MODE:Momentary/Self-locking mode selection
ADJ :Overload current regulation

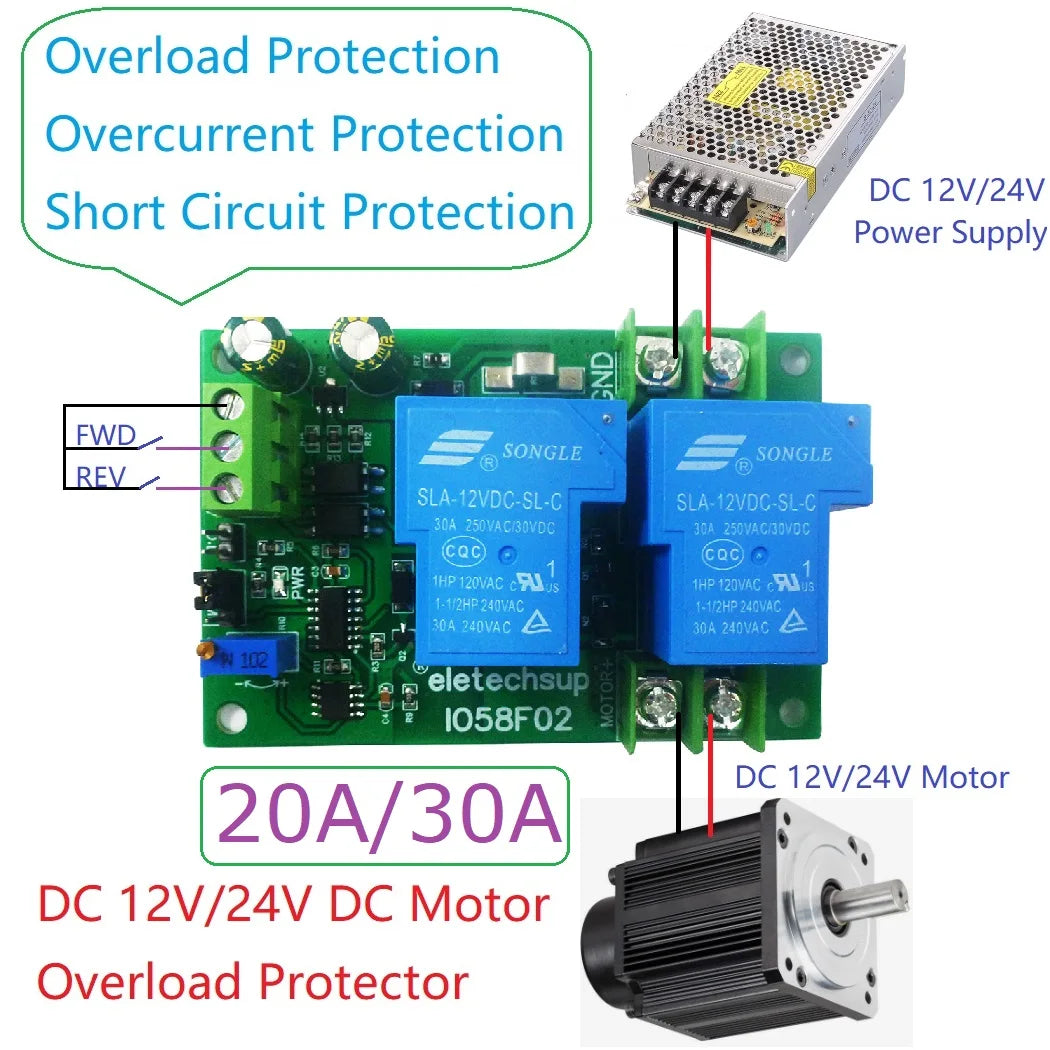

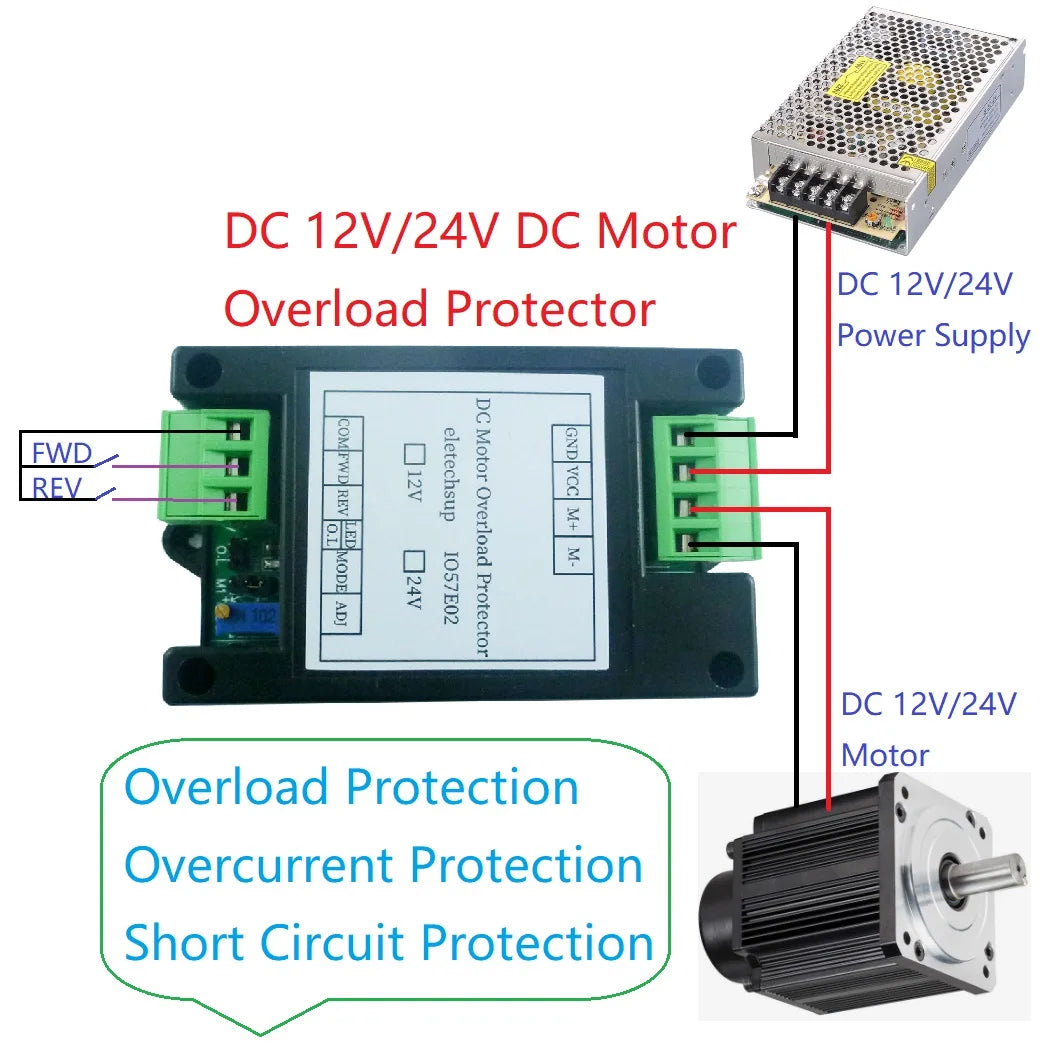

Application

Motor Overload Protection
Motor Overcurrent Protection
Motor Short Circuit Protection
LED Overcurrent Protection
