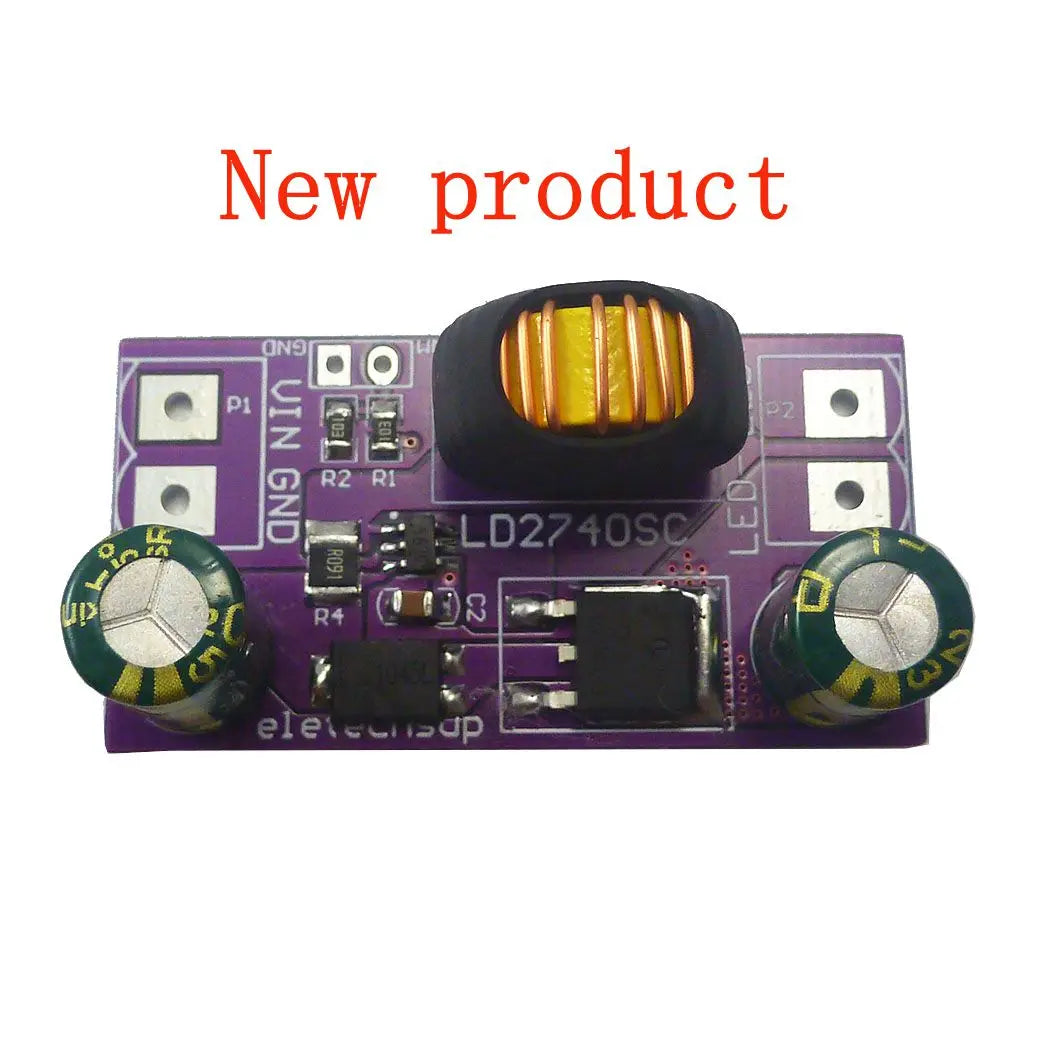

Product Name: 80W DC 4-24V 1-4A Switch-Mode Step-Down Constant-Current High-Brightness LED Driver Module for Solar Emergency Automotive Lights


Packing list:

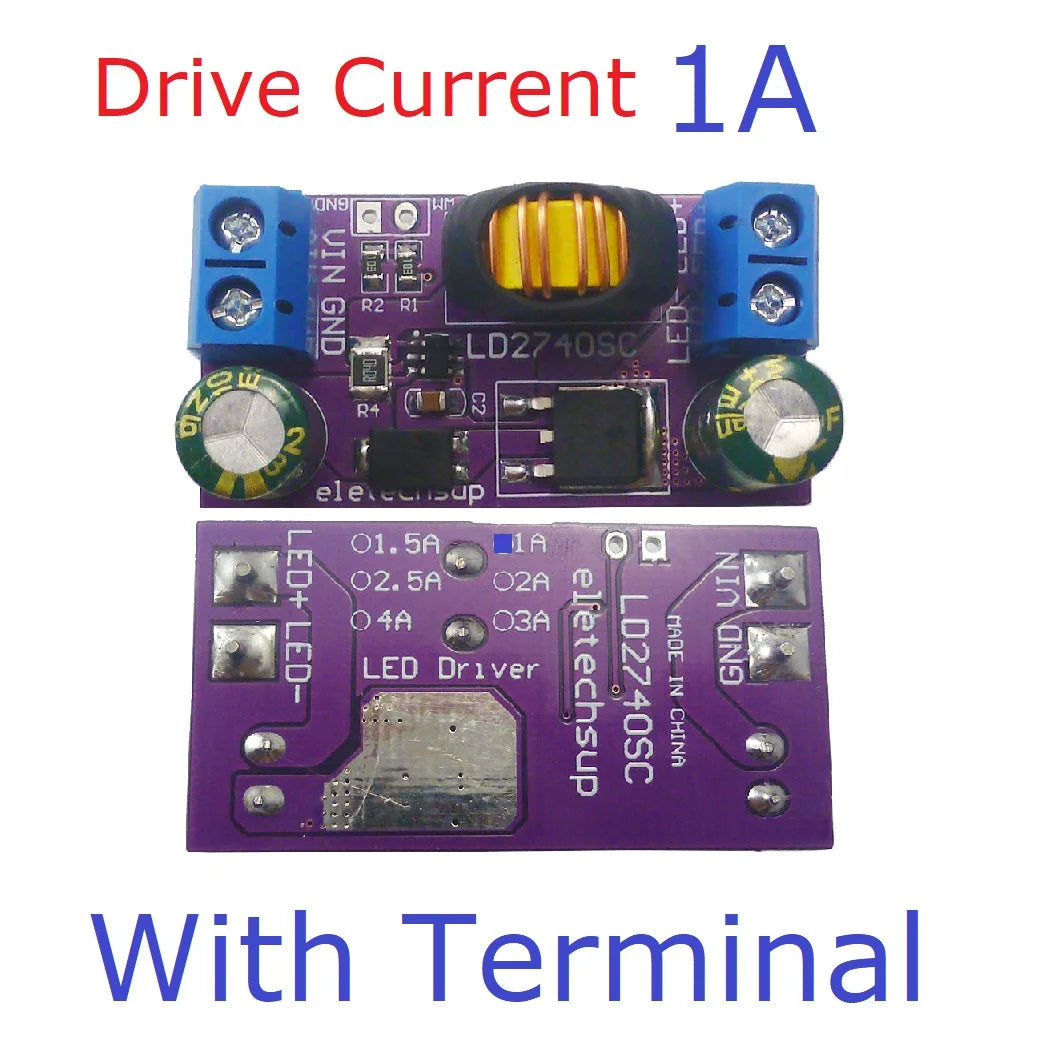

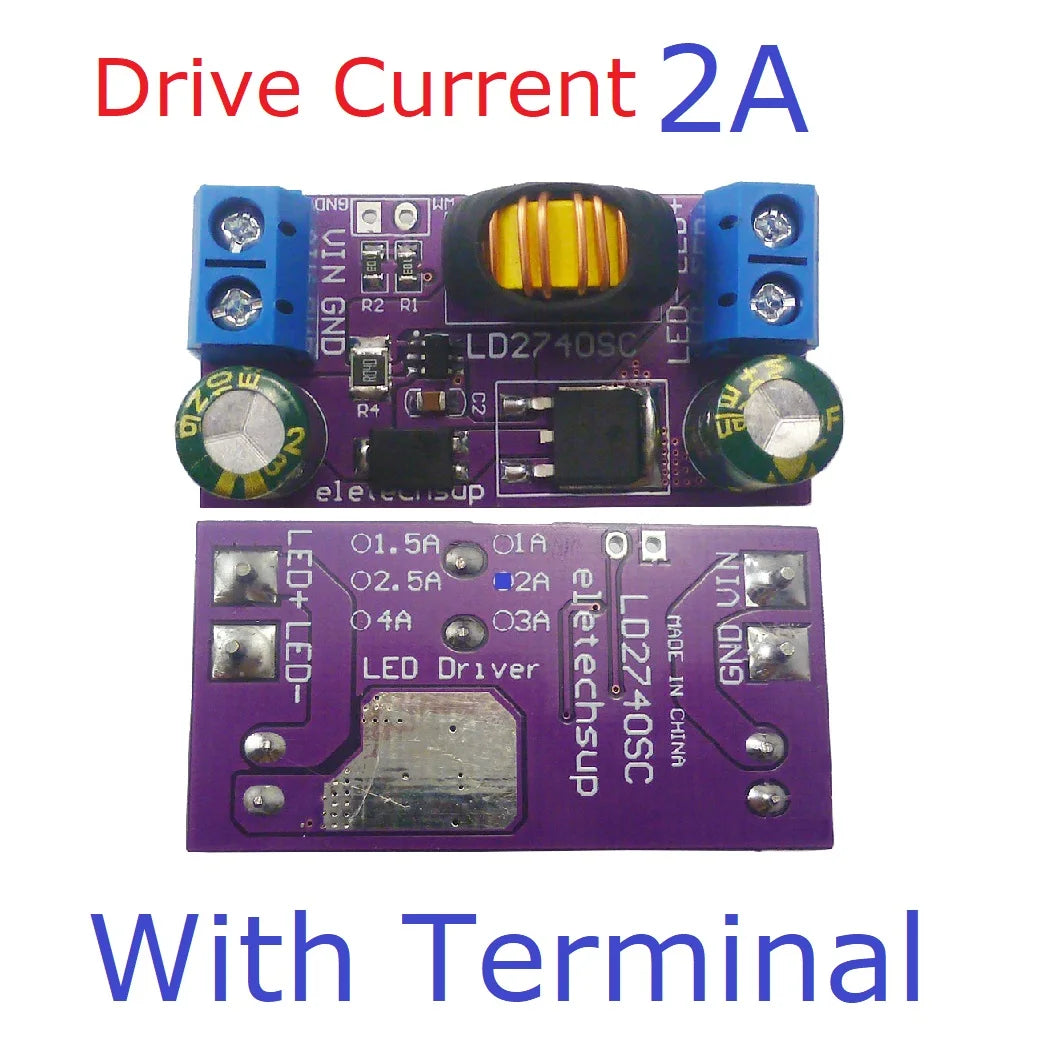

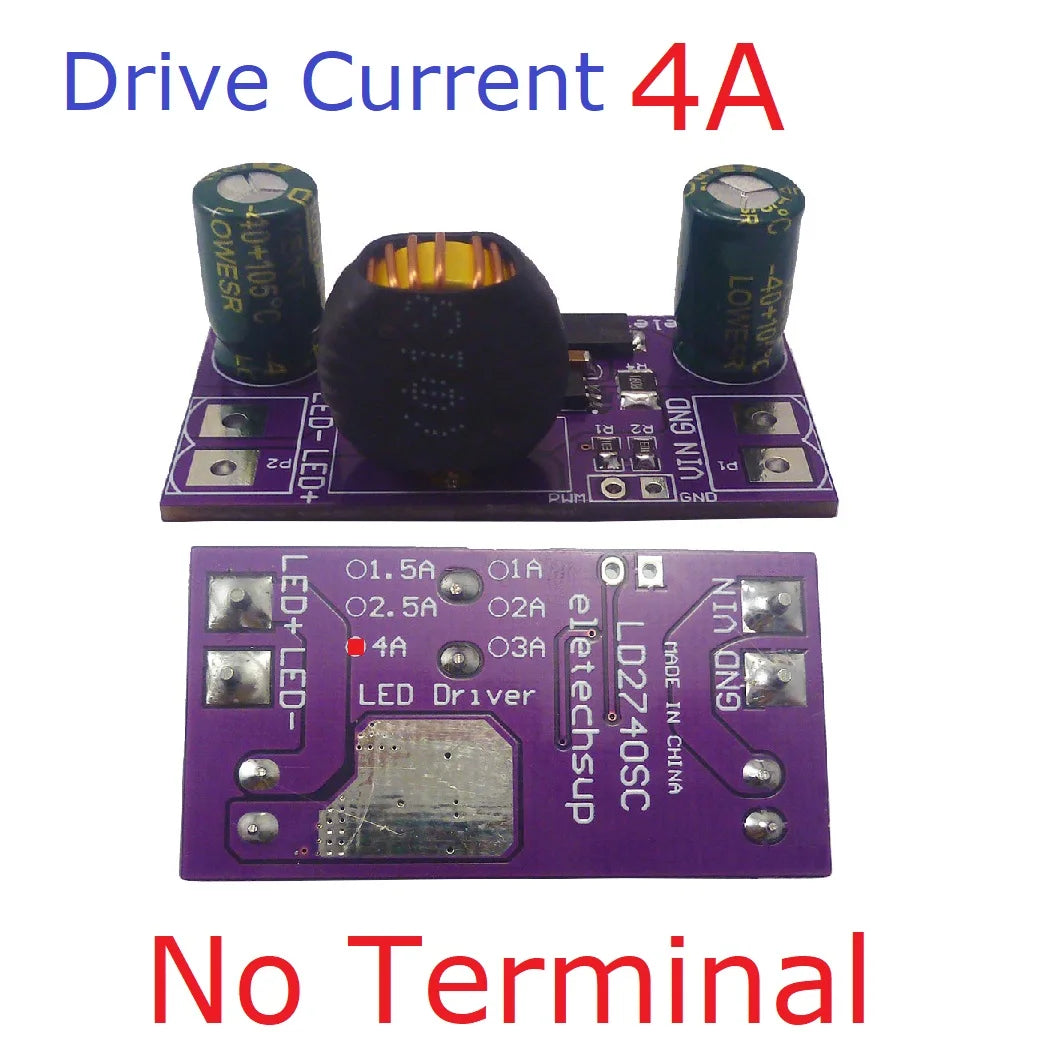

1PCS DC 4-27V 1A/1.5A/2A/2.5A/3A/4A Step-down constant-current LED Driver Module














Description :







Switch-Mode Step-down Constant-Current High-Brightness LED Driver Module

4-27V switch-mode step-down constant-current high-brightness LED (HB LED) driver Module
Working voltage : DC 4-27V(1A/1.5A);DC 5-27V(2A/2.5A);DC 6-27V(3A/4A)

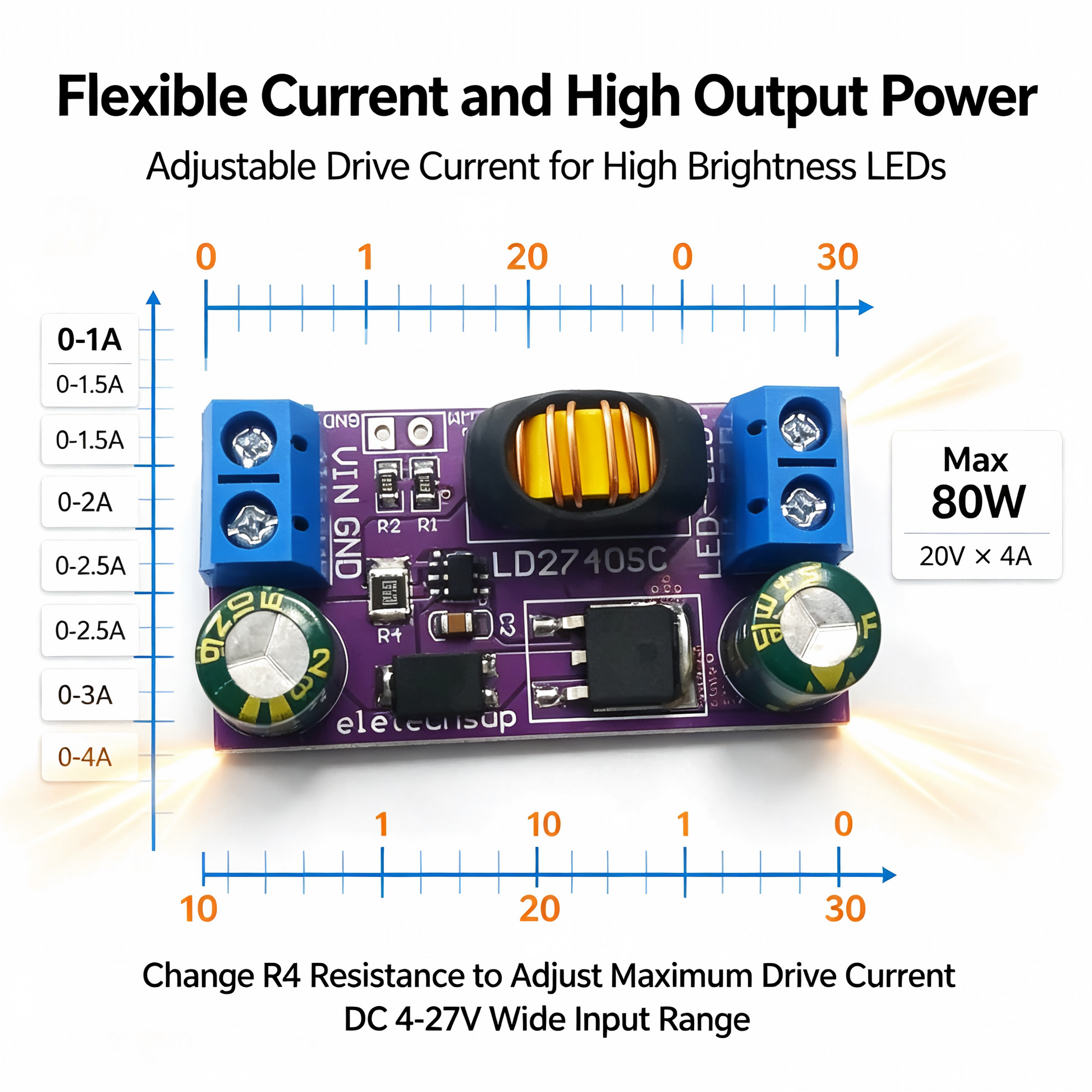

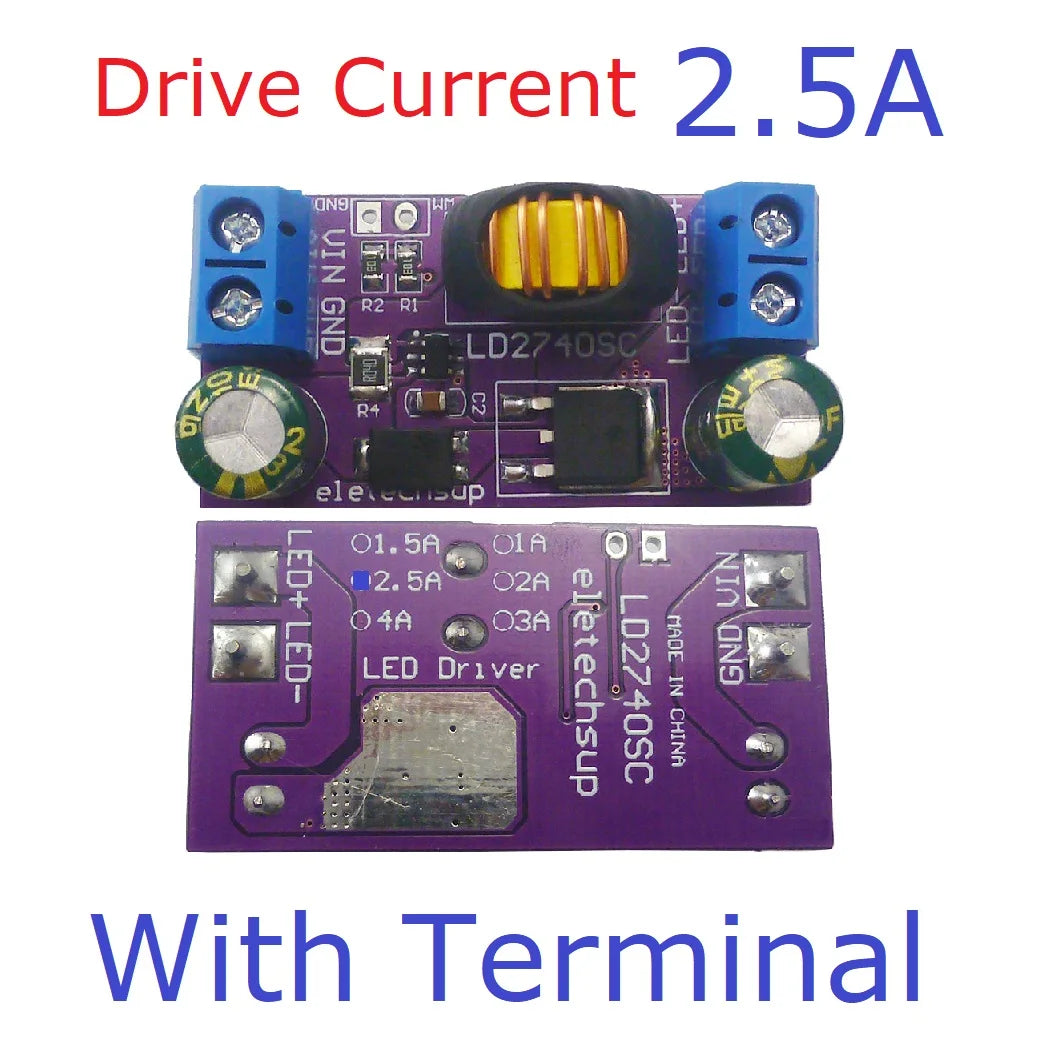

Output Current: 0-1A/1.5A/2A/2.5A/3A/4A;By changing the R4 resistance, the maximum drive current can be changed
Maximum output power: 80W(20V*4A)
Current regulation: Through PWM control
Single pin ON/OFF and brightness control using PWM

Wide input voltage range: 4V to 27V
Up to 1A/1.5A/2A/2.5A/3A/4A output current
3.3V/5V PWM Adjustable Constant LED Current
5% output current accuracy.
Up to 1MHz Switching Frequency
Inherent open-circuit LED protection
High efficiency (up to 92%)
Adjustable Constant LED Current
High-Side Current Sense
Hysteretic Control: No Compensation

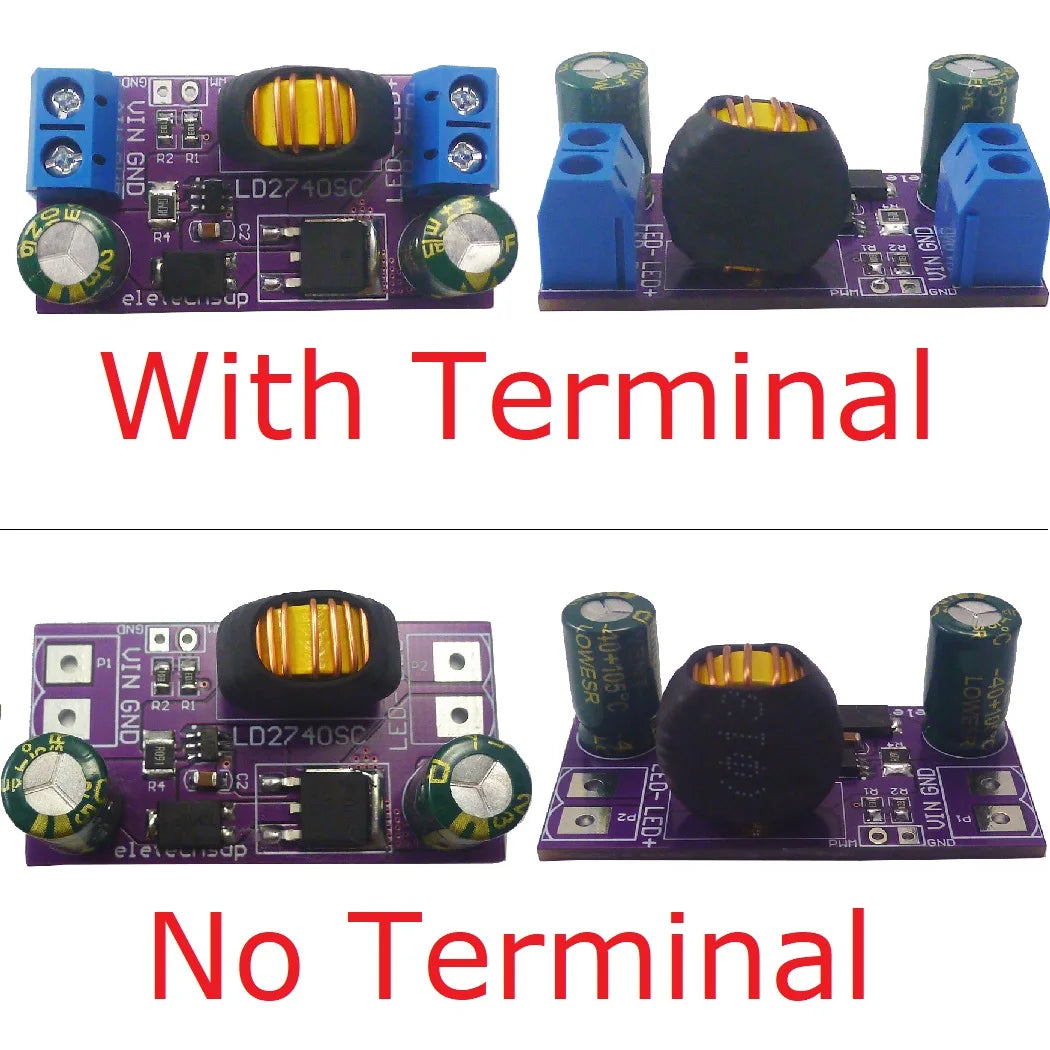

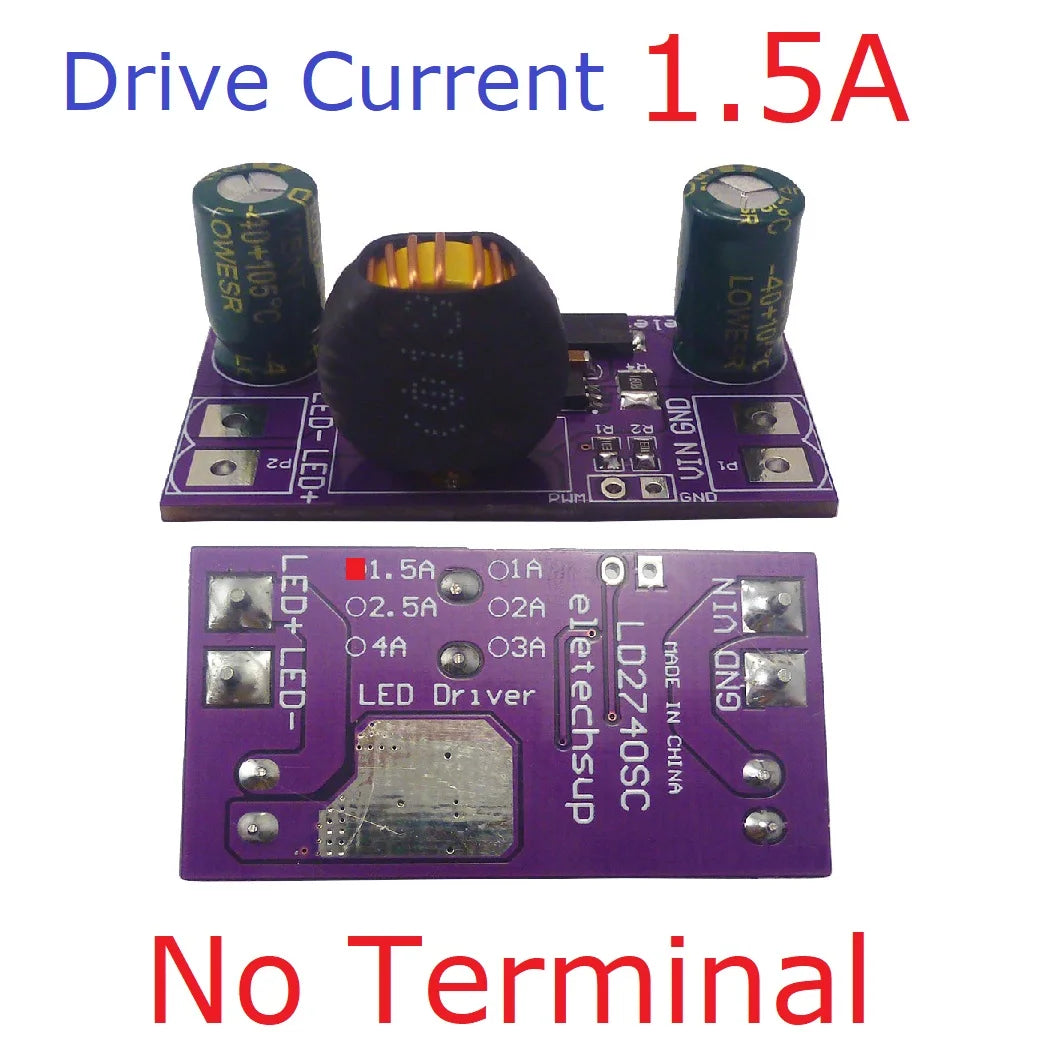

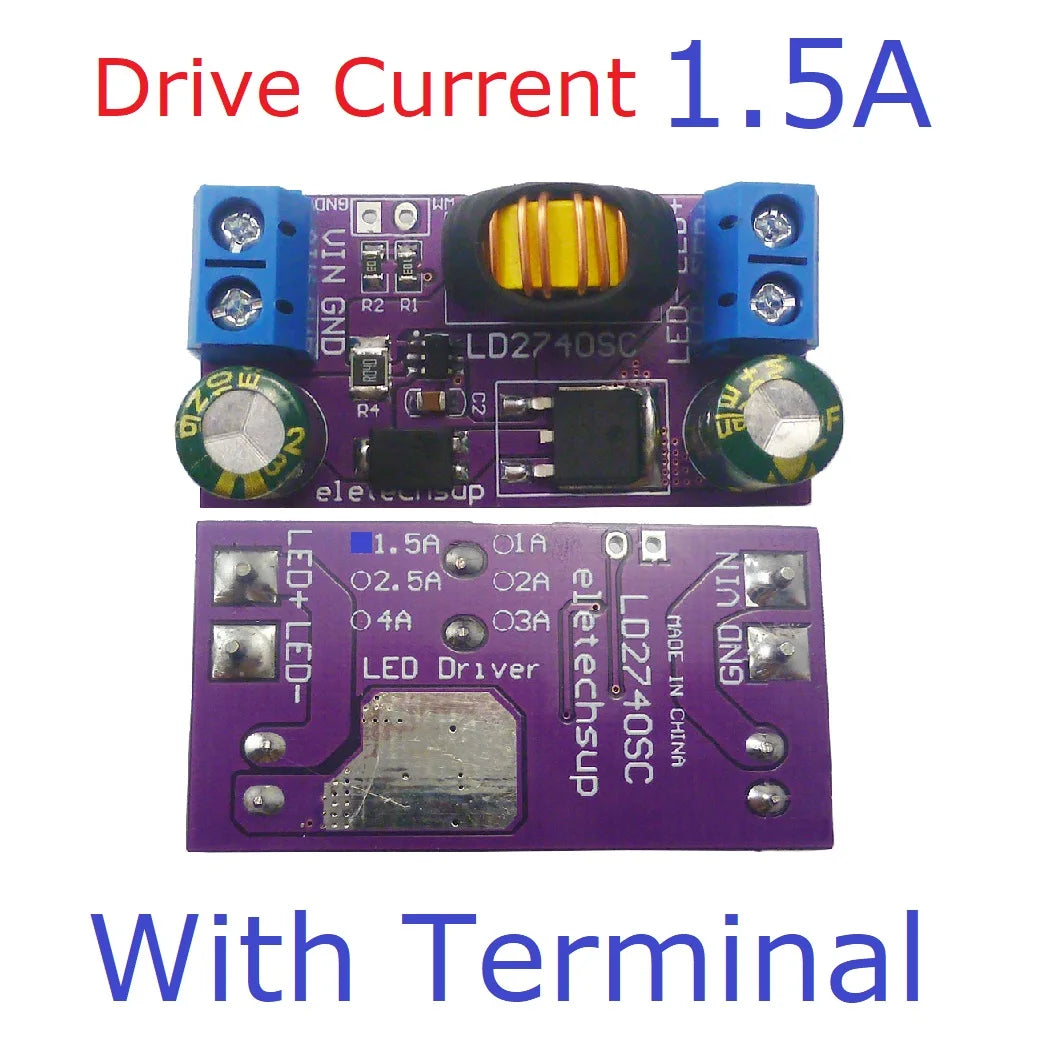

Size : 42*22*16mm(With/No Terminal)
Weight : 13g(With Terminal);10g(No Terminal)


Typical Application :
Architectural, Industrial, and Ambient Lighting
Automotive RCL, DRL, and Fog Lights
MR16 and Other LED Bulbs
Indicators and Emergency Lighting
Illuminated signs
Car LED lights
Stage lights


Pin Description

VIN : Power Supply+
GND : Power Supply-
LED+: LED Out+
LED- : LED Out-
PWM : Logic level dimming input+
GND : Logic level dimming input-

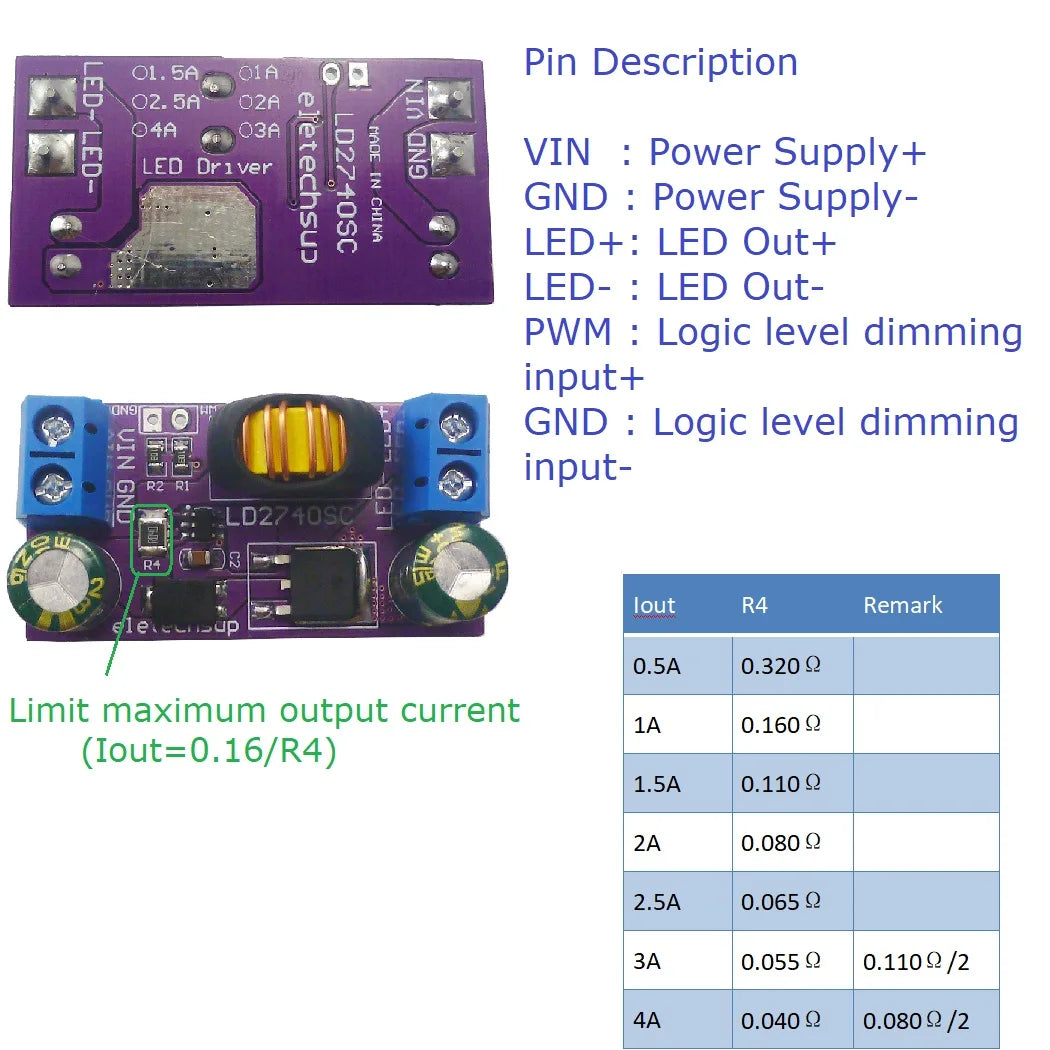

Limit maximum output current
(Iout=0.16/R4)

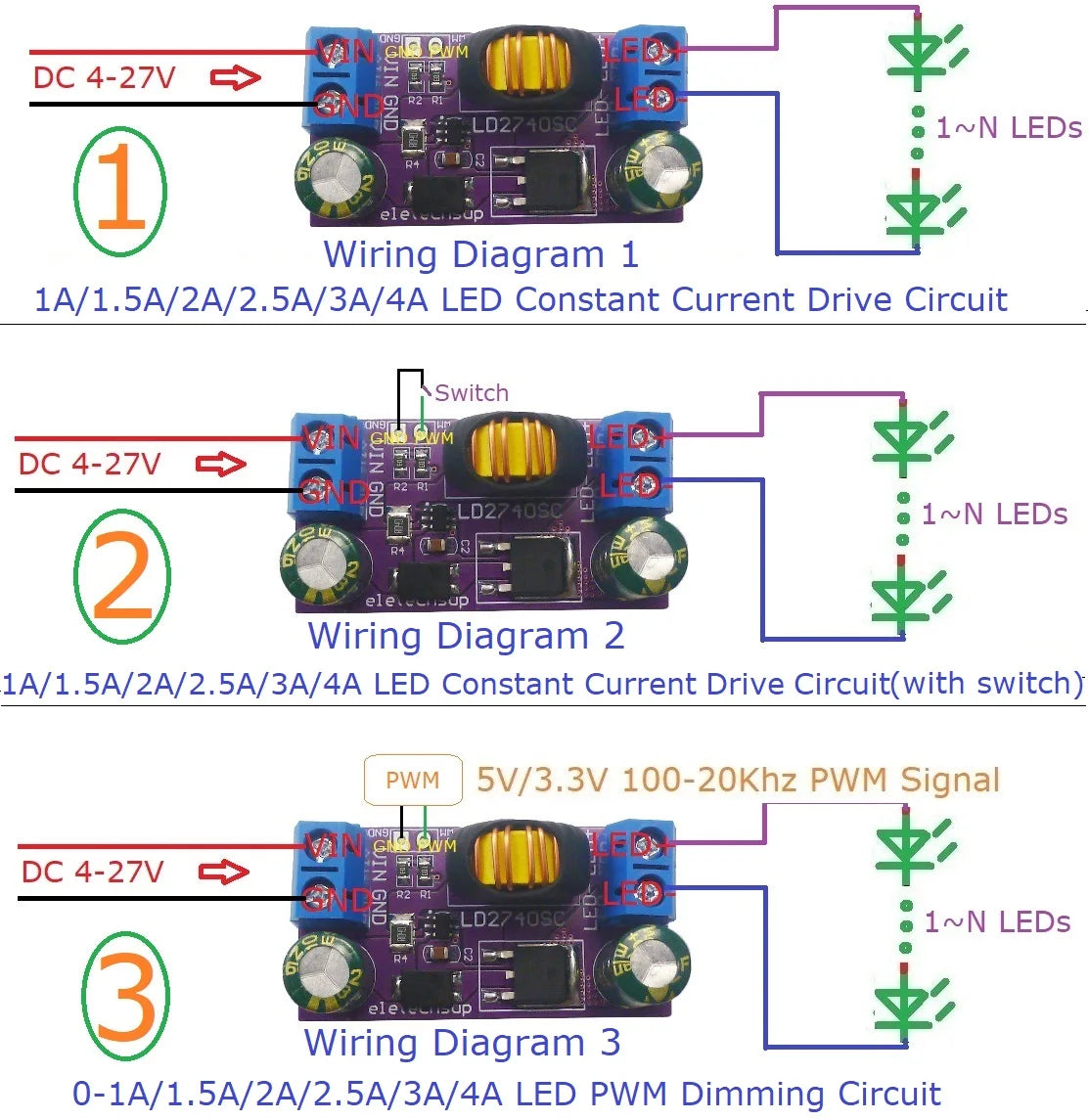

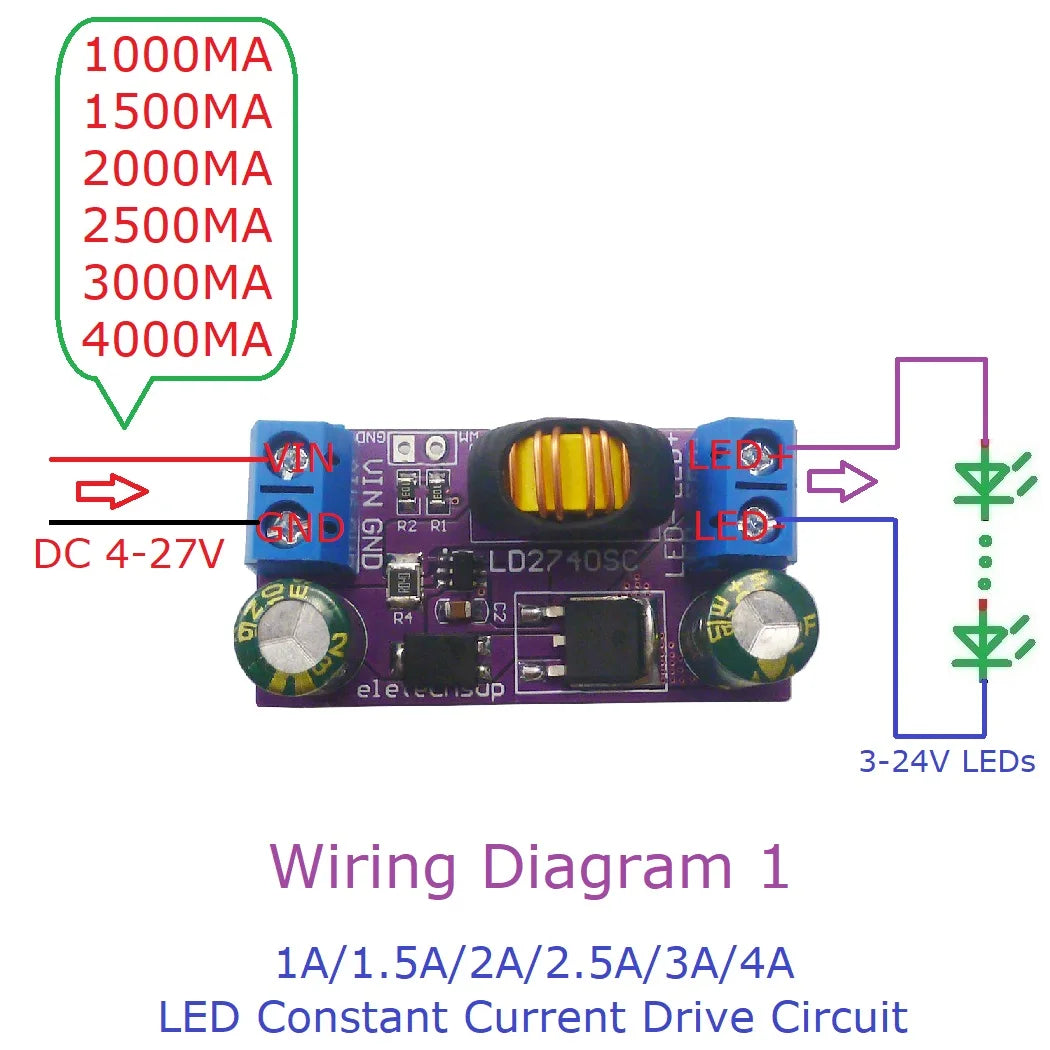

Wiring Diagram 1 : 1A/1.5A/2A/2.5A/3A/4A LED Constant Current Drive Circuit

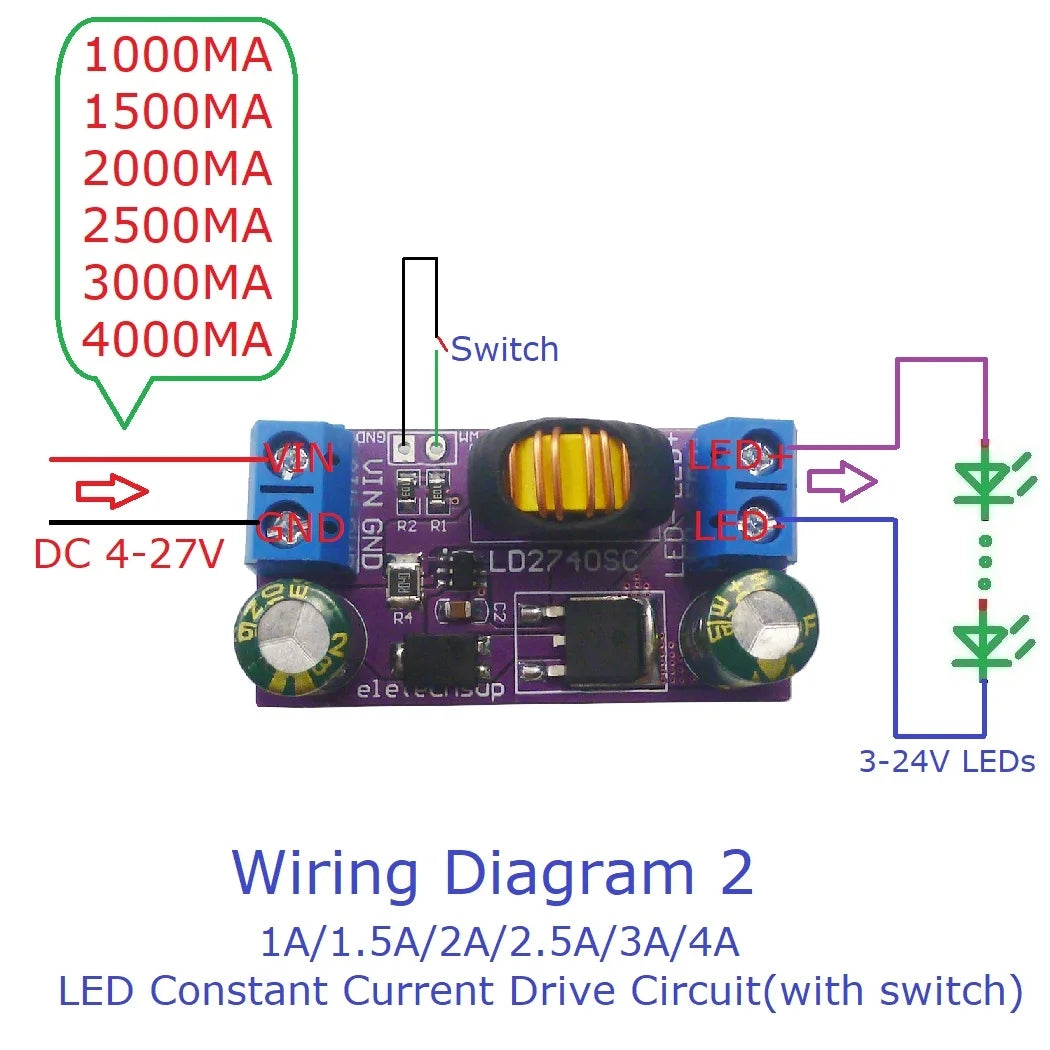

Wiring Diagram 2 : 1A/1.5A/2A/2.5A/3A/4A LED Constant Current Drive Circuit(with switch)

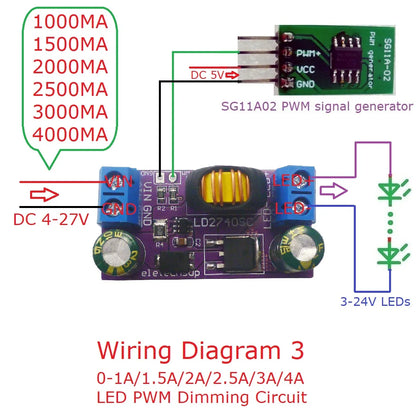

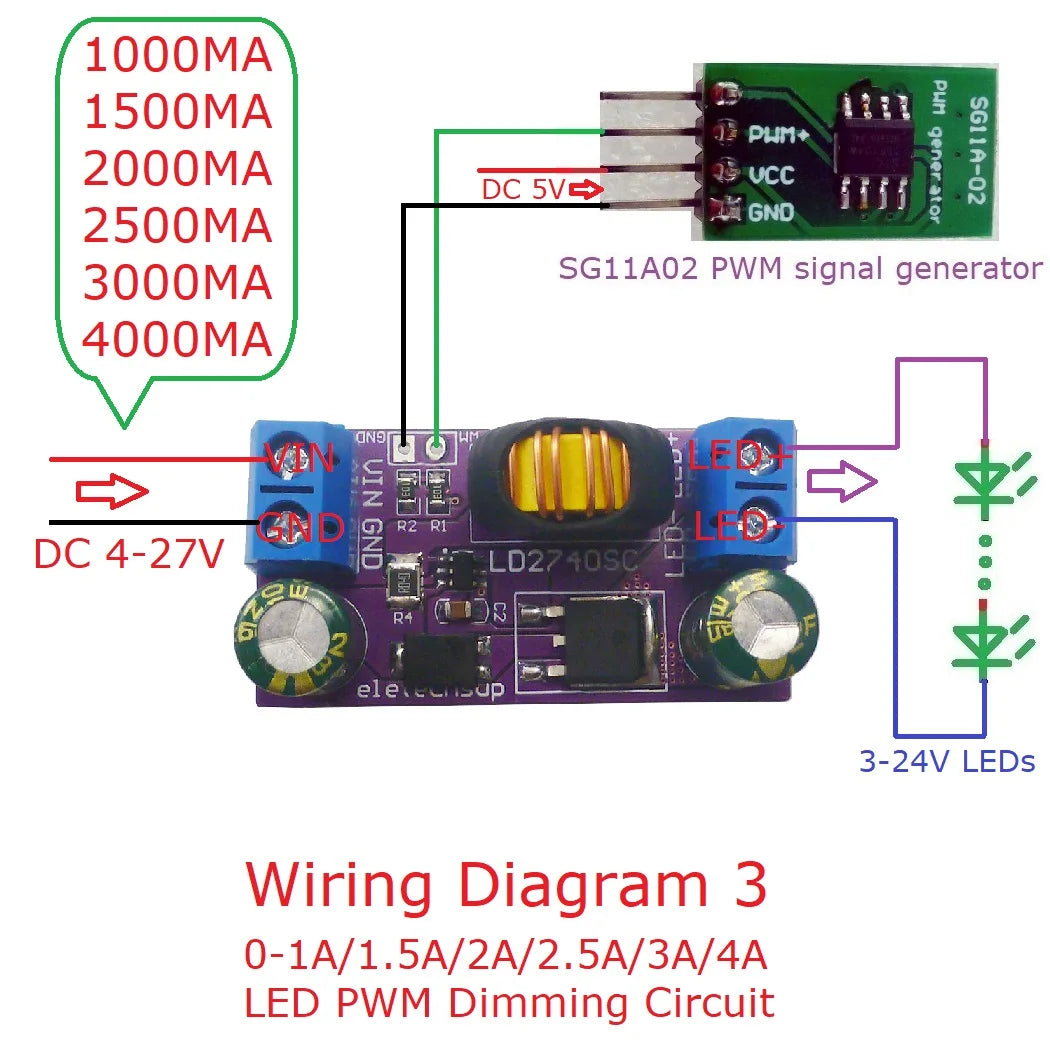

Wiring Diagram 3 : 0-1A/1.5A/2A/2.5A/3A/4A LED PWM Dimming Circuit
