N467D01 RS485 Modbus RTU DC Motor Driver – 8-30V 1-2A Forward Reverse Stop Delay Controller with 497-Day Timer for PLC Automation
N467D01 RS485 Modbus RTU DC Motor Driver – 8-30V 1-2A Forward Reverse Stop Delay Controller with 497-Day Timer for PLC Automation
Regular price
$10.98 USD
Regular price
$10.98 USD
Sale price
$10.98 USD
Taxes included.
Package inlcuded:

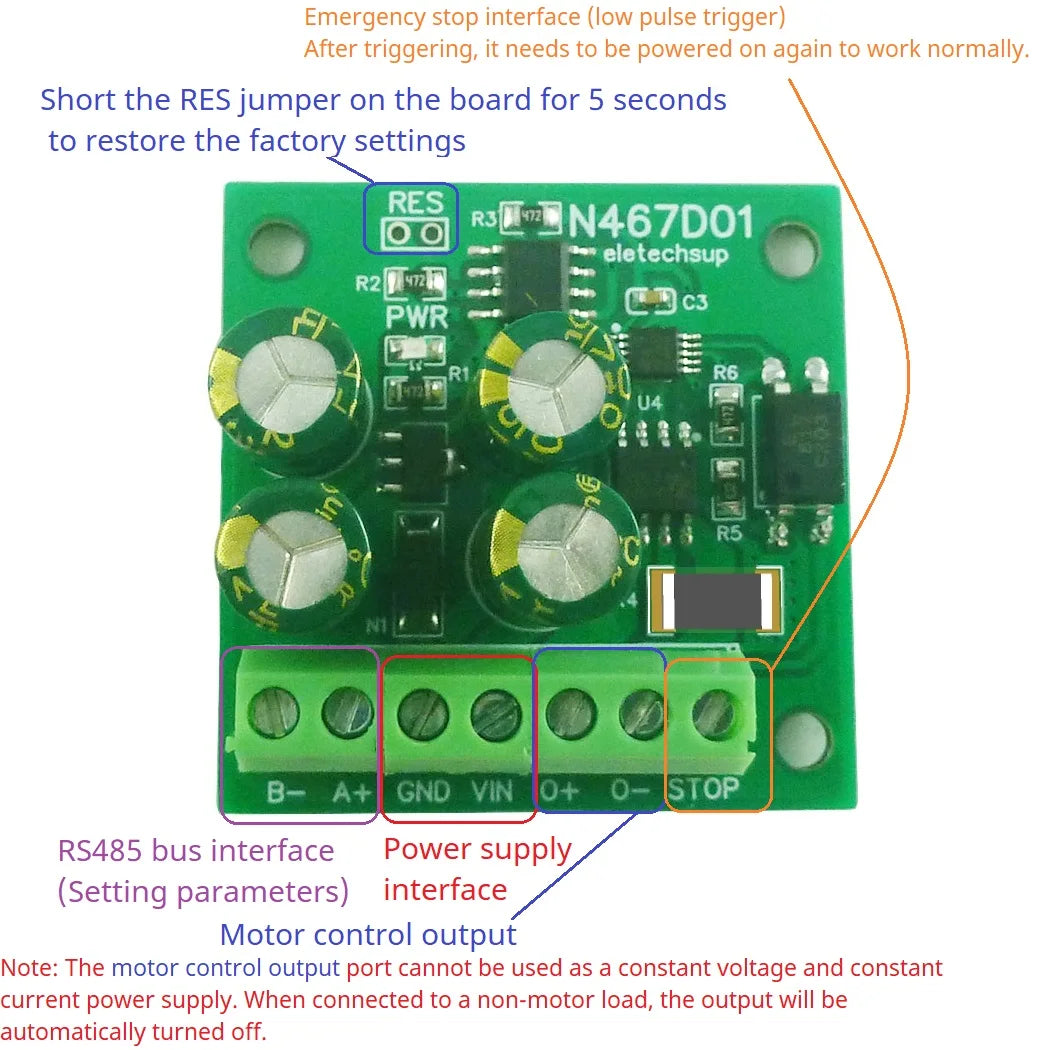

1PCS N467D01 12V 24V 1-2A MODBUS RTU Small DC Motor Controller
Features:
1 Working voltage: 1A version 8-24V; 2A version 8-16V
2 Standby current: 6MA
3 Supports the following MODBUS RTU function codes: write 06/16, read/03
4. The motor can be controlled to rotate forward/reversely/stop through instructions, and the delay time and number of cycles can be set.
5 Support under-voltage lockout protection/support short-circuit protection/support over-temperature shutdown circuit/automatic fault recovery

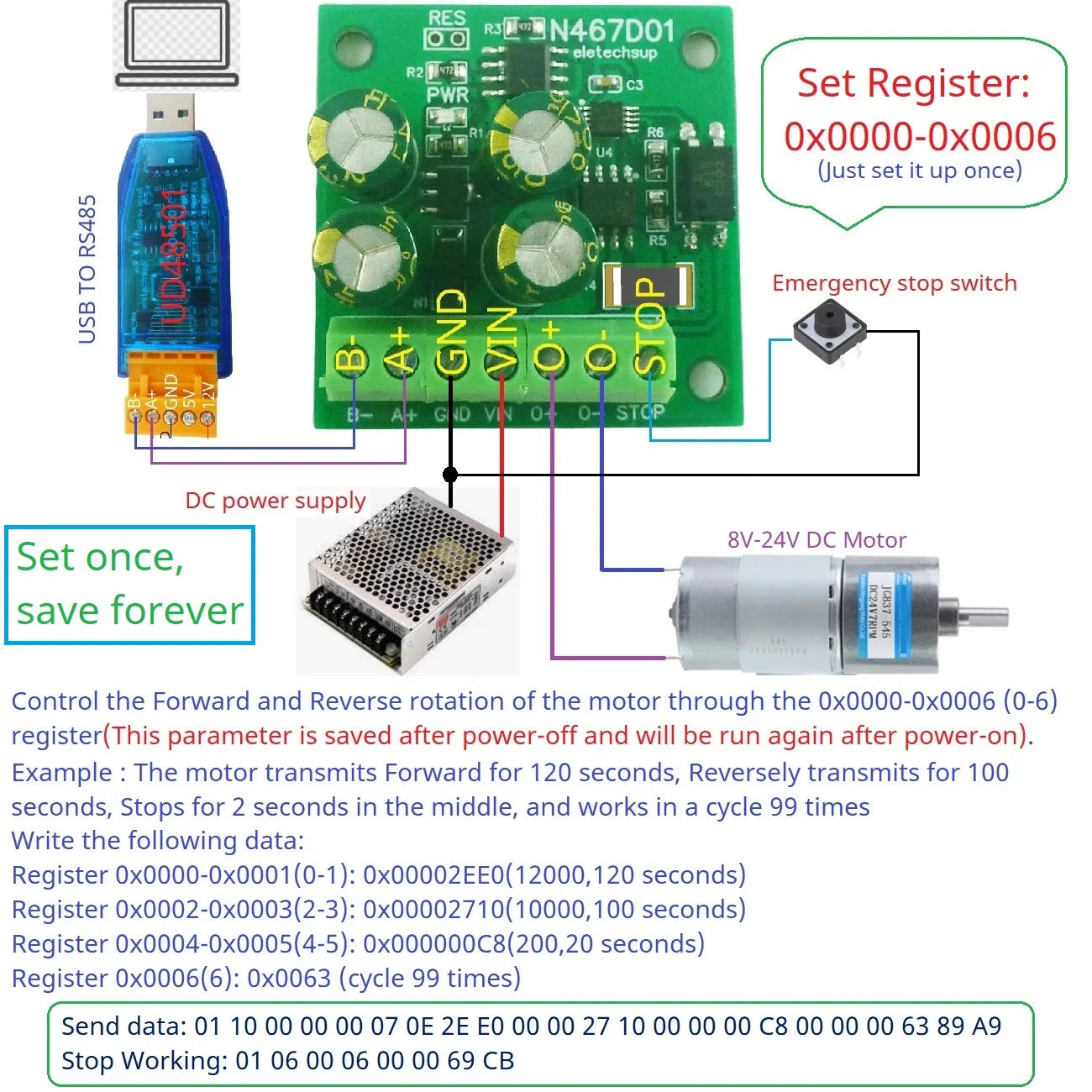

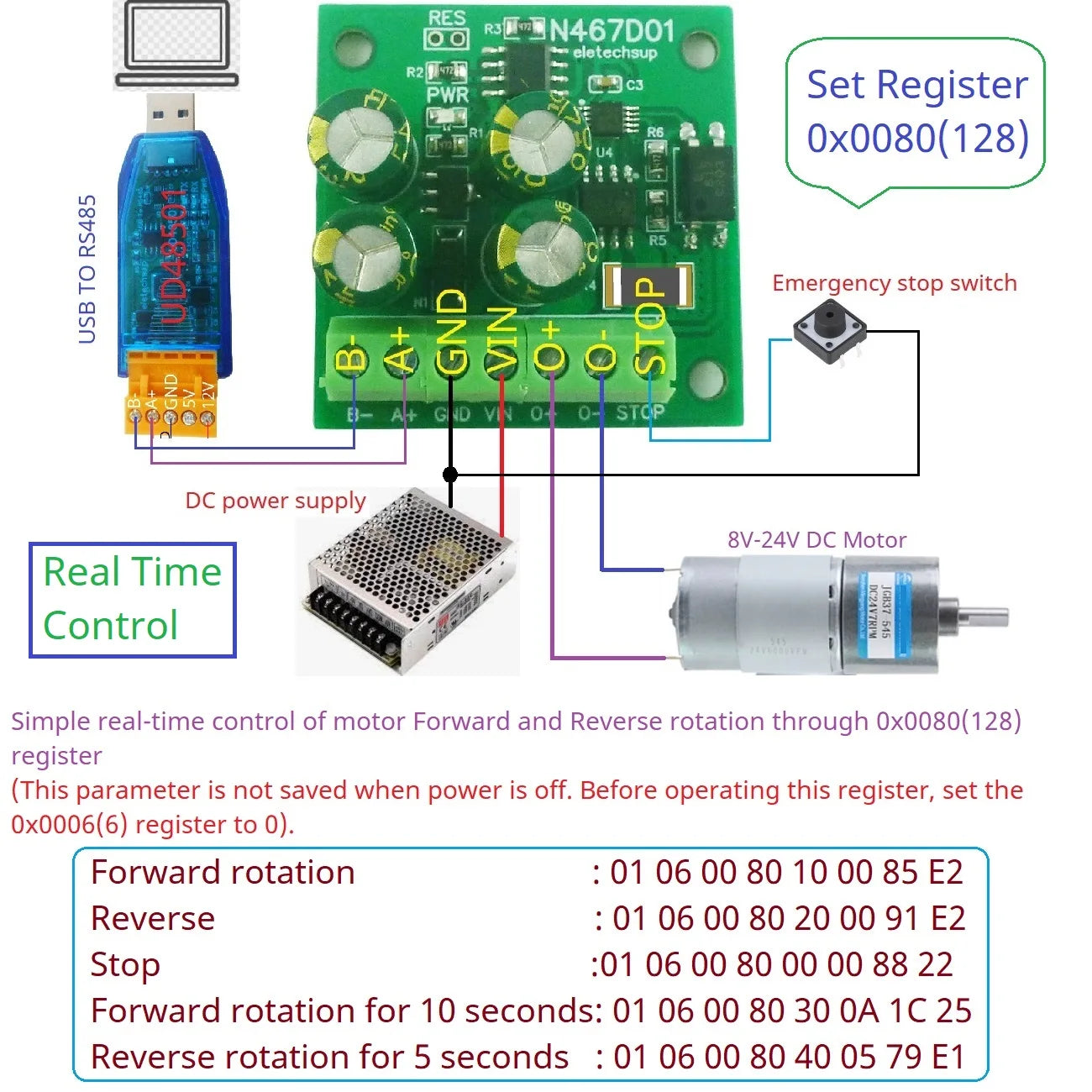

6. You can set the parameters in registers 0-6 at one time and run automatically next time you power on. You can also control the motor in real time through the 128 registers

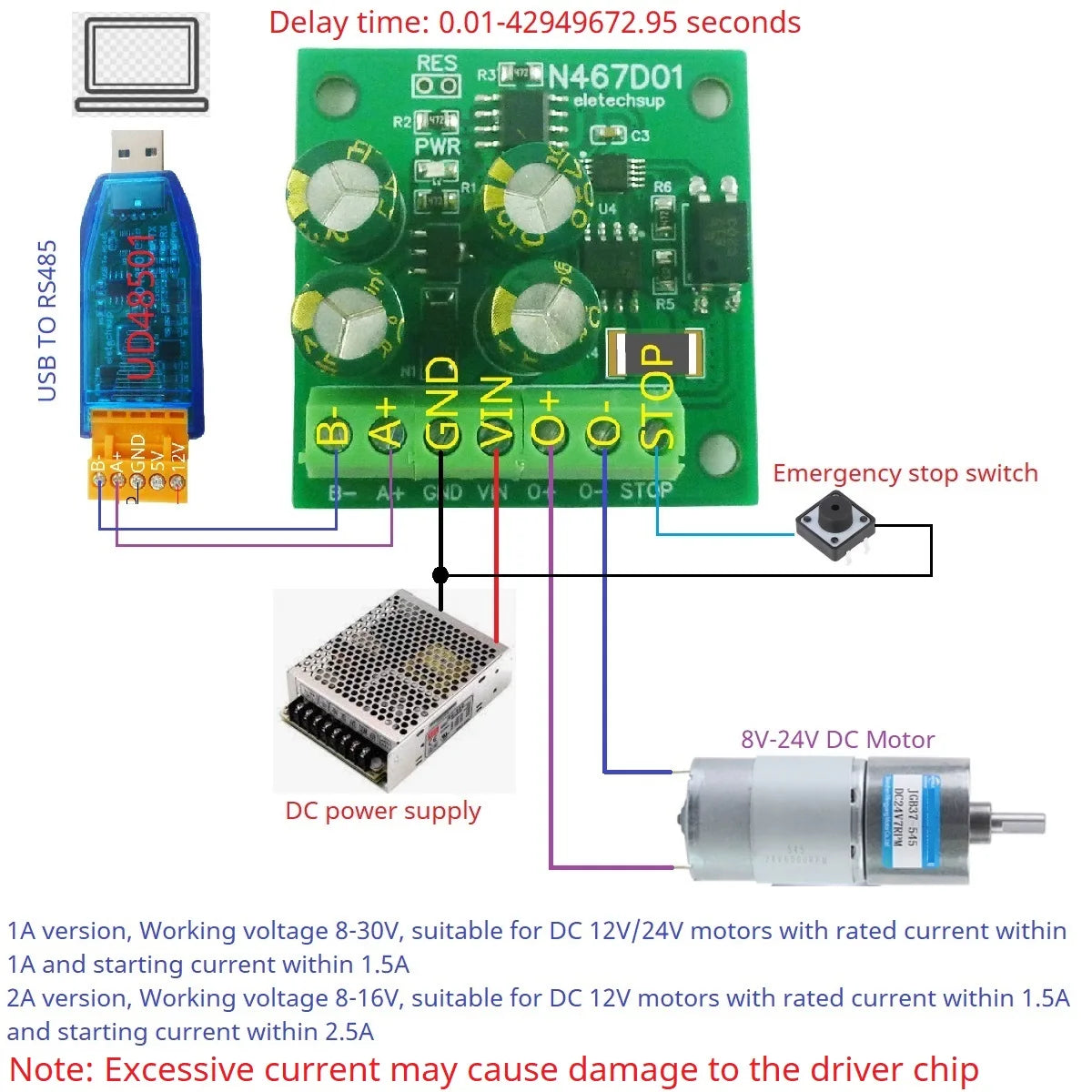

7 Super long delay 0.01-42949672.95 seconds (0-497 days)
8 In MODBUS command mode, up to 247 devices can be supported in parallel.
9The default baud rate is 9600BPS, which can be configured to support baud rates of 1200 2400 4800 9600 19200 38400 57600 115200, no/even/odd parity

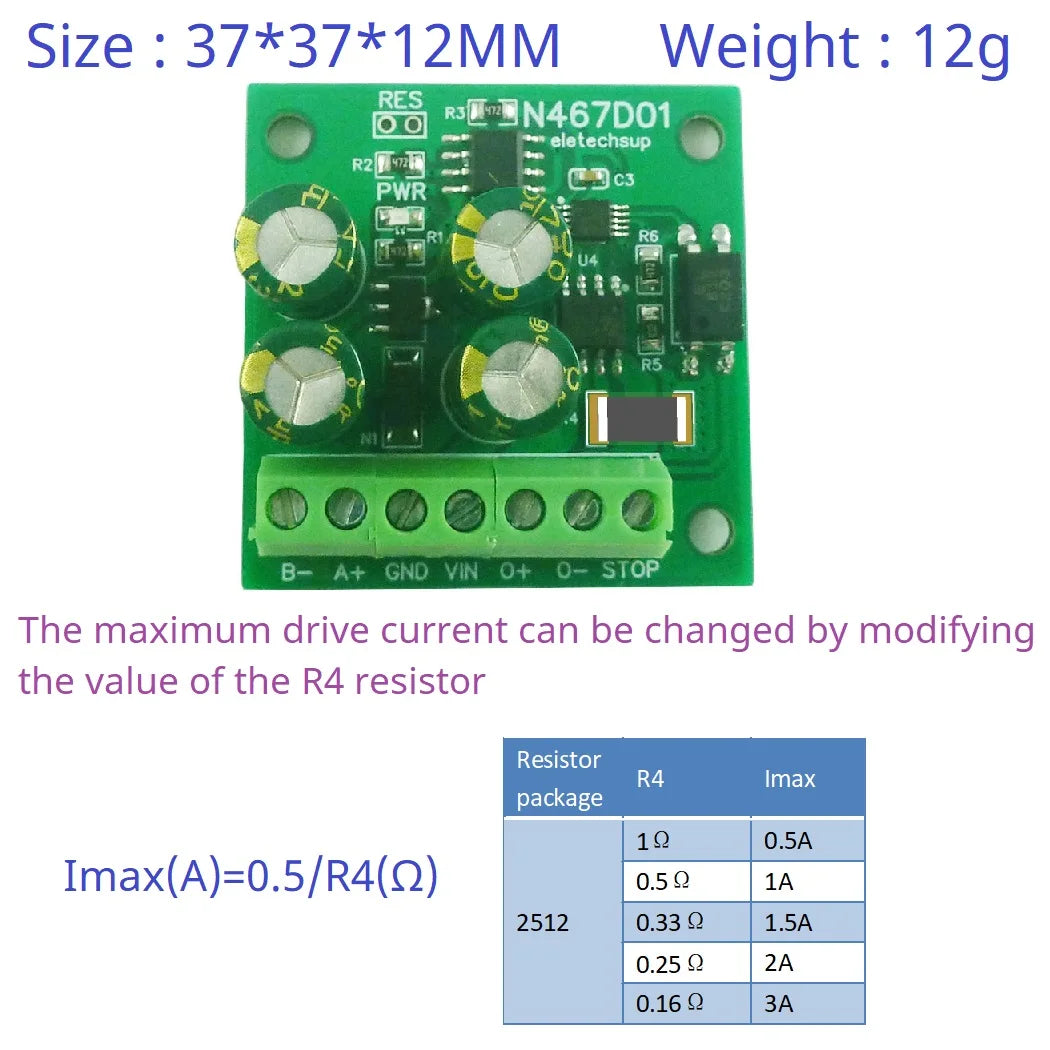

10 Size: 37*37*12MM
11 Weight: 12 grams

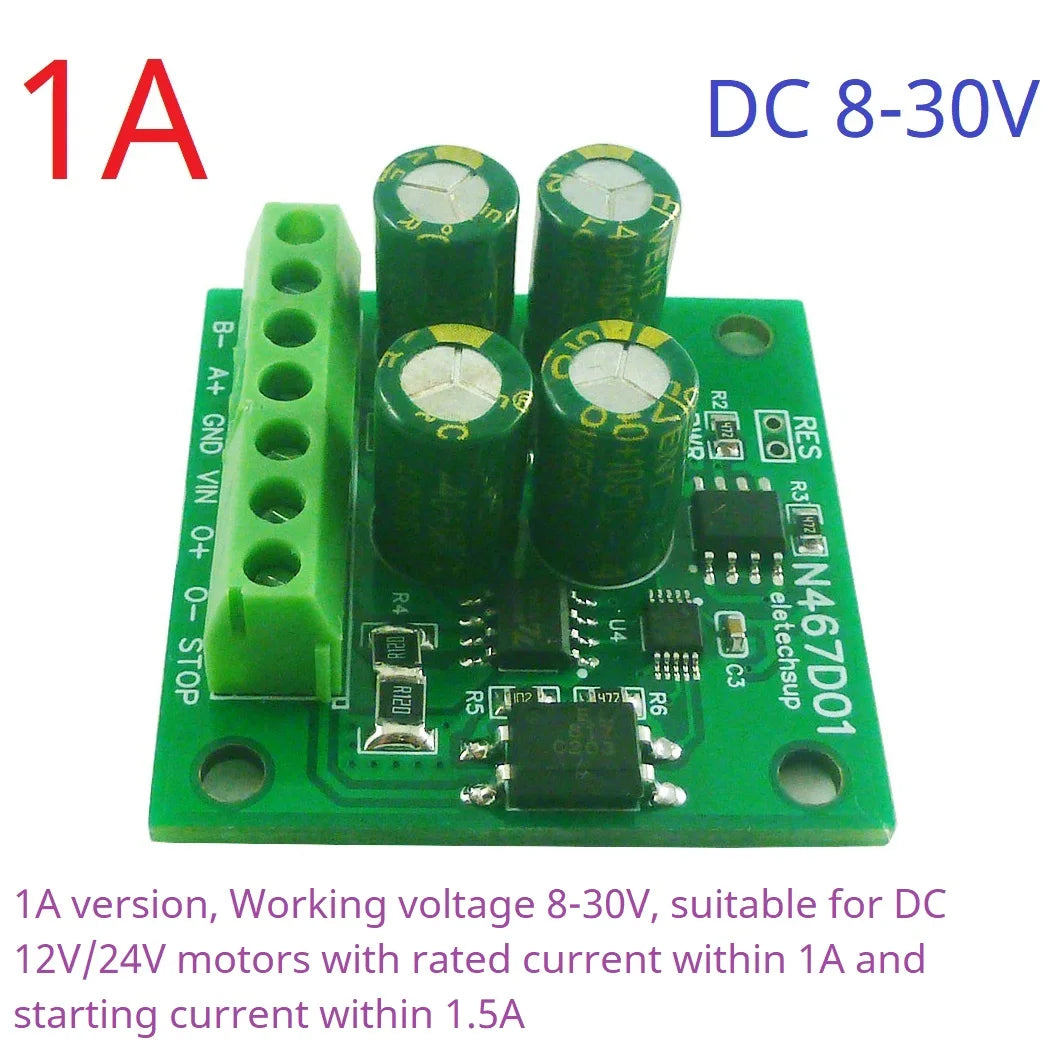

1A version, working voltage 8-30V, suitable for DC 12V/24V motors with rated current within 1A and starting current within 1.5A

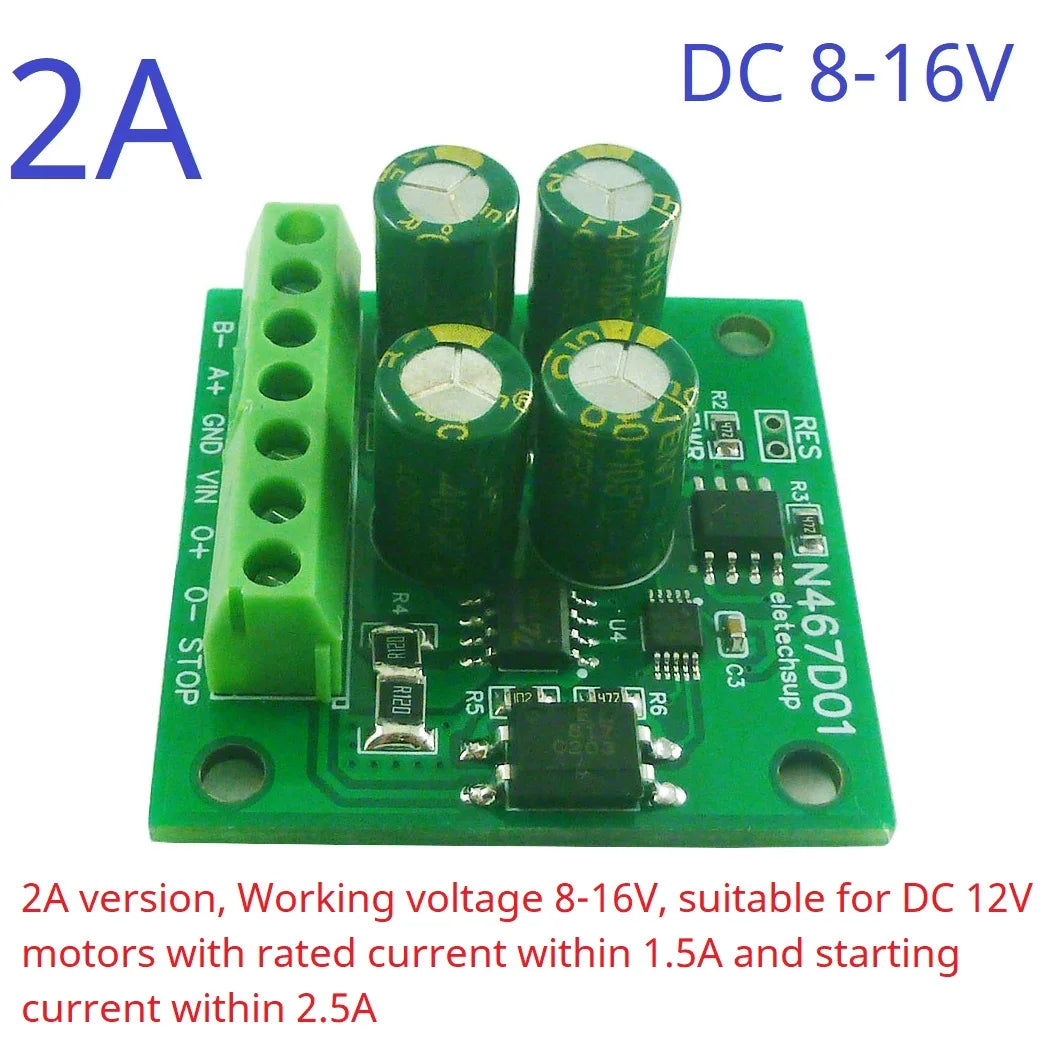

2A version, working voltage 8-16V, suitable for DC 12V motors with rated current within 1.5A and starting current within 2.5A
It can run independently after setting the 0-6 register parameters.
Note: Excessive current may cause damage to the driver chip
Notice:
1 The motor output port cannot be used as a constant voltage and constant current power supply. When connected to a non-motor load, the output will be automatically turned off.
2 The power supply power must be more than 3 times greater than the load power.
3 When using it for the first time, the 0X0006(6) register must be set to a value greater than 0 to start the motor.
Please refer to ''N467D01 MODBUS RTU Commamd'' for how to set parameters.
This is the small version. If your motor current reaches a maximum current of more than 2A, please choose the relay version(N477E02).
Typical Application:
Printers and office automation equipment
Sweeping robot
Small household appliances, children's toys
industrial equipment
home automation, smart home
PTZ IP camera
PLC IO expansion board
1 Working voltage: 1A version 8-24V; 2A version 8-16V
2 Standby current: 6MA
3 Supports the following MODBUS RTU function codes: write 06/16, read/03
4. The motor can be controlled to rotate forward/reversely/stop through instructions, and the delay time and number of cycles can be set.
5 Support under-voltage lockout protection/support short-circuit protection/support over-temperature shutdown circuit/automatic fault recovery
6. You can set the parameters in registers 0-6 at one time and run automatically next time you power on. You can also control the motor in real time through the 128 registers
7 Super long delay 0.01-42949672.95 seconds (0-497 days)
8 In MODBUS command mode, up to 247 devices can be supported in parallel.
9The default baud rate is 9600BPS, which can be configured to support baud rates of 1200 2400 4800 9600 19200 38400 57600 115200, no/even/odd parity
10 Size: 37*37*12MM
11 Weight: 12 grams
1A version, working voltage 8-30V, suitable for DC 12V/24V motors with rated current within 1A and starting current within 1.5A
2A version, working voltage 8-16V, suitable for DC 12V motors with rated current within 1.5A and starting current within 2.5A
It can run independently after setting the 0-6 register parameters.
Note: Excessive current may cause damage to the driver chip
Notice:
1 The motor output port cannot be used as a constant voltage and constant current power supply. When connected to a non-motor load, the output will be automatically turned off.
2 The power supply power must be more than 3 times greater than the load power.
3 When using it for the first time, the 0X0006(6) register must be set to a value greater than 0 to start the motor.
Please refer to ''N467D01 MODBUS RTU Commamd'' for how to set parameters.
This is the small version. If your motor current reaches a maximum current of more than 2A, please choose the relay version(N477E02).
Typical Application:
Printers and office automation equipment
Sweeping robot
Small household appliances, children's toys
industrial equipment
home automation, smart home
PTZ IP camera
PLC IO expansion board
