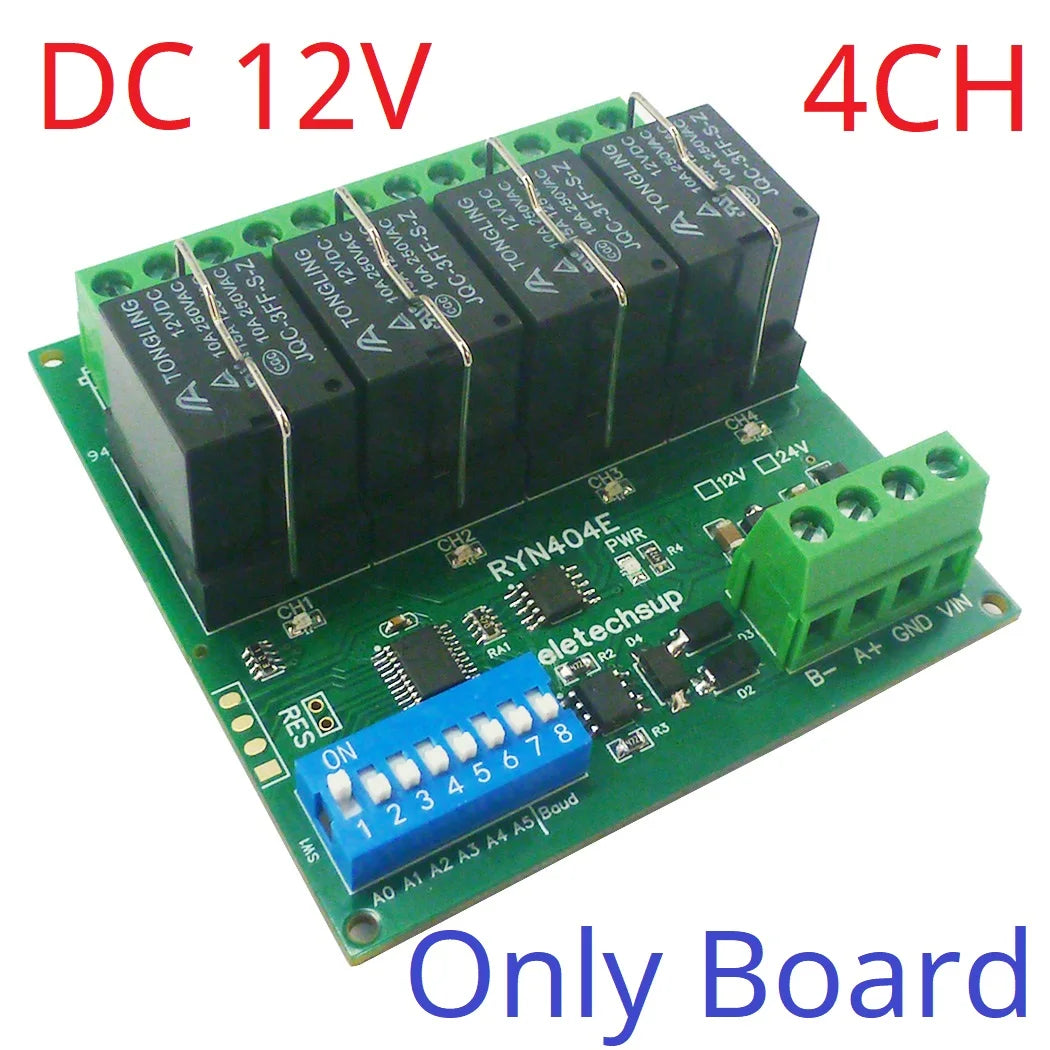

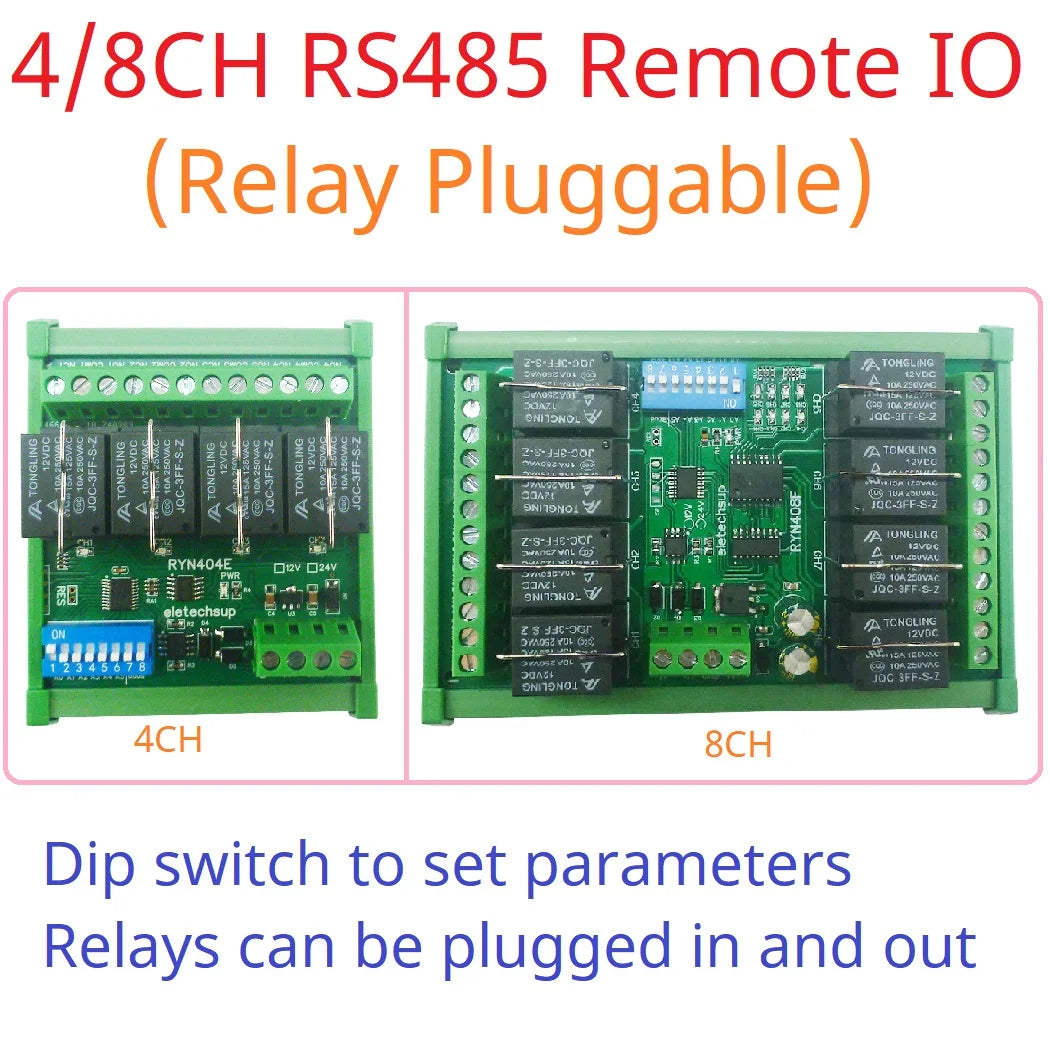

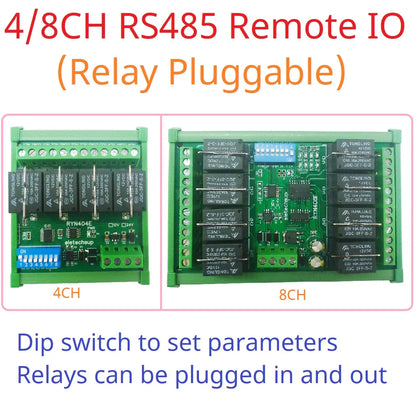

A relay is a mechanical switch, and no matter how good the quality of the relay is, it has a certain life span. In order to make it easier to replace damaged relays, eletechsup designed and produced the RYN404E RYN408F 4/8 channel 7-24V RS485 pluggable relay module

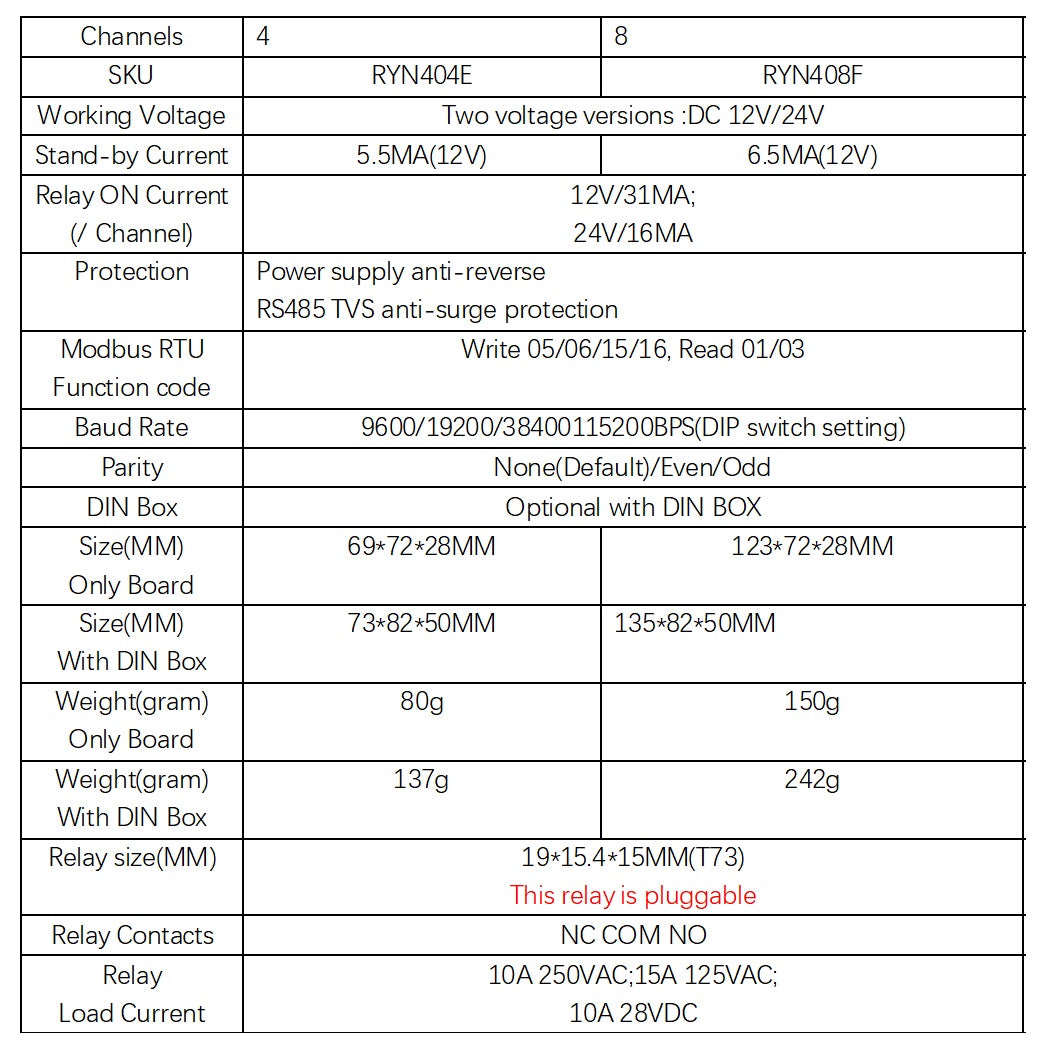

Function:

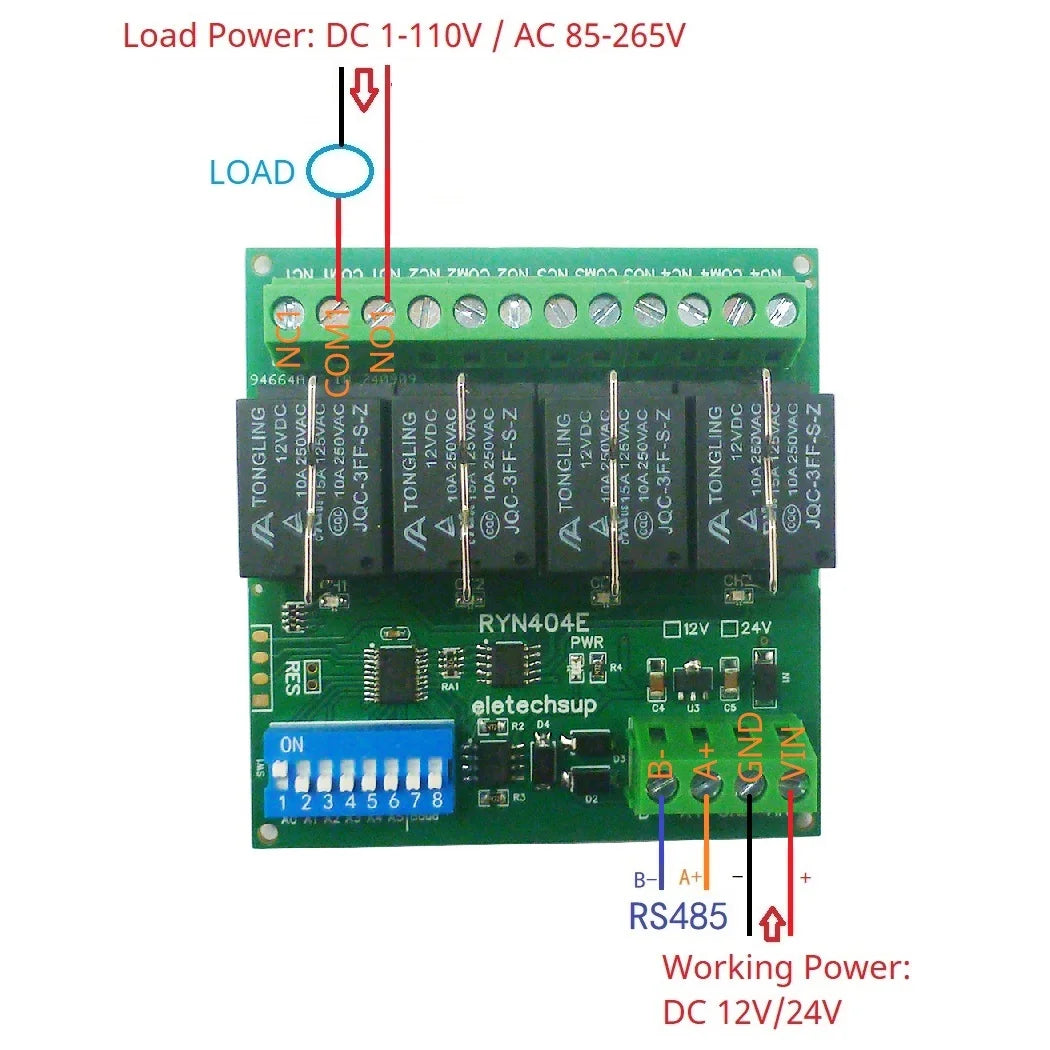

1: Working Voltage DC 12V/24V;
2: Standby current (all relays closed) 4.8MA, 1 relay open 50MA, ...,16 relay open 800MA
3: ''Open'' ''Close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' ''Open all'' ''Close all''8 Commands
4: MODBUS RTU command, Write 05/06/15/16, Read 01/03
5: Under the ''Delay'' command ,the maximum delay is 255 seconds;

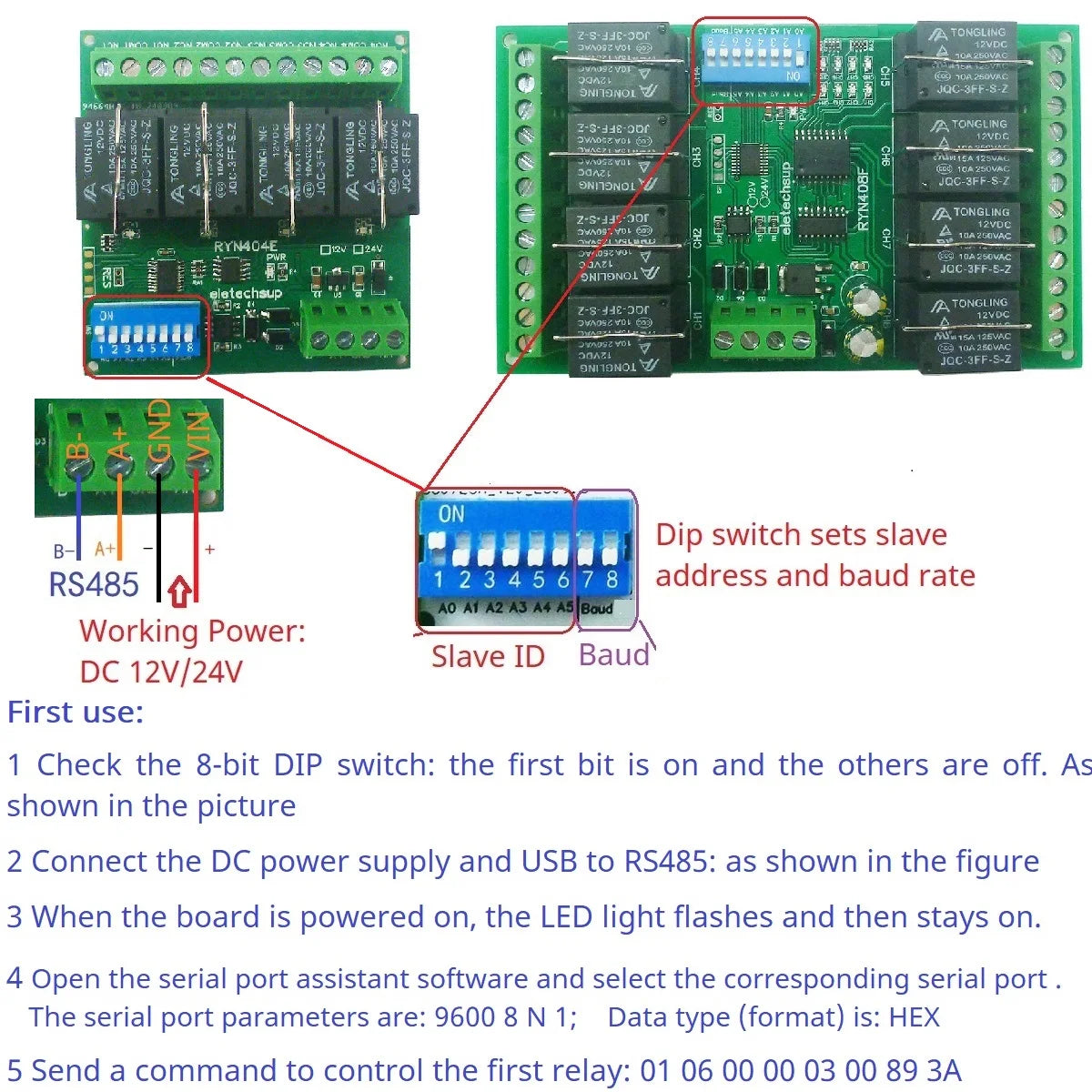

6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;

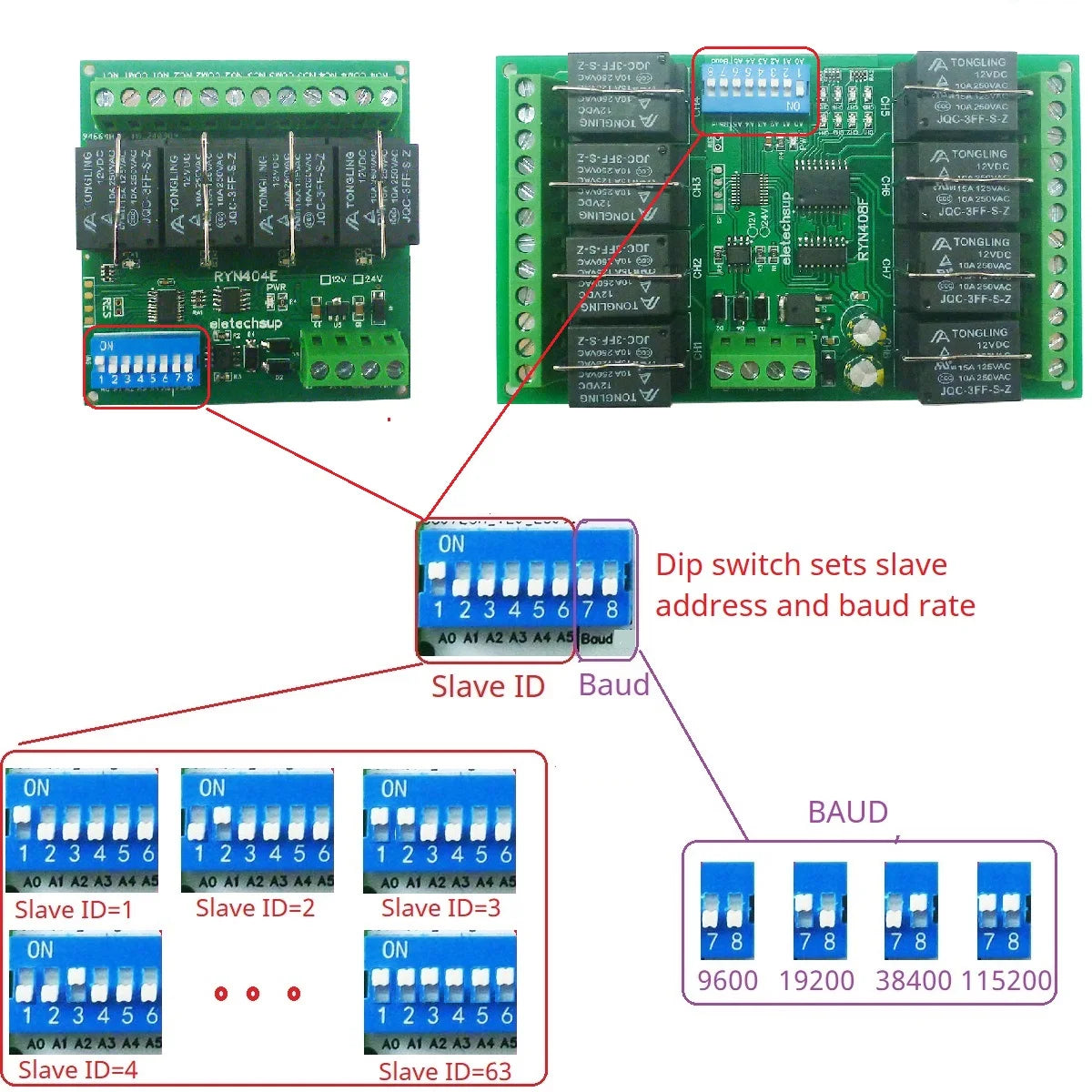

7 Set the Slave ID through the DIP Switch: 1-63 ID
8 Set BaudRate via DIP switch : 9600/19200/38400/115200BPS
9 Parity :None(Default)/Even/Odd

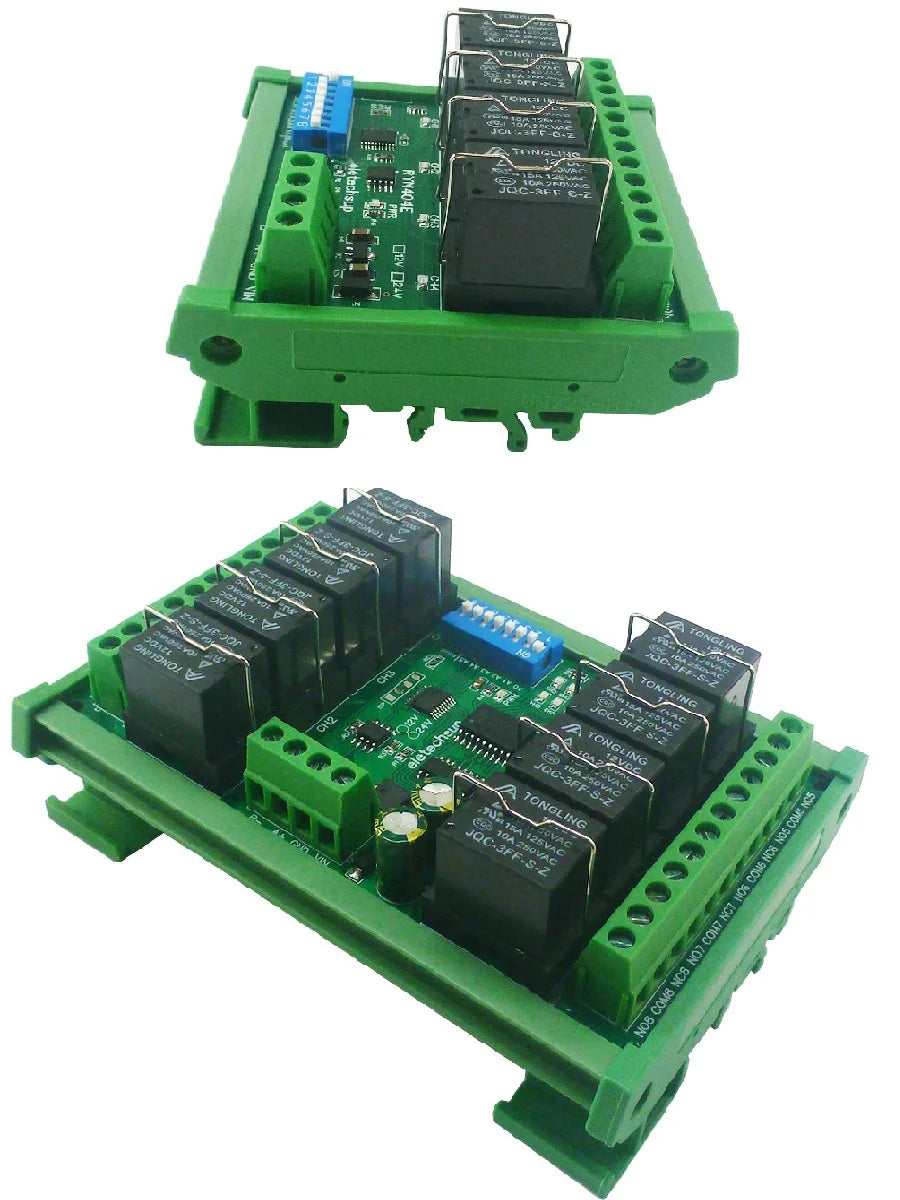

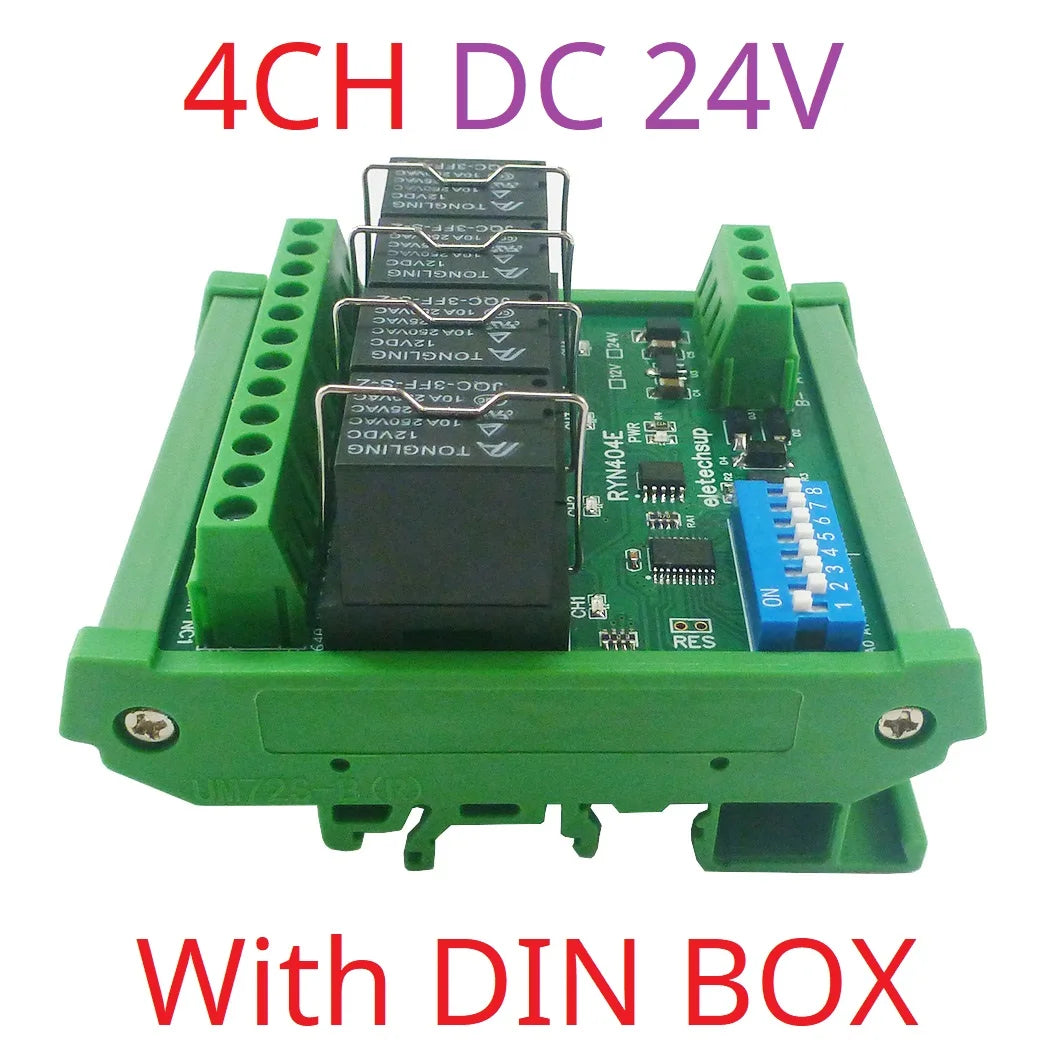

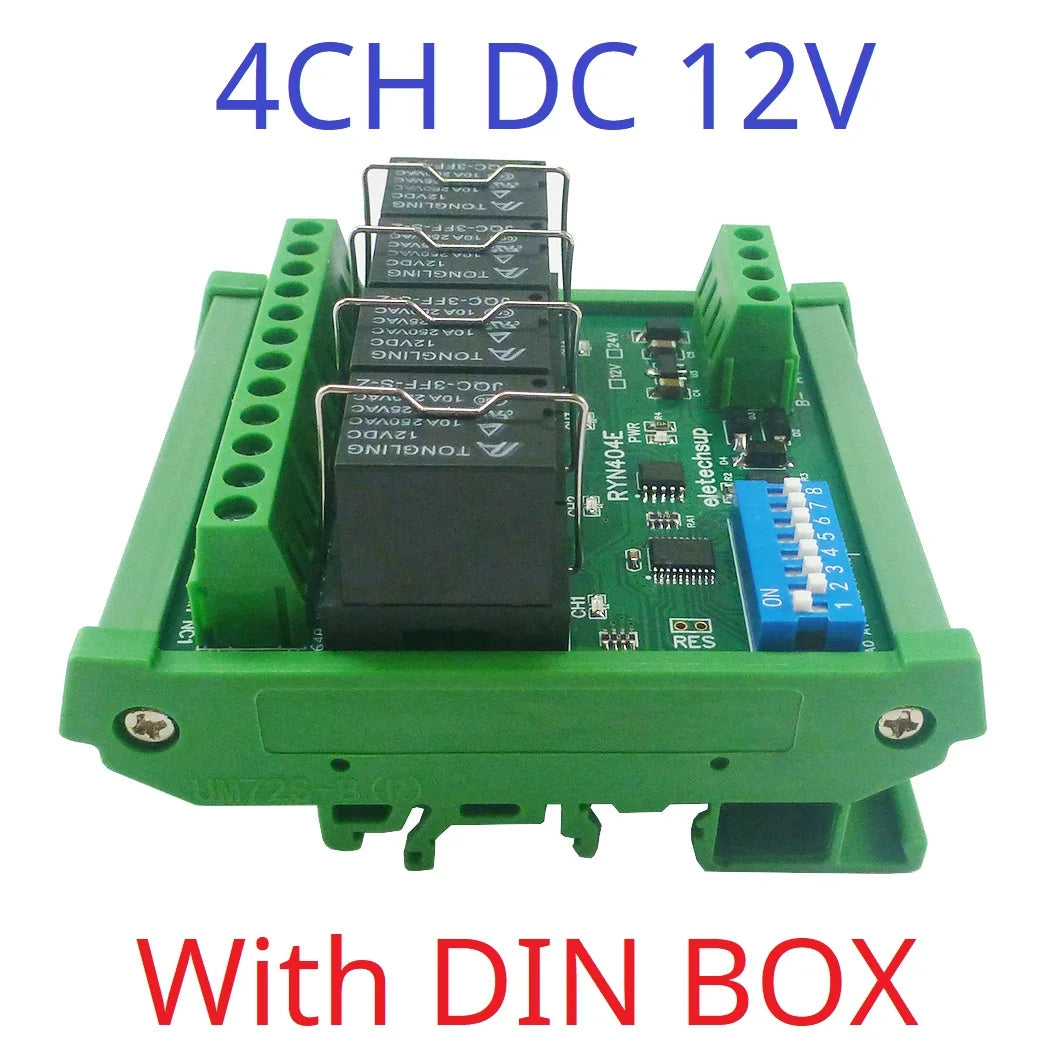

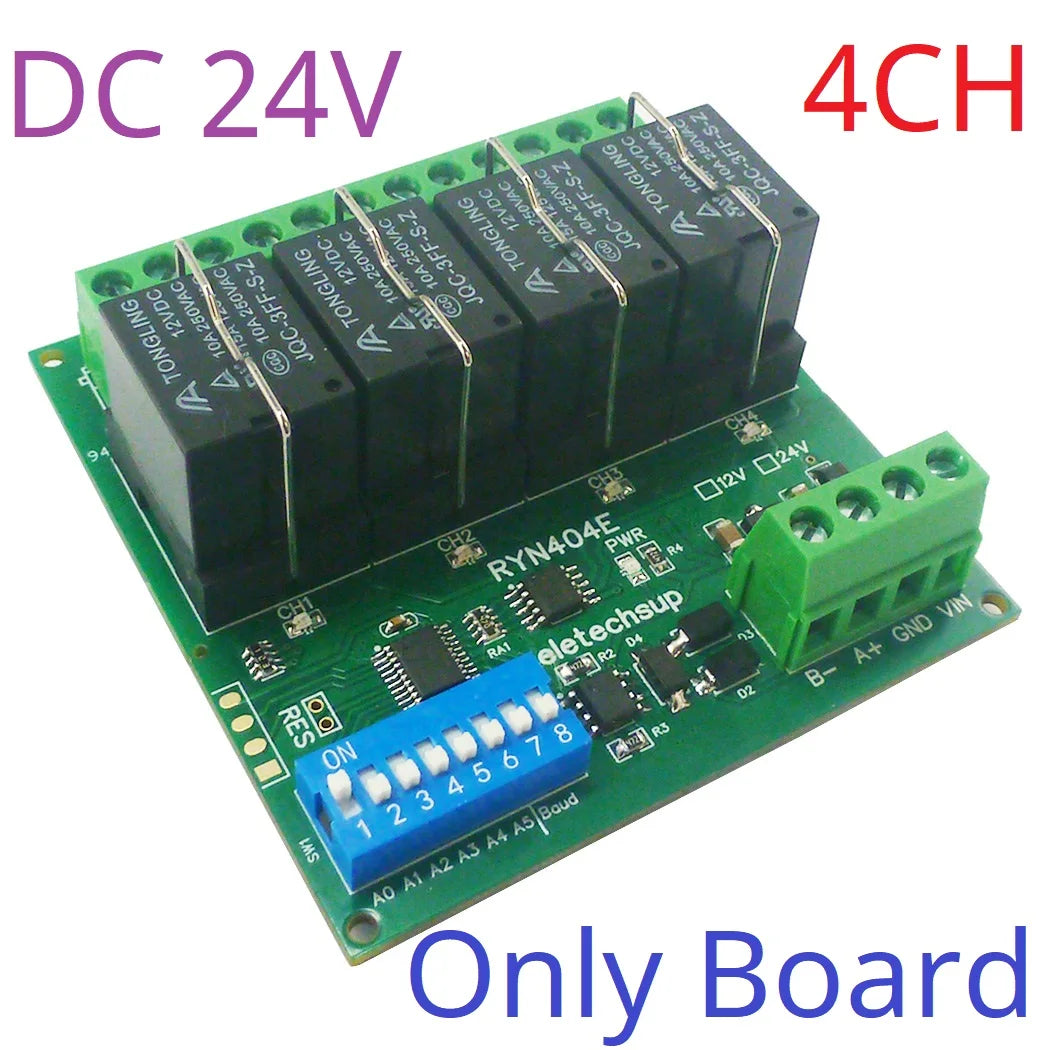

10 4CH Size :69*72*28MM(Only Board);73*82*50MM(With DIN Box);

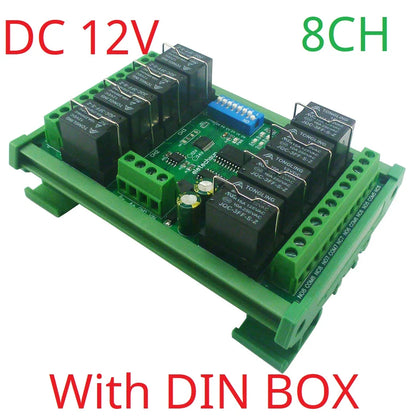

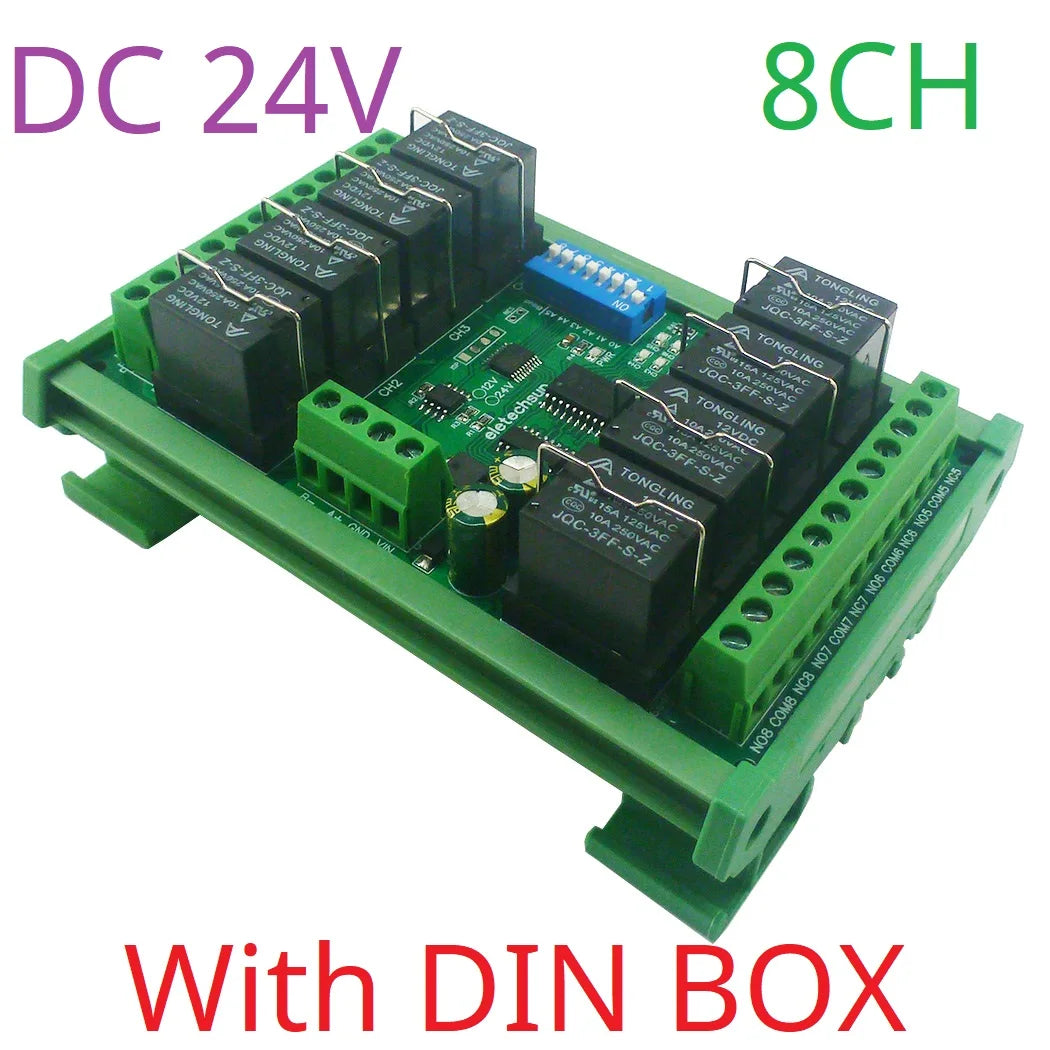

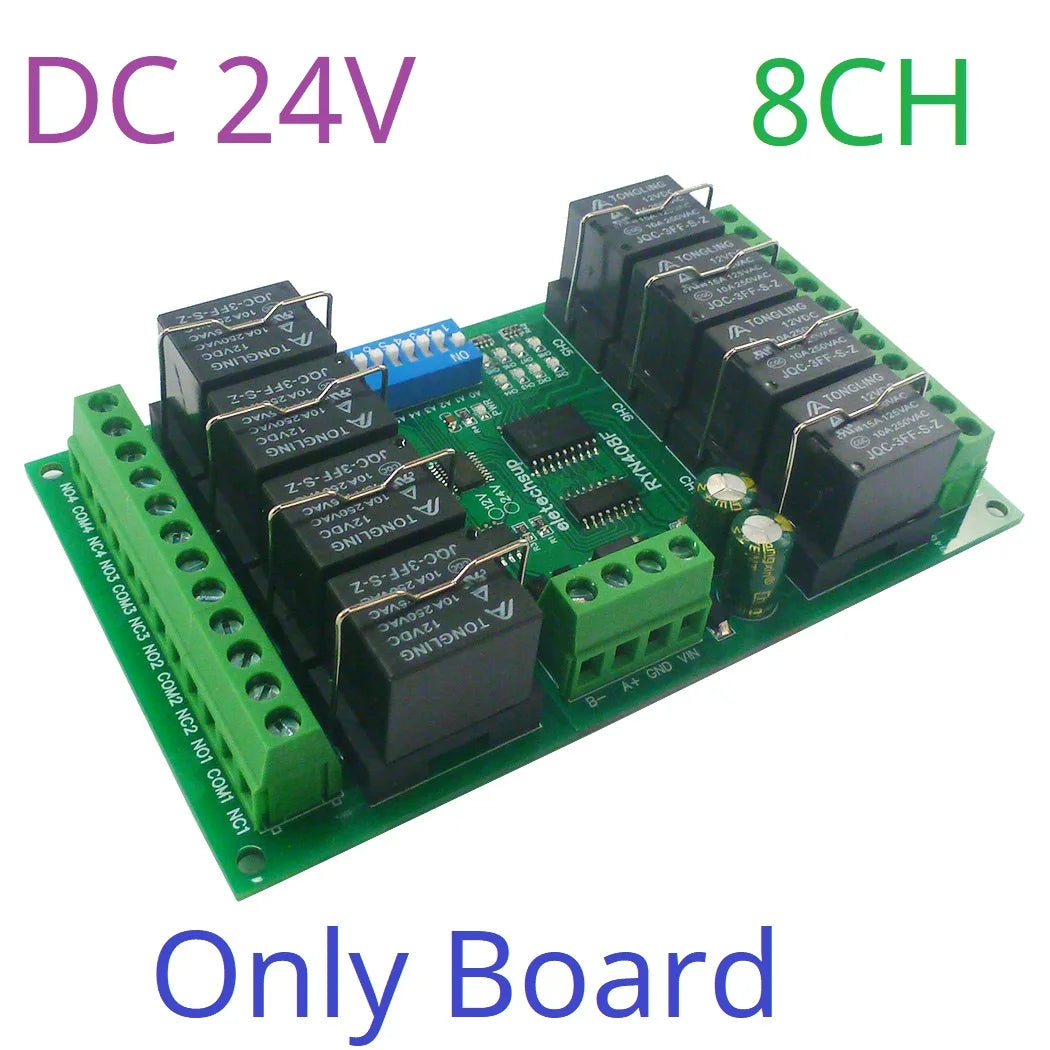

11 8CH Size :123*72*28MM(Only Board);135*82*50MM(With DIN Box);
12 4CH Weight : 80g(Only Board),137g(With DIN Box)
13 8CH Weight :150g(Only Board),242g(With DIN Box)
14 Maximum load: 10A 250VAC;10A 28VDC
For more information, please contact me
Application
PLC HMI DO Expansion Board
Smart Home,Home Automation ,Automated industry;
PTZ CCTV Camera
Security Monitoring
Identification system;
Automatic curtain control
LED Control
Farm water supply system
Stirring system

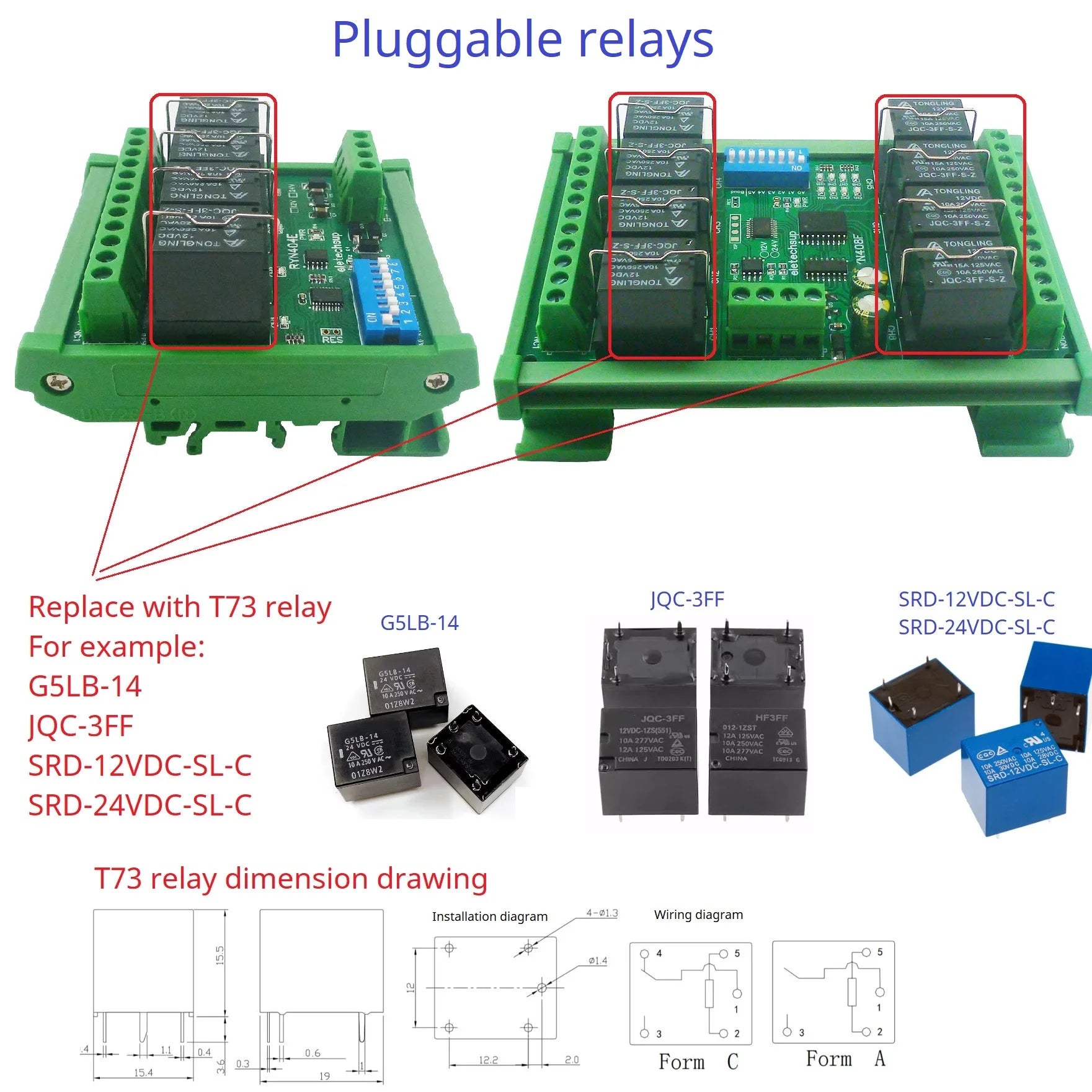

Replace with T73 relay For example:
G5LB-14
JQC-3FF
SRD-12VDC-SL-C
SRD-24VDC-SL-C
