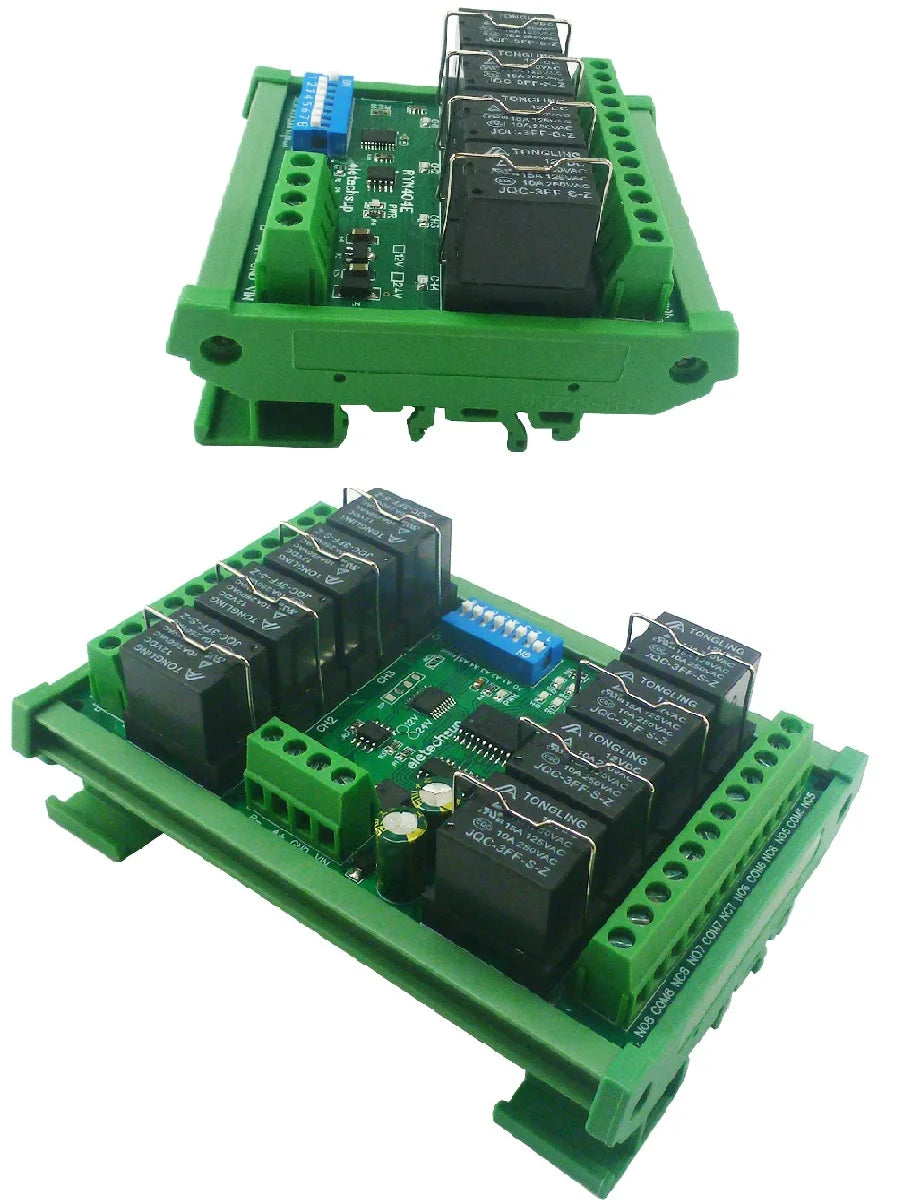

T73 Plug-in Relay Module – RS485 Modbus RTU Remote IO Controller with Momentary Latching Interlock Delay Switch for DIY Smart Home RYN404E/RYN408F
T73 Plug-in Relay Module – RS485 Modbus RTU Remote IO Controller with Momentary Latching Interlock Delay Switch for DIY Smart Home RYN404E/RYN408F
Regular price
$18.89 USD
Regular price
$18.89 USD
Sale price
$18.89 USD
Taxes included.

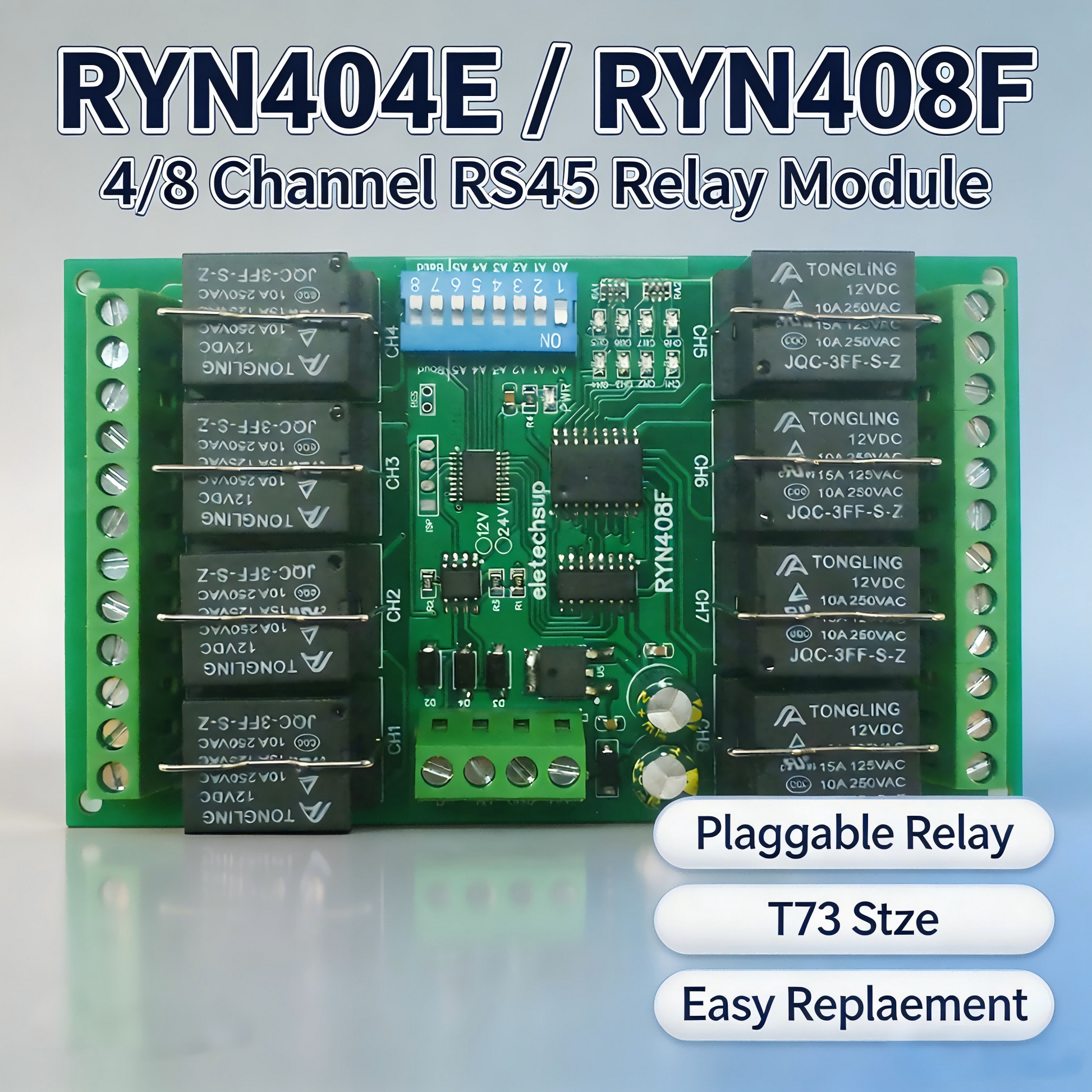

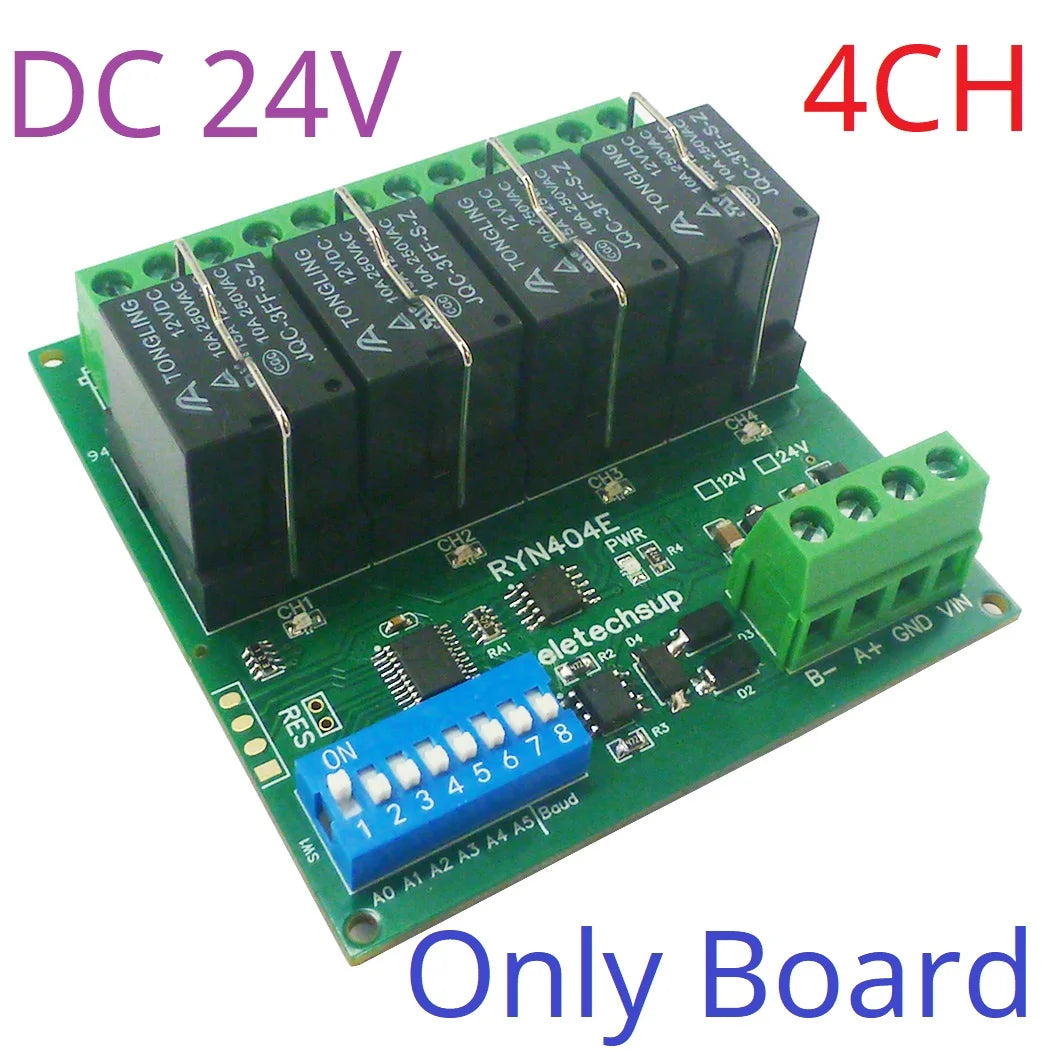

RYN404E RYN408F is a 4/8 channel multifunctional RS485 relay designed and produced by eletechsup. It adopts a pluggable relay design and uses a very common T73 size relay. In the event of a damaged relay, it can be easily replaced.

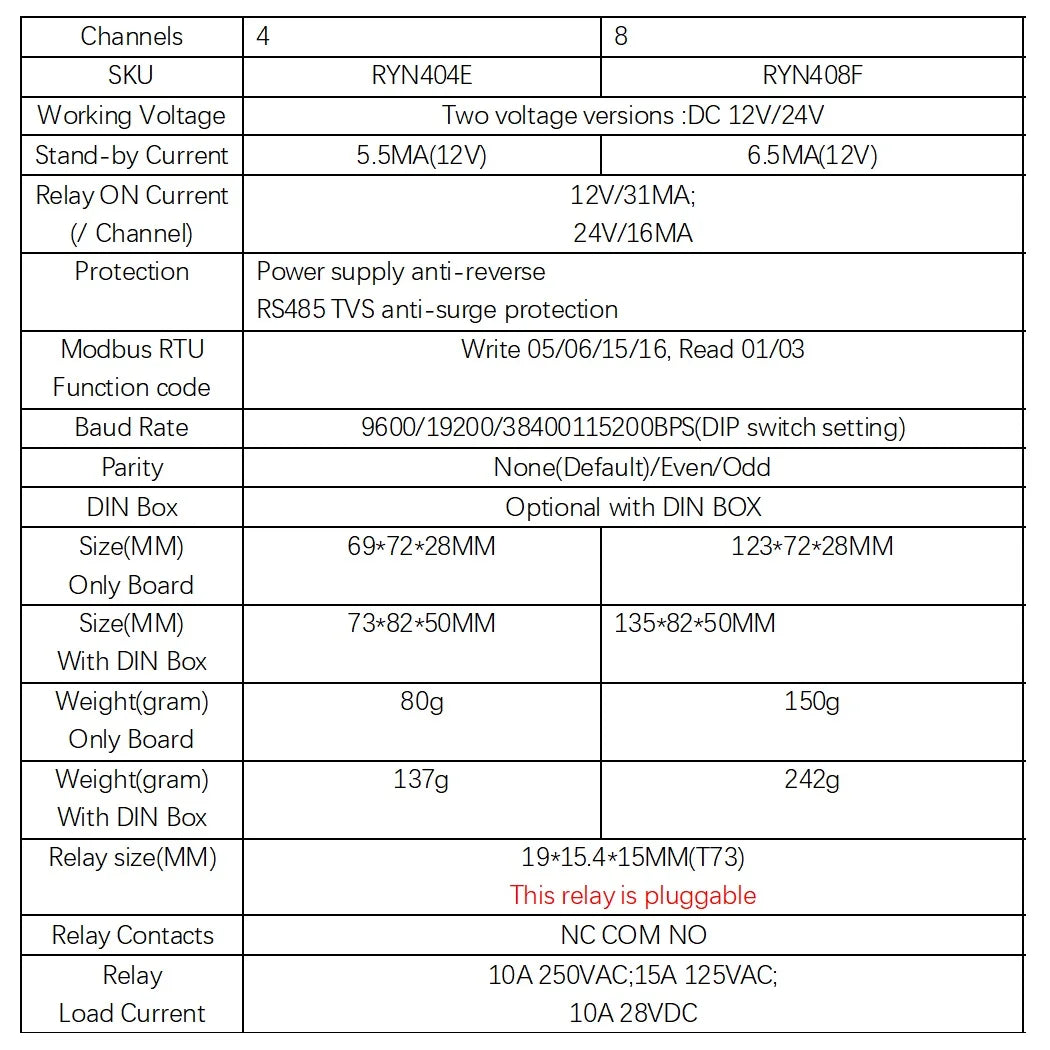

Function:
1: Working Voltage DC 12V/24V;
2: Standby current (all relays closed) 4.8MA, 1 relay open 50MA, ...,
3: ''Open'' ''Close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' ''Open all'' ''Close all''8 Commands
4: MODBUS RTU command, Write 05/06/15/16, Read 01/03
5: Under the ''Delay'' command ,the maximum delay is 255 seconds;
6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;
7 Set the Slave ID through the DIP Switch: 1-63 ID
8 Set BaudRate via DIP switch : 9600/19200/38400/115200BPS
9 Parity :None(Default)/Even/Odd

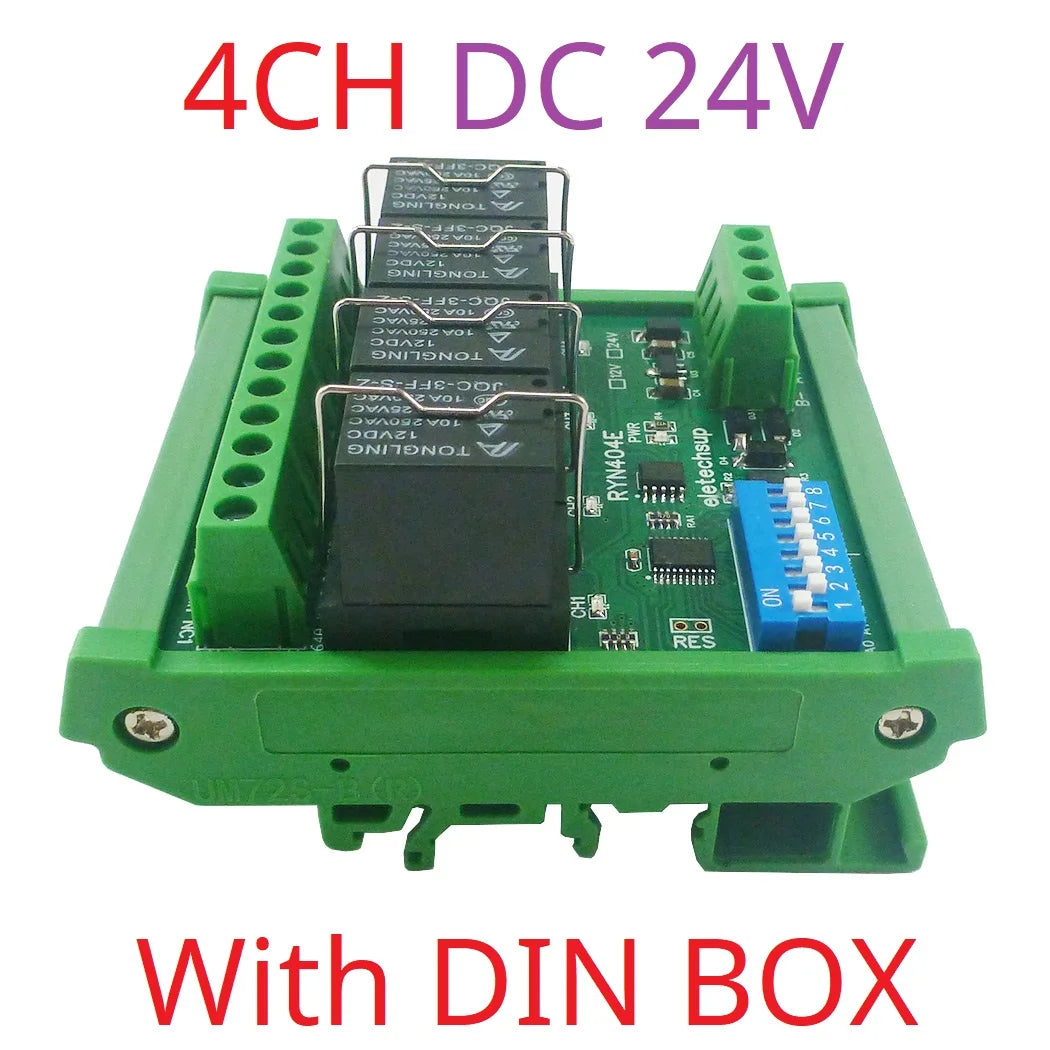

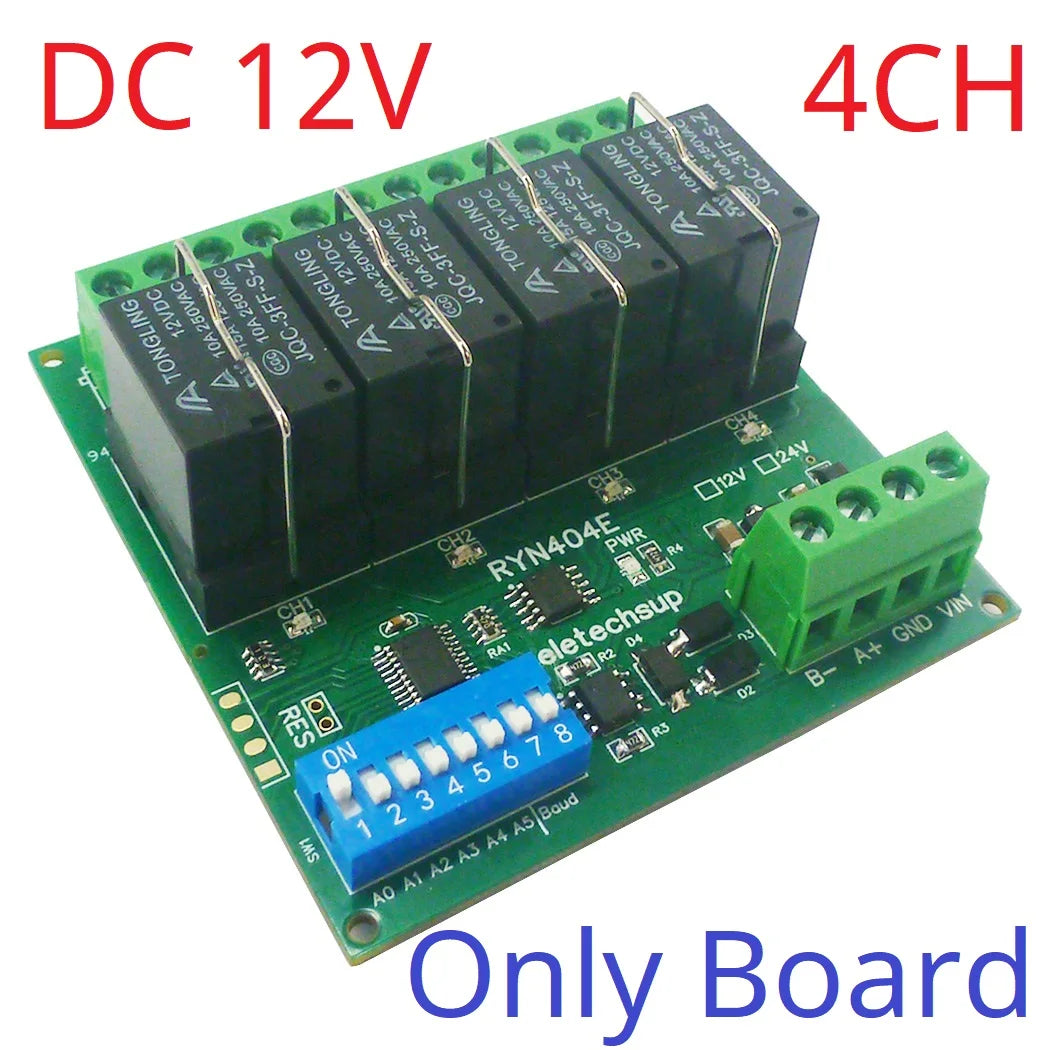

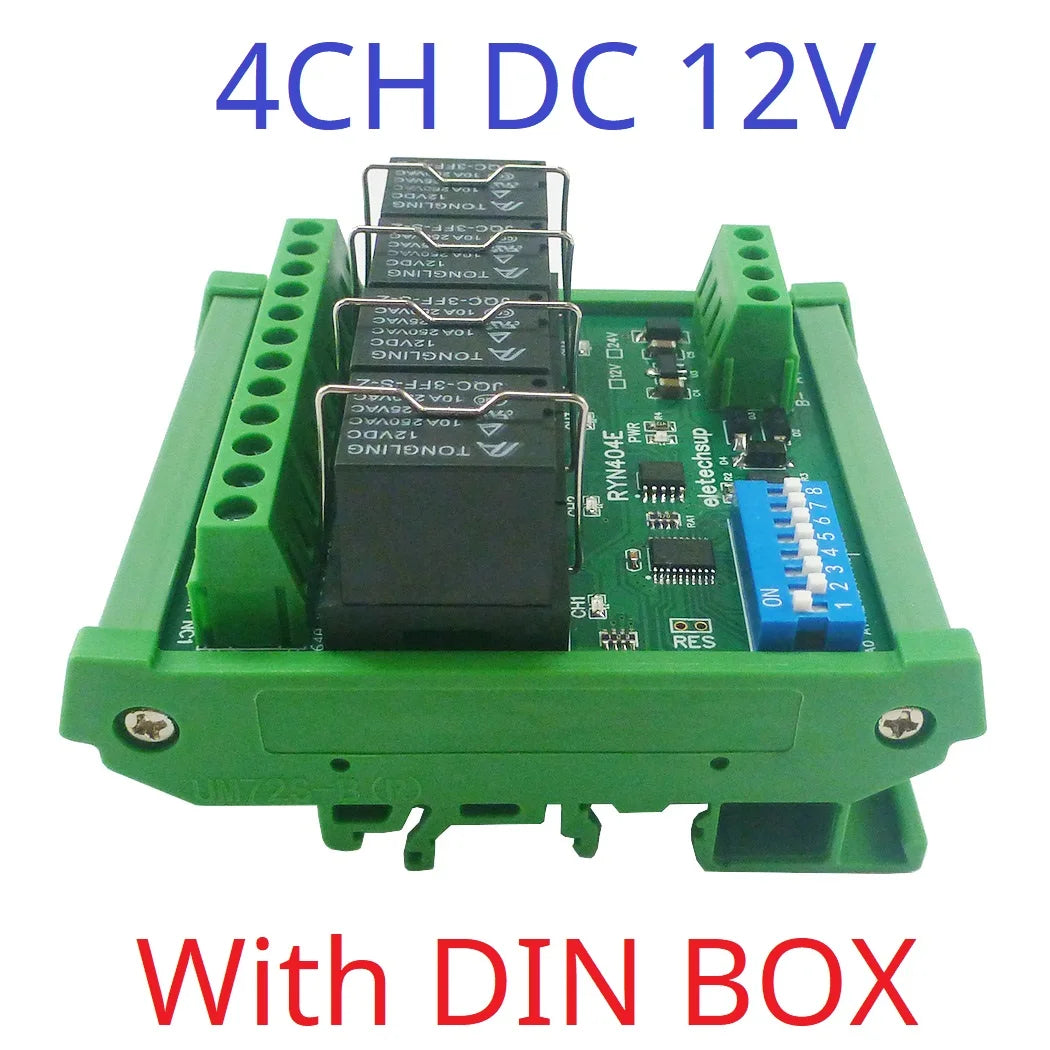

10 4CH Size :69*72*28MM(Only Board);73*82*50MM(With DIN Box);

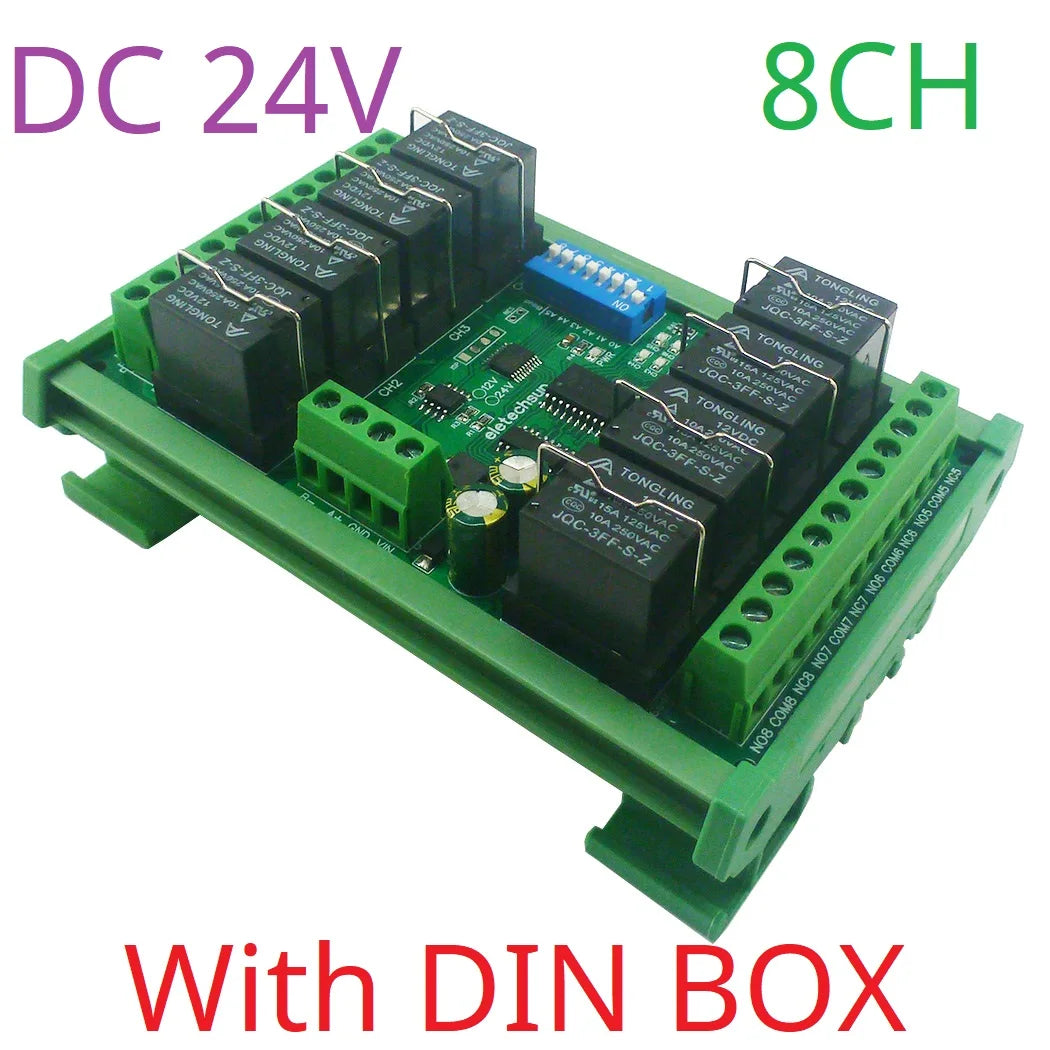

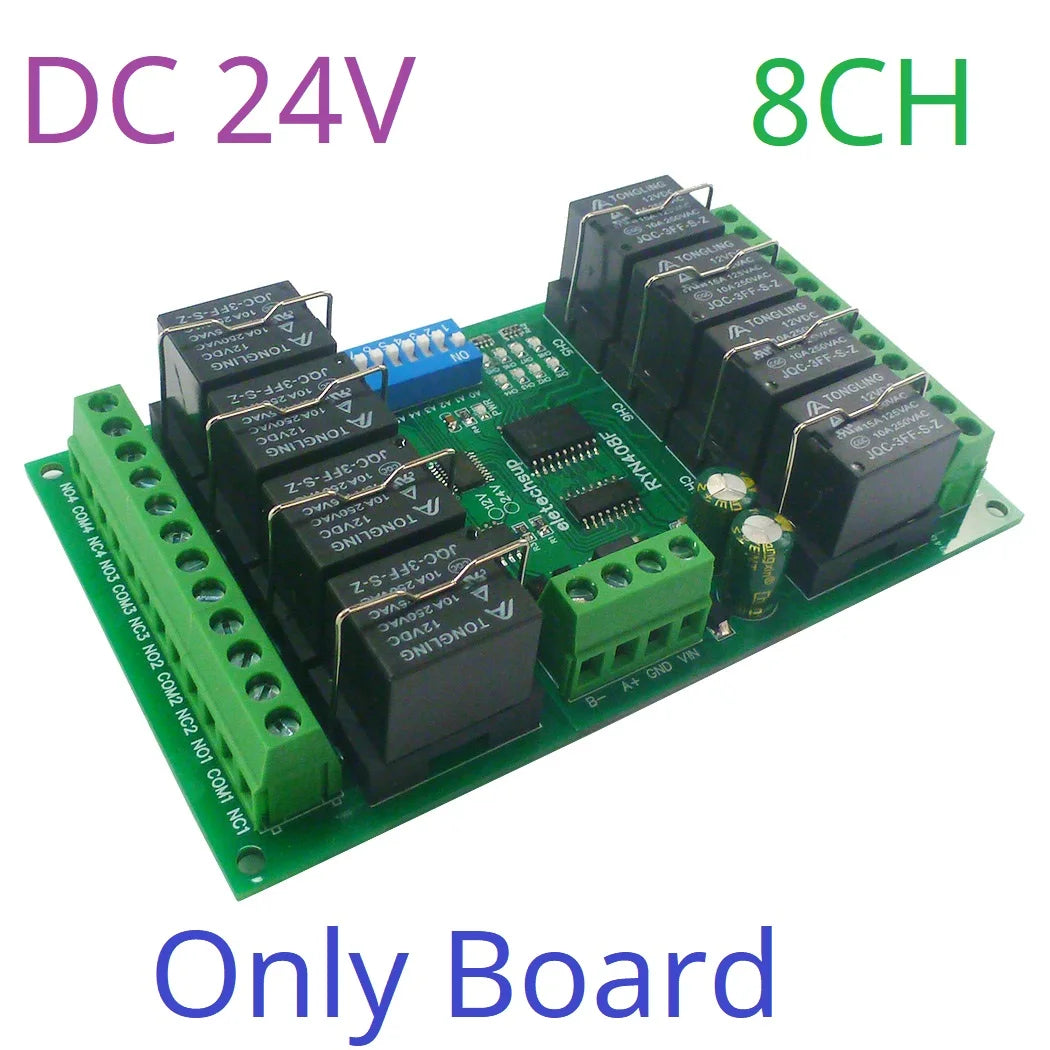

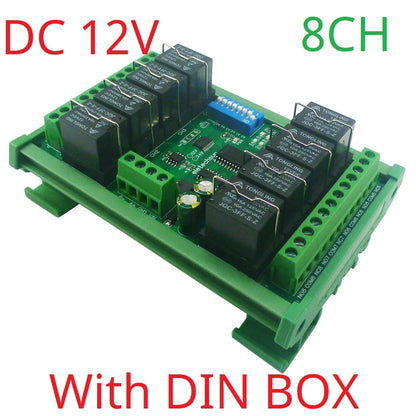

11 8CH Size :123*72*28MM(Only Board);135*82*50MM(With DIN Box);
12 4CH Weight : 80g(Only Board),137g(With DIN Box)
13 8CH Weight :150g(Only Board),242g(With DIN Box)
14 Maximum load: 10A 250VAC;10A 28VDC
For more information, please contact me

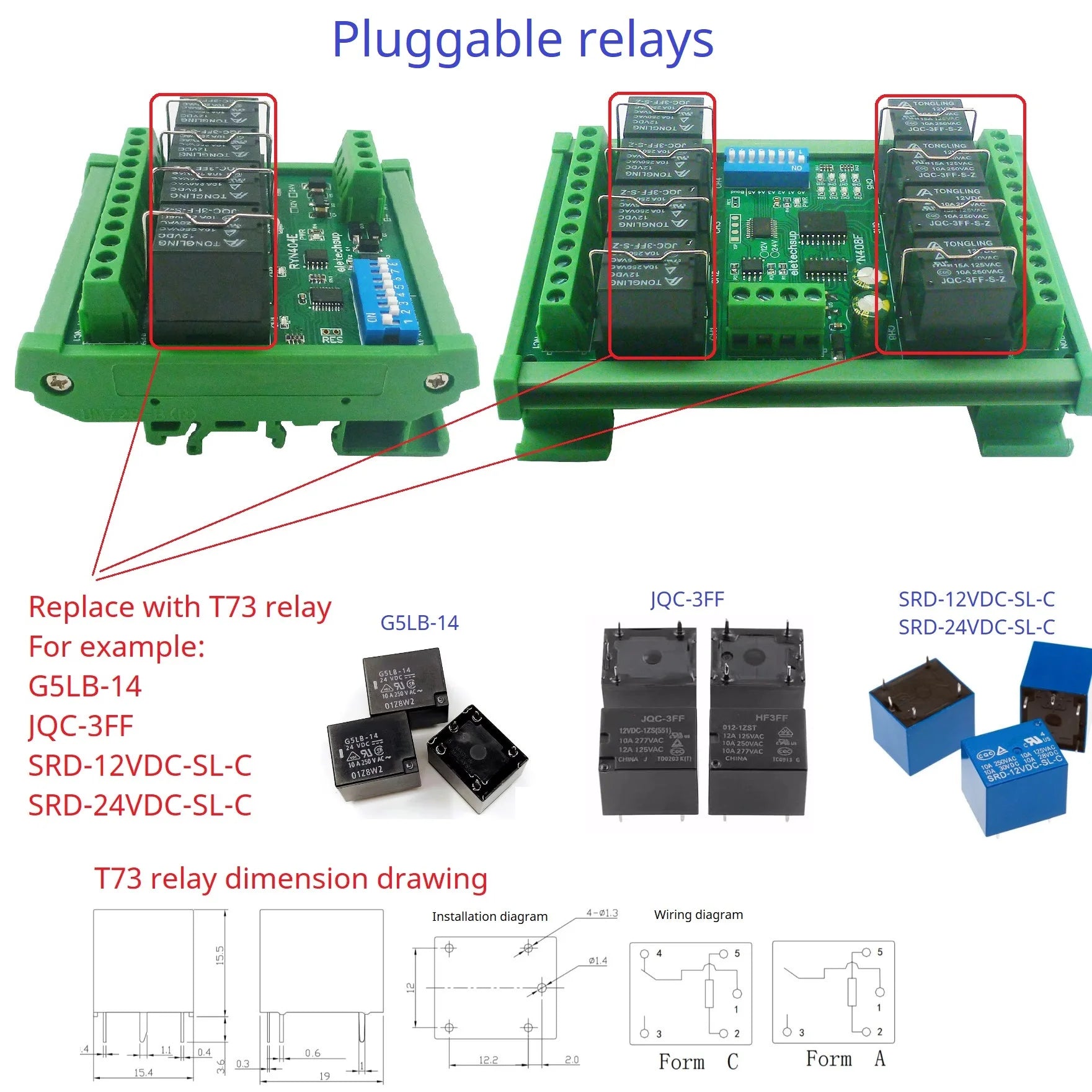

Replace with T73 relay
For example:
G5LB-14
JQC-3FF
SRD-12VDC-SL-C
SRD-24VDC-SL-C

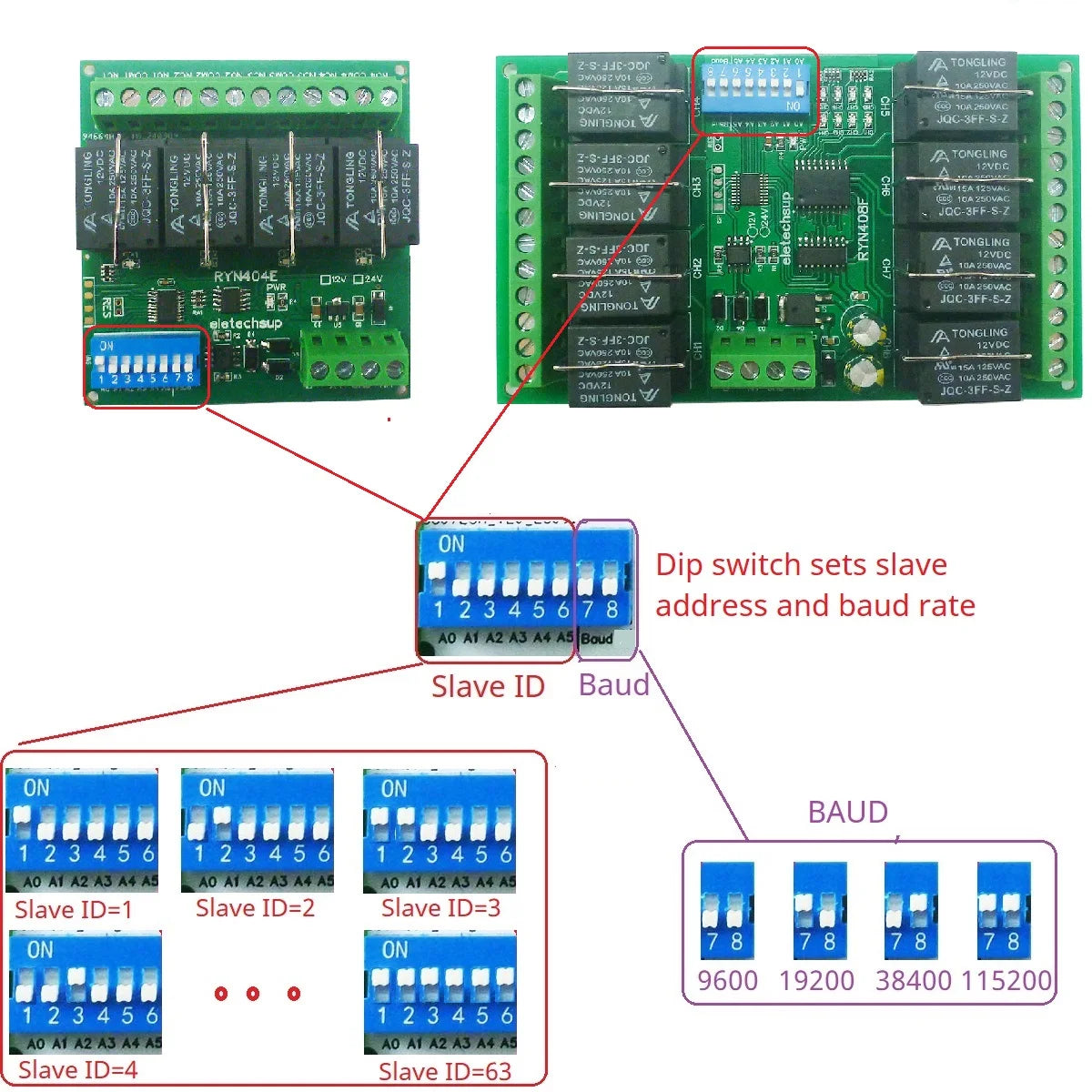

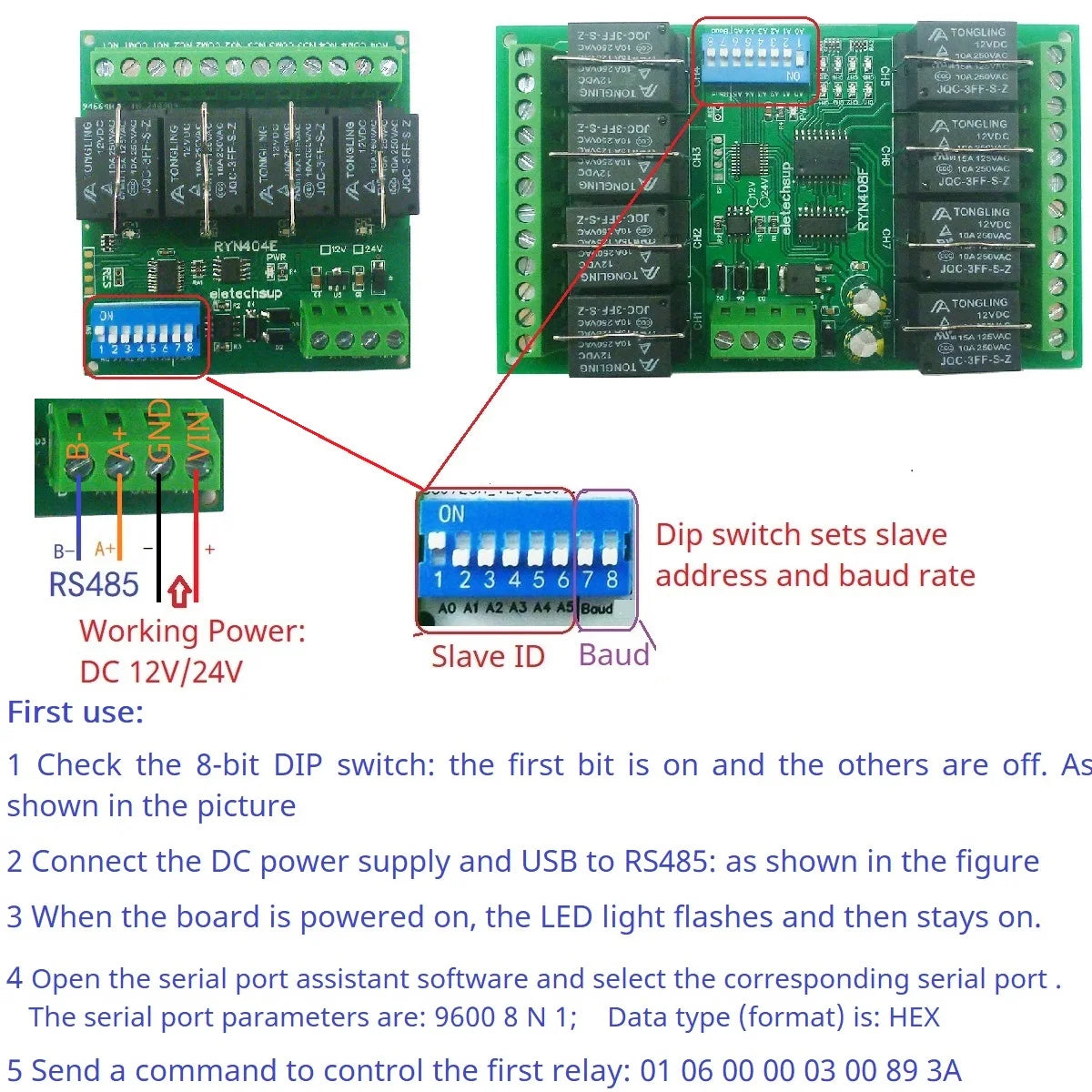

As shown in the figure above, set the slave address and baud rate parameters through the DIP switch.
