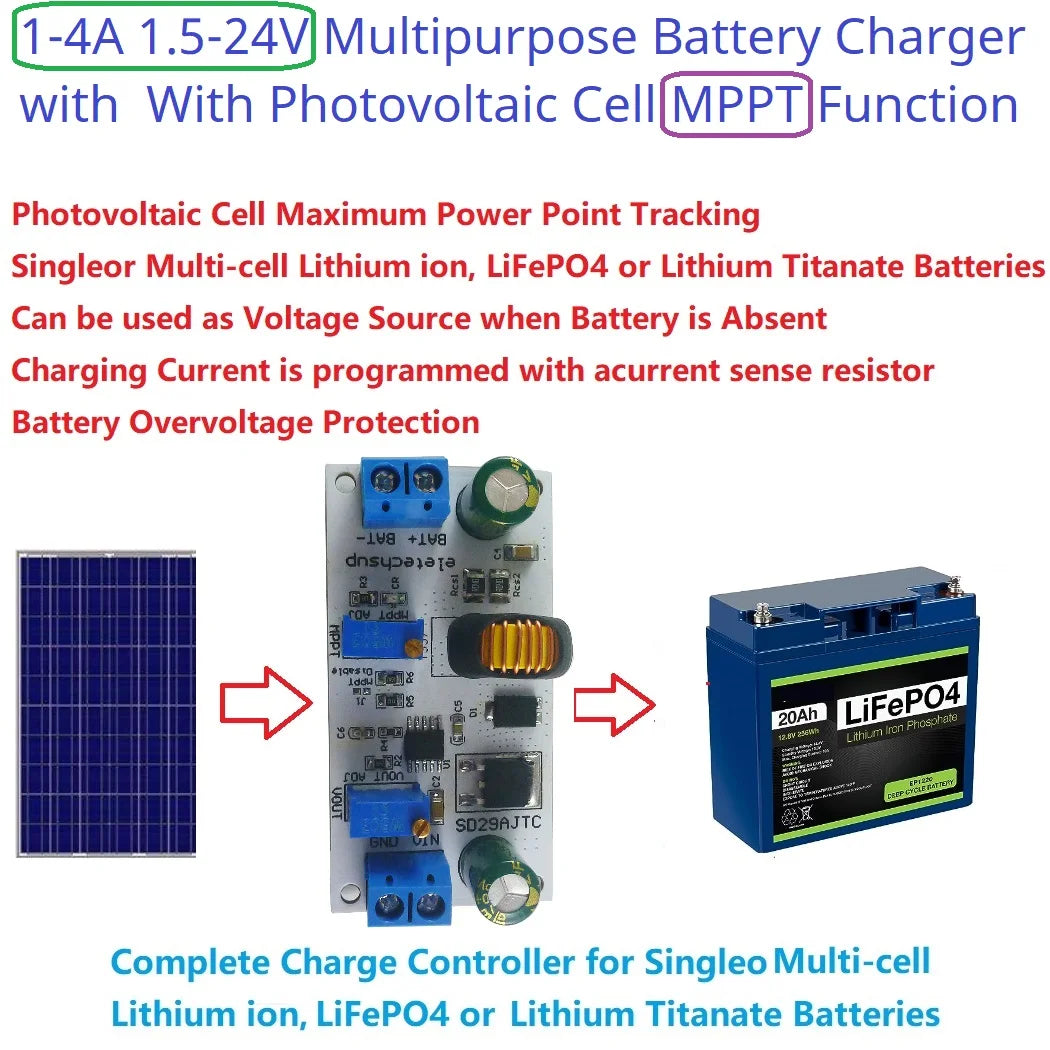

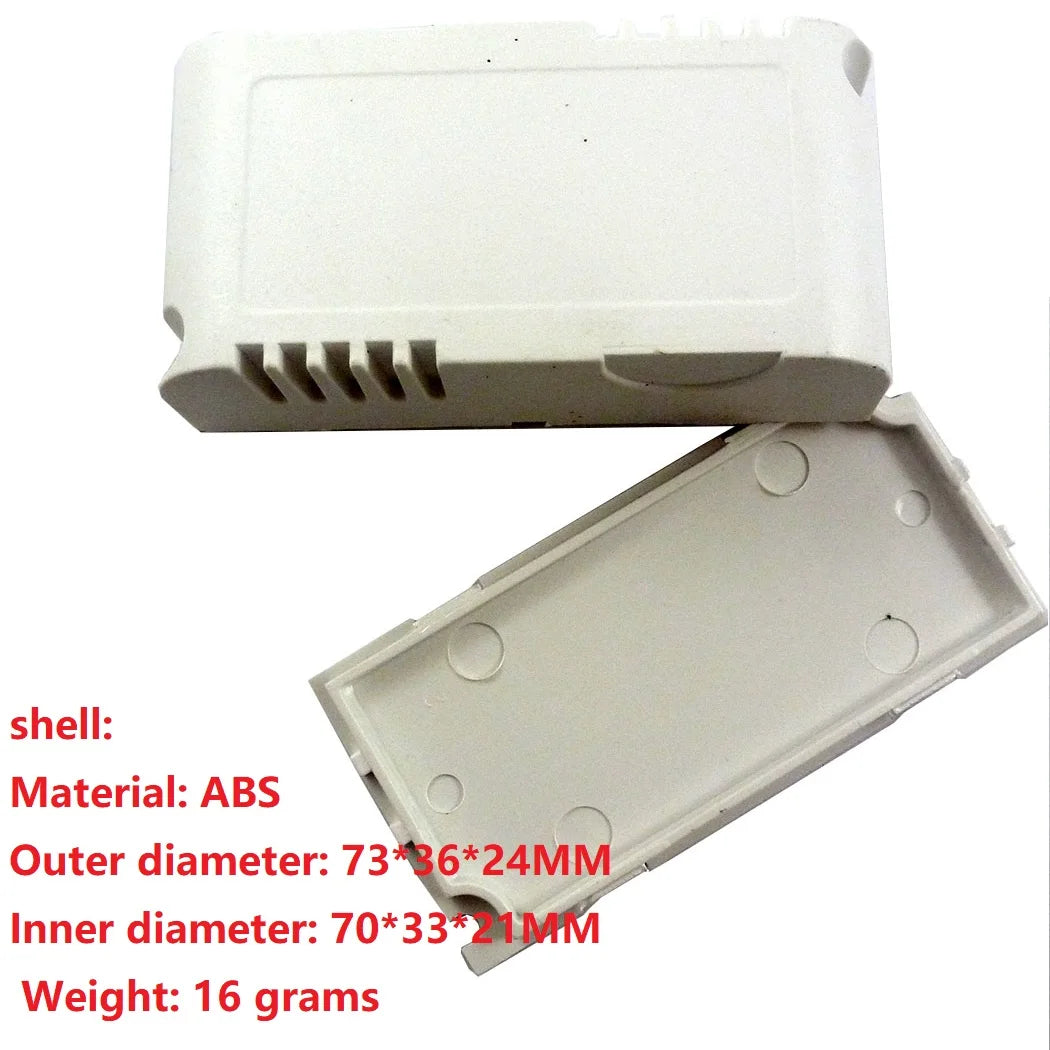

SD29AJTC 4A MPPT Solar Charge Controller – 3.6-24V Buck Charger Module for Li-ion LiPo LiFePO4 Batteries Compatible with 9V-24V Solar Panels

Description:

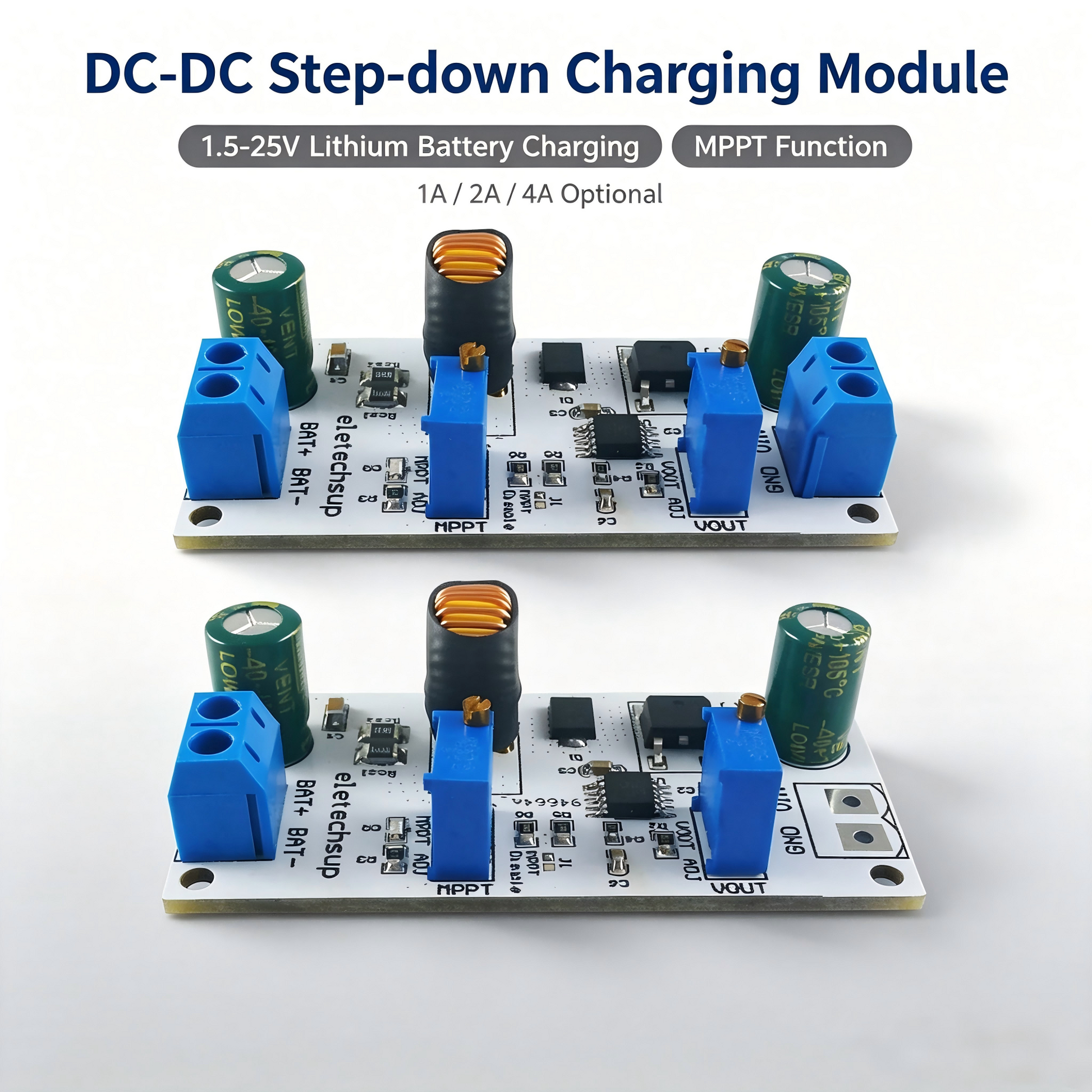

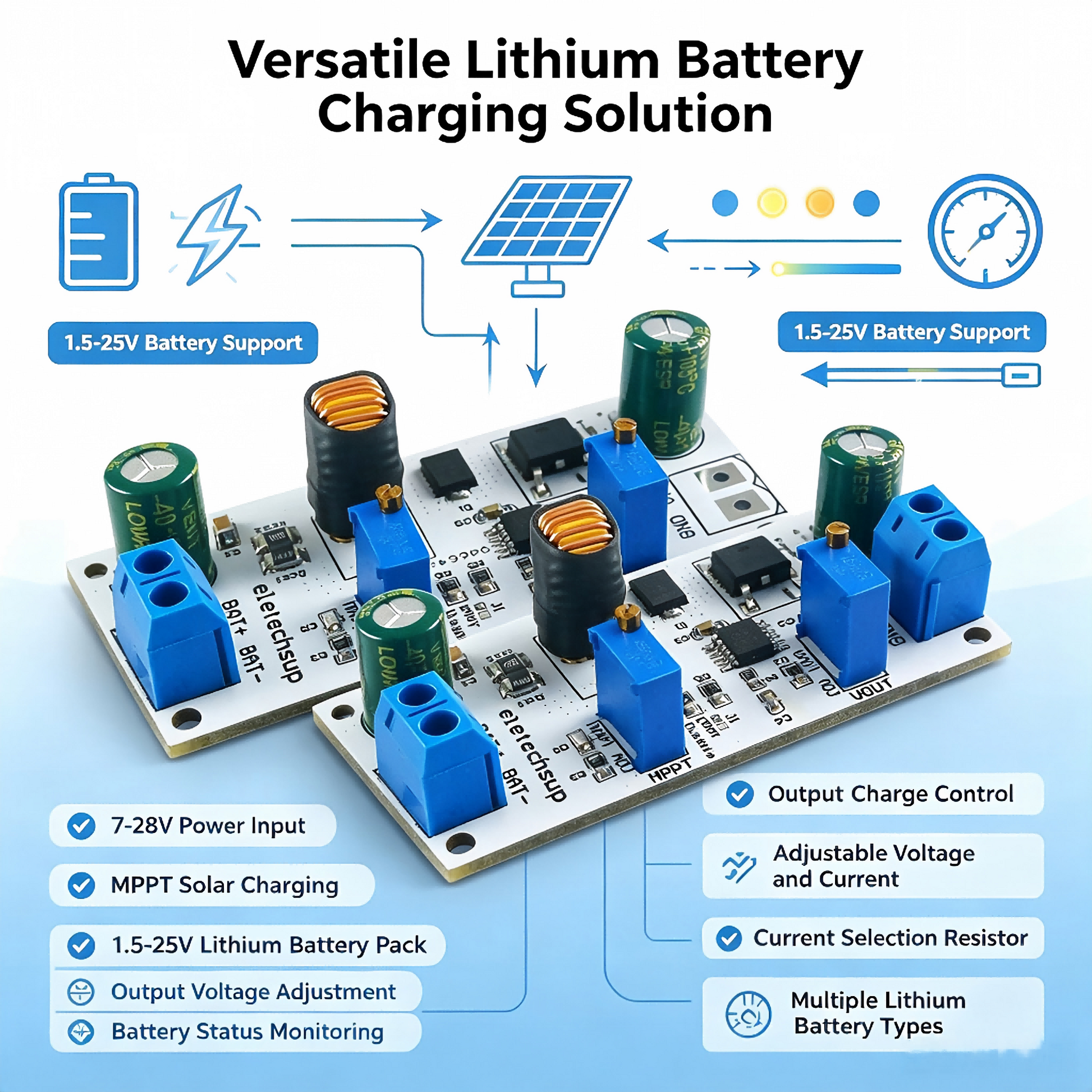

DC-DC Step-down Charging Module for 1.5-25V Li-ion/Li-po/LiFePO4/Lithium Titanate Batteries


Input voltage : DC 7-28V


MPPT voltage :DC 7-25V(Adjustable)


Output voltage : 1.2-25V(Adjustable)


MPPT Disable: Solder J1 Pad

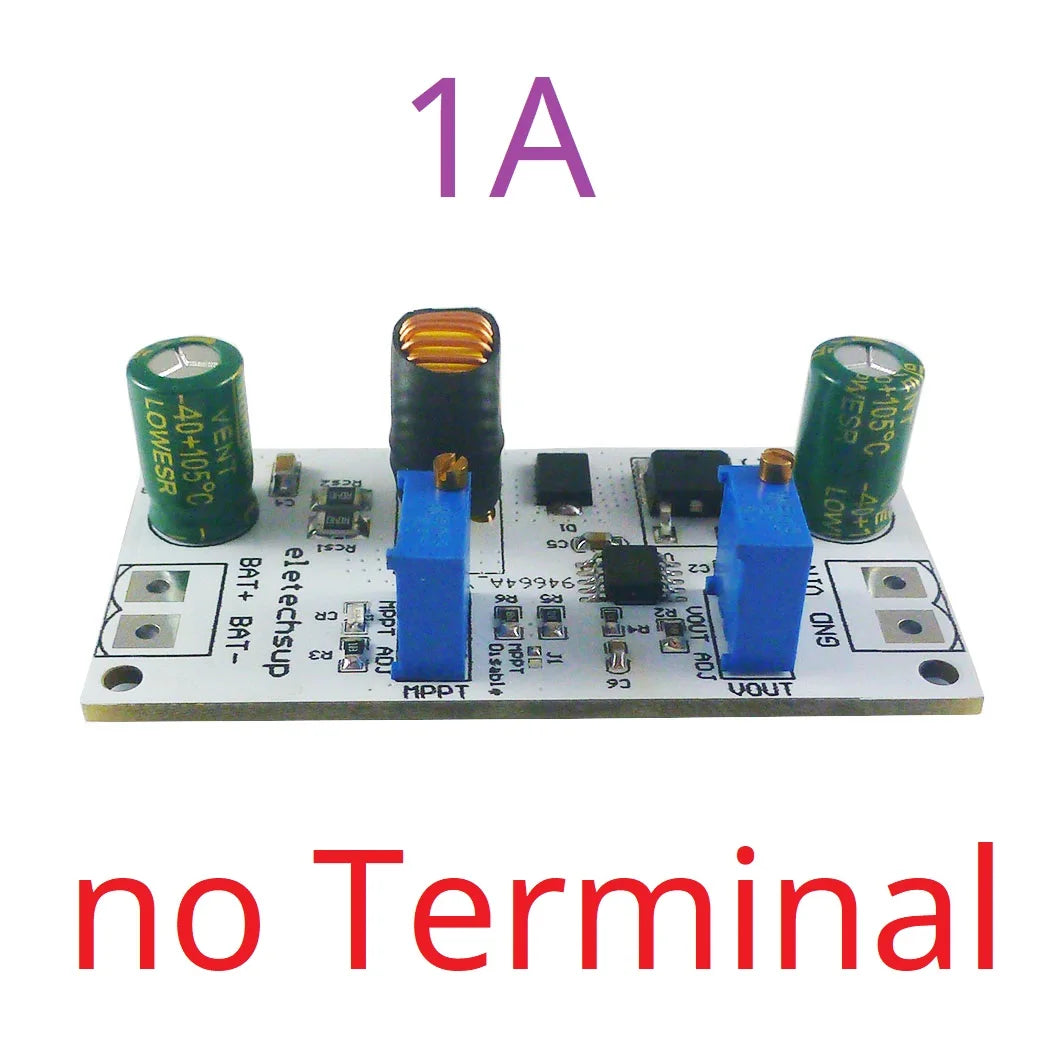

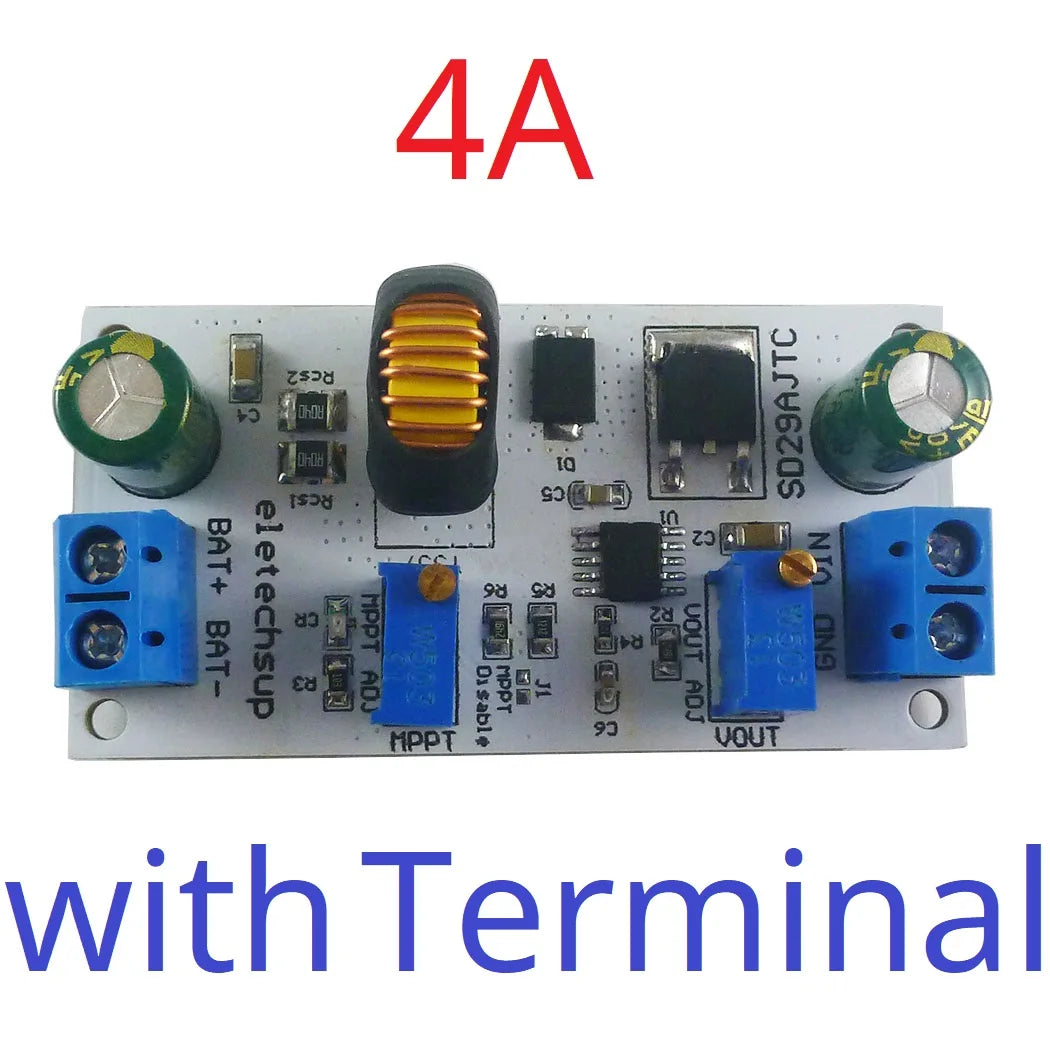

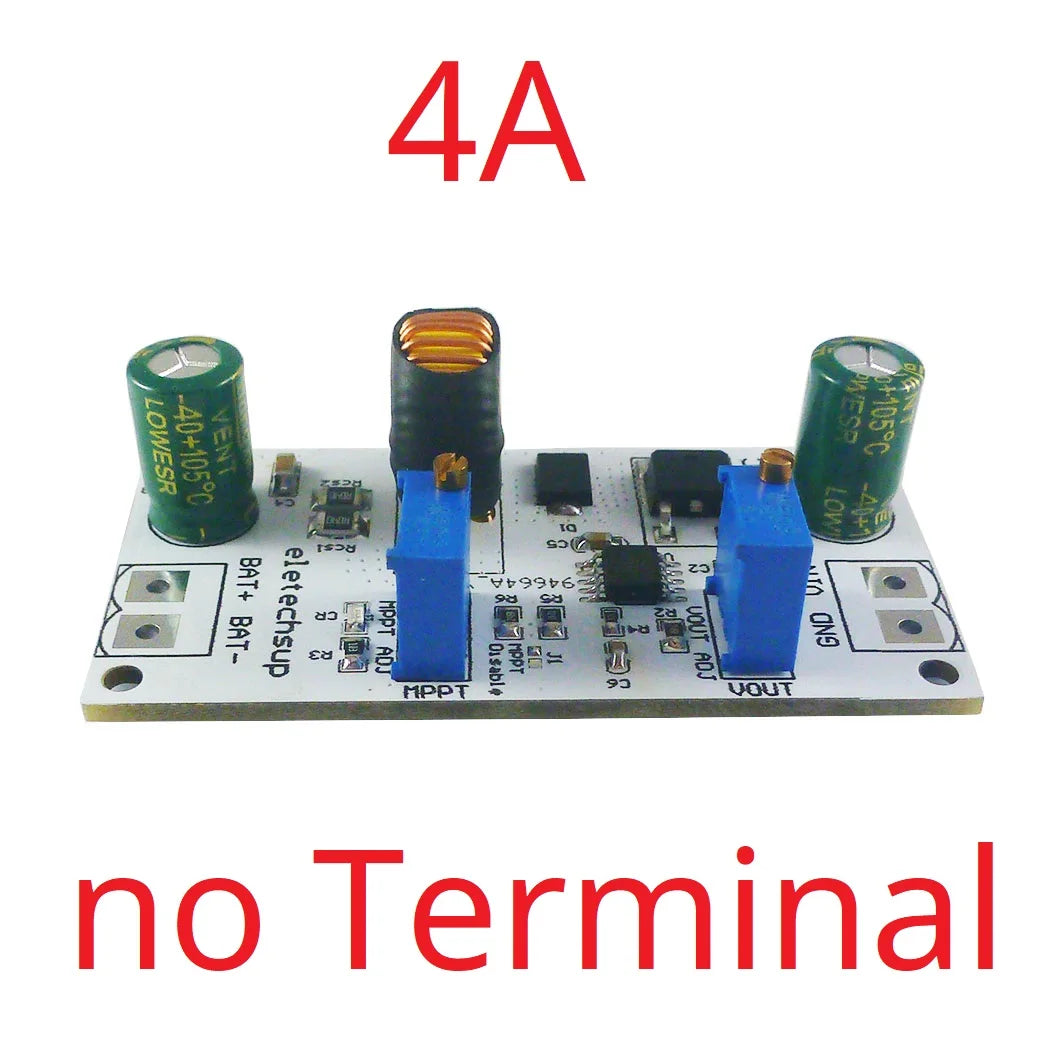

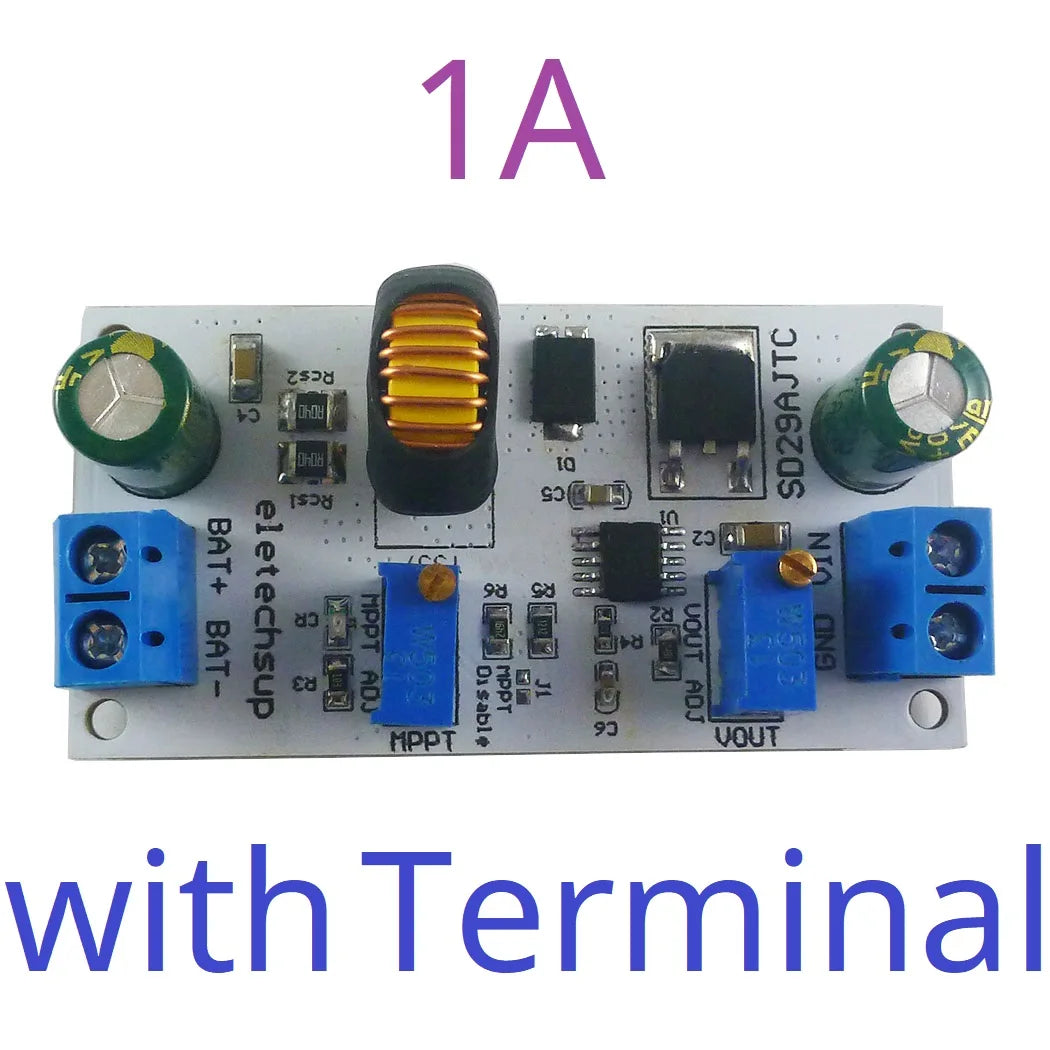

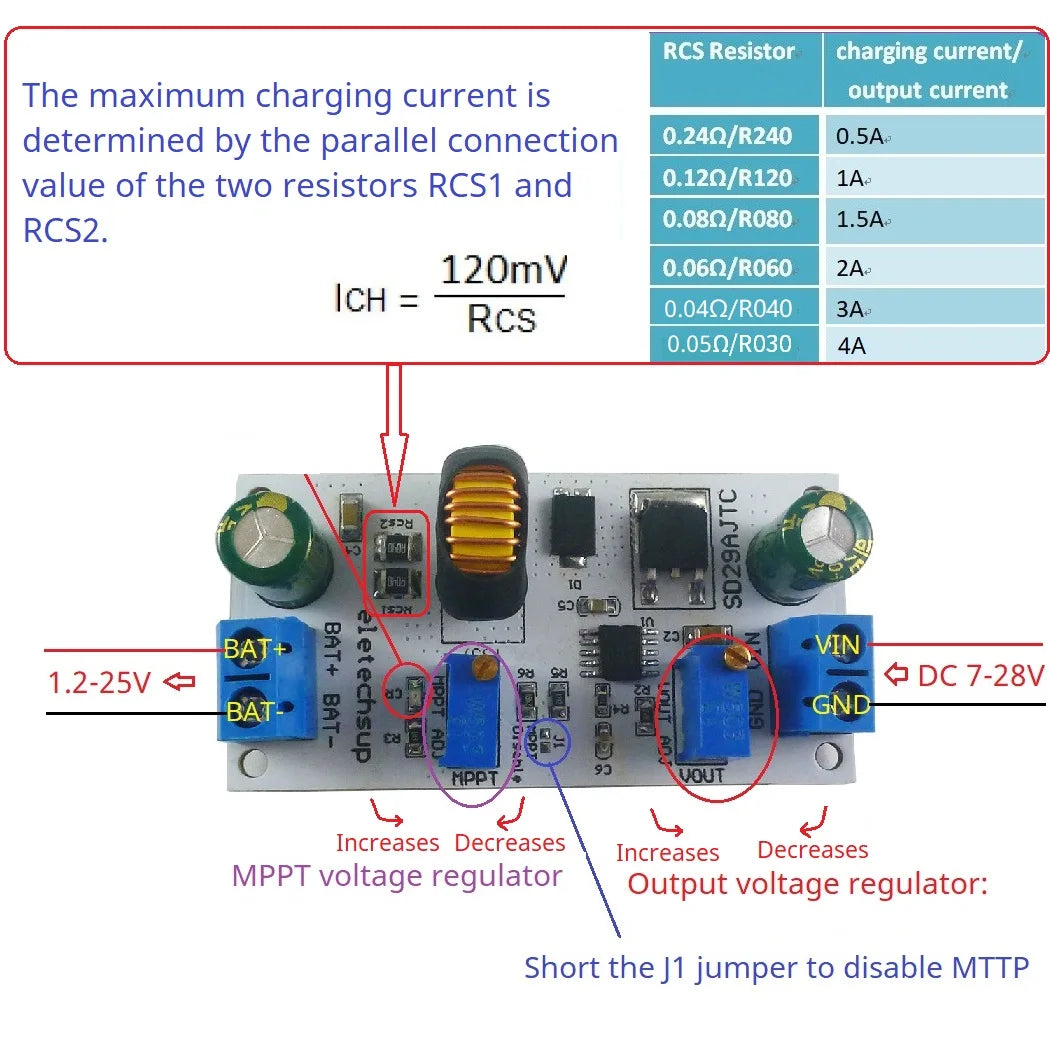

Charging current: 1A/2A/4A optional. You can also change the charging current by modifying the resistance of RCS1 and RCS2.

Can be used as Voltage Source when Battery is Absent

Automatic Conditioning of Deeply Discharged Batteries

Automatic Recharge


Led indicator : ''CR'' LED is charge status indicator(It may still be charging after the light goes out, this is normal)


Battery Overvoltage Protection


Operating Ambient Temperature－40℃ to ＋85℃


Size : 59 x 30 x 15mm

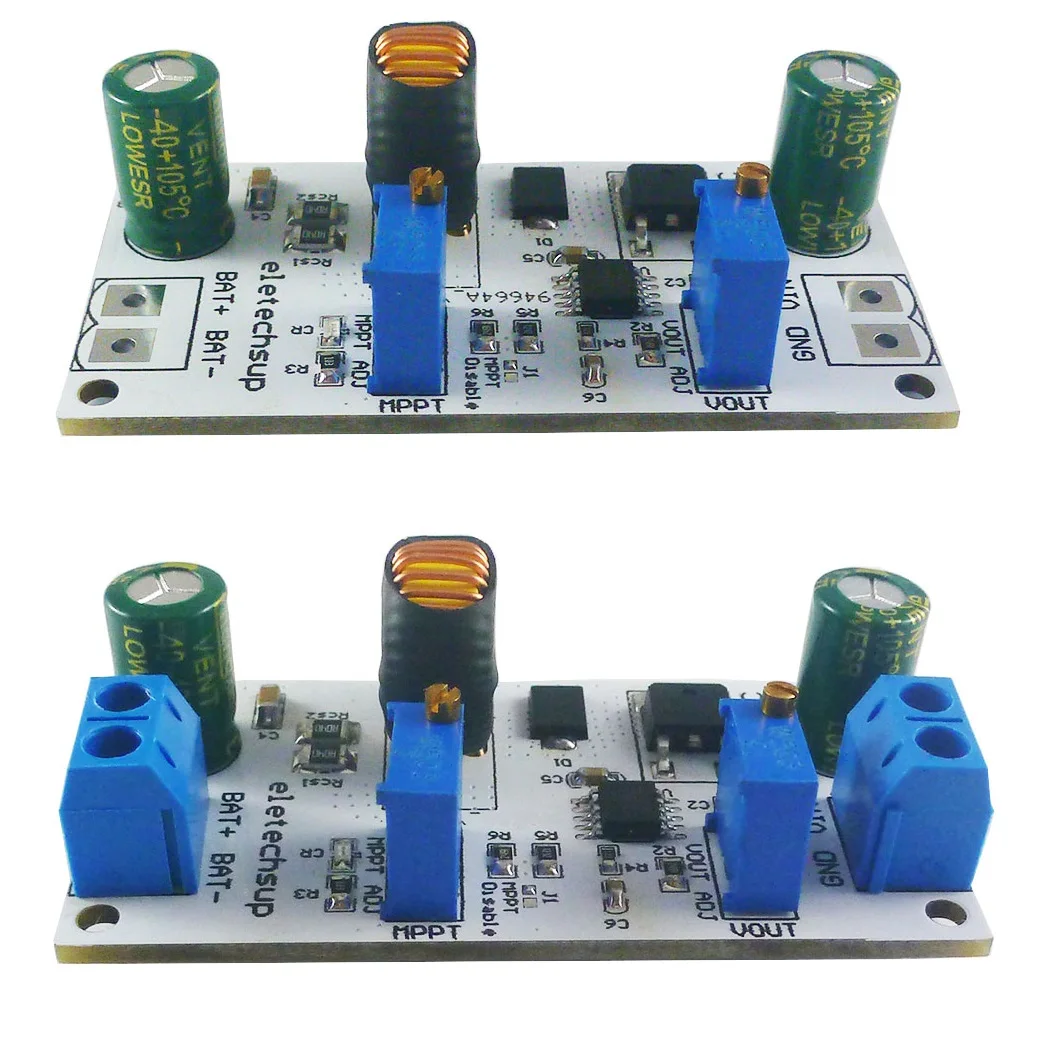

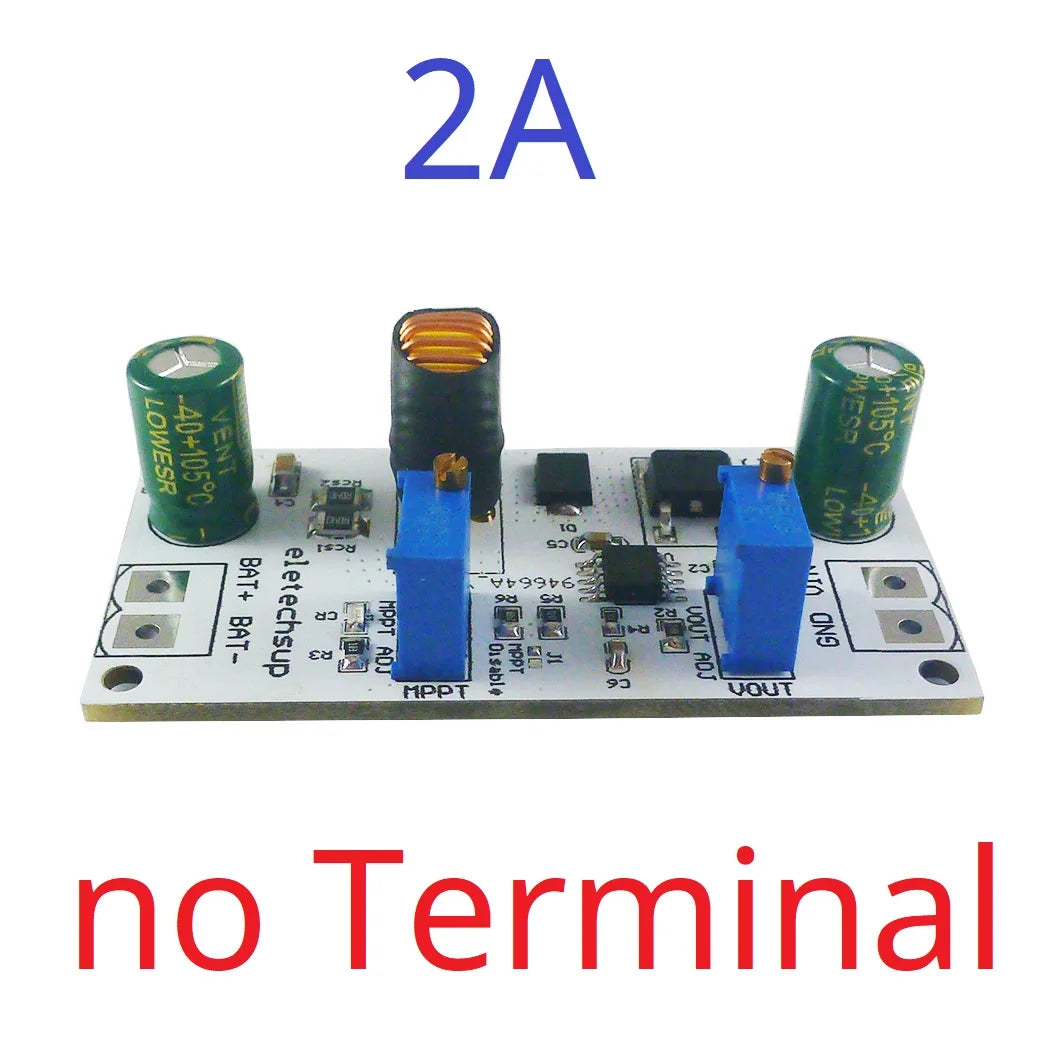

Weight : 16g(no Terminal);19g(with Terminal)

This is a step-down charging module with MTTP function. Please note when using it:


1 If the output fails after connecting to the power supply, please check whether the MTTP voltage is too high, and reduce the MTTP voltage

2 After the CR charging indicator is off, it is still charging, which is a normal phenomenon

3 The output current (charging current) is determined by the capacity and power of the battery. The maximum current cannot be directly output without connecting the battery.

4 This is a buck module, the input voltage must be more than 3V greater than the output voltage.

Applications:

MPPT Solar Controller DIY



7-24V Solar battery charging



12V Car battery charging



Mobile Loadspeaker



Electric Bicycle Charger



UPS DIY



Portable Industrial and Medical Equipment



Standalone Battery Chargers



Hand-held Equipment



Battery-Backup Systems



Portable Industrial and Medical Equipment

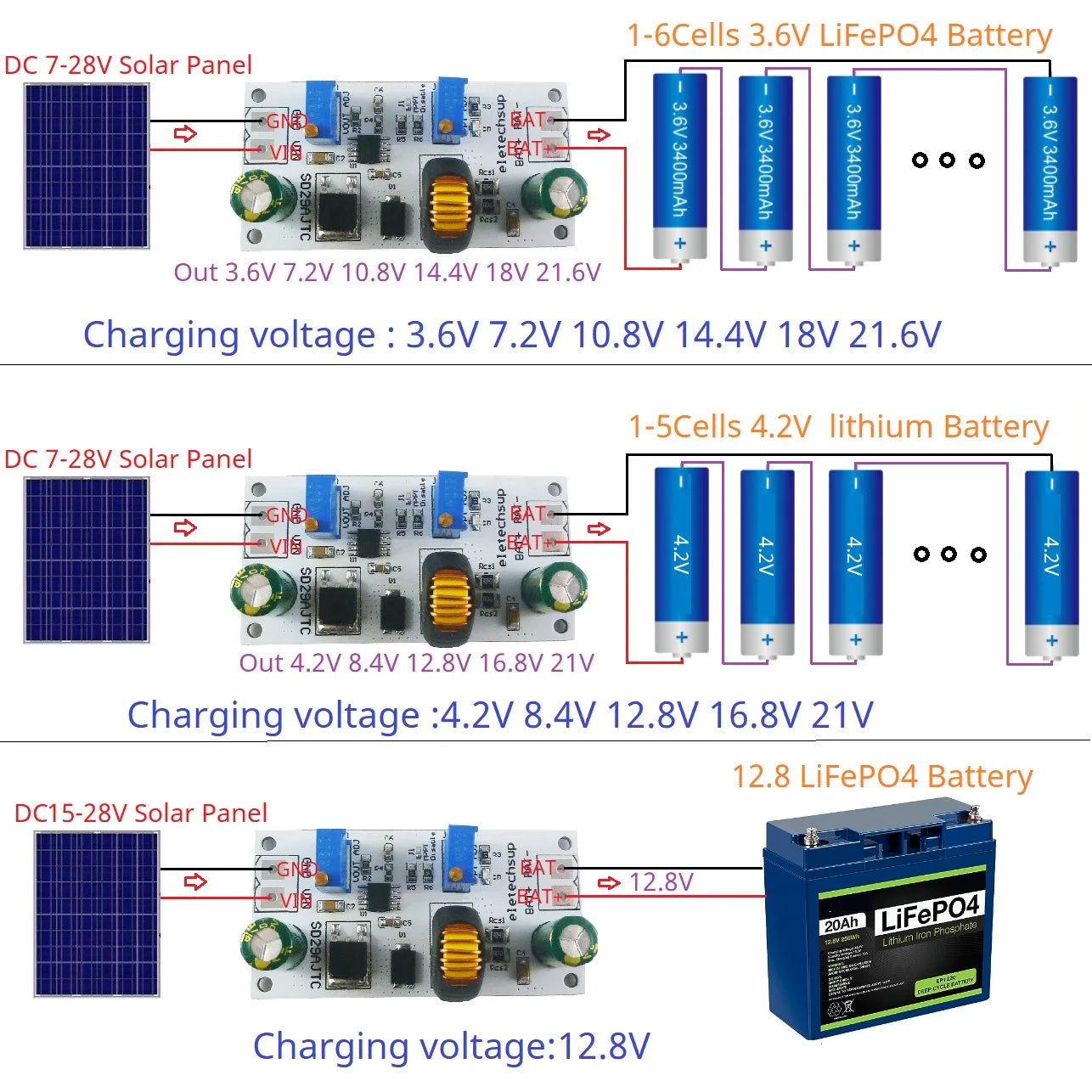

1-6Cells 3.6V LiFePO4 Battery



1-5Cells 4.2V lithium Battery



Lithium Titanate Batteries

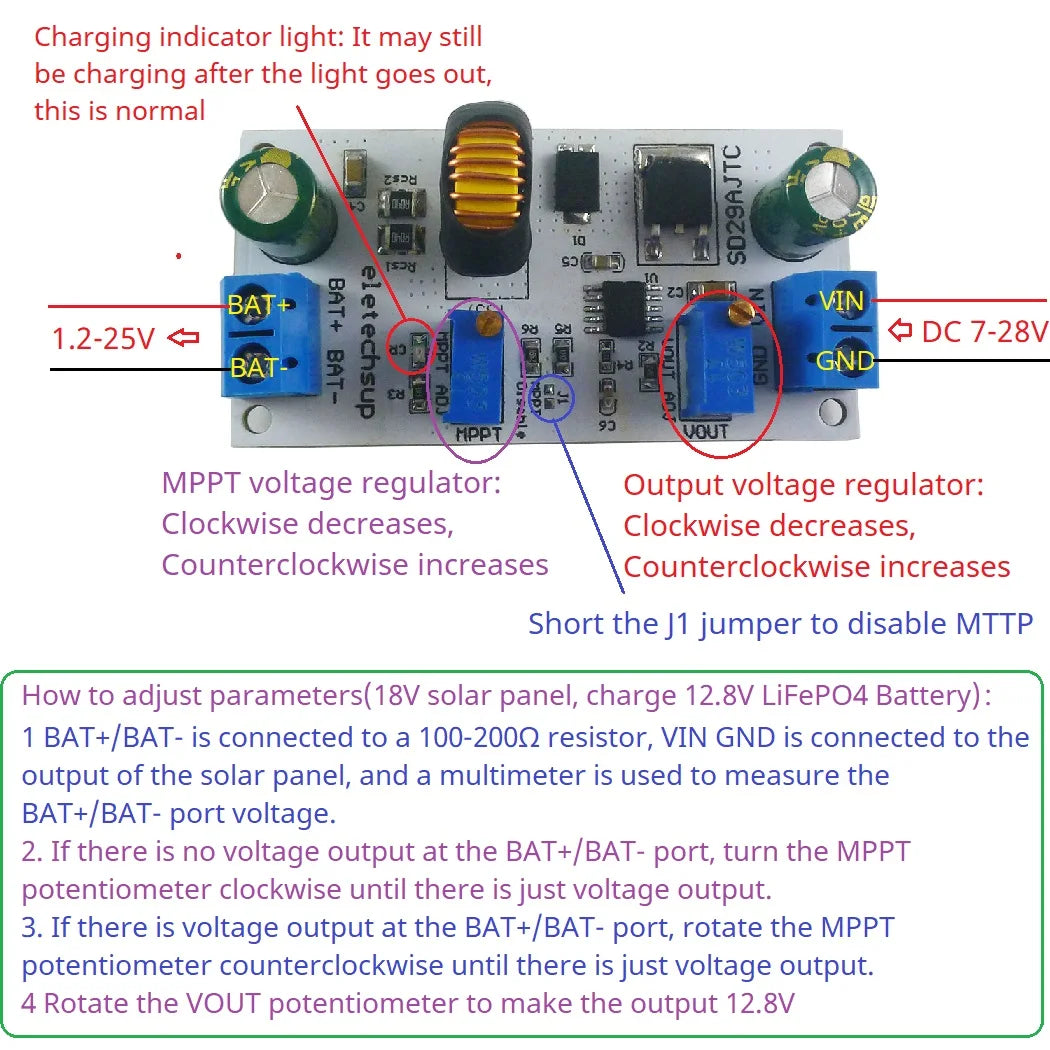

How to adjust parameters(18V solar panel, charge 12.8V LiFePO4 Battery):


1 BAT+/BAT- is connected to a 100-200Ω resistor, VIN/GND is connected to the output of the solar panel, and a multimeter is used to measure the BAT+/BAT- port voltage.


2 If there is no voltage output at the BAT+/BAT- port, turn the MPPT potentiometer clockwise until there is just voltage output.


3 If there is voltage output at the BAT+/BAT- port, rotate the MPPT potentiometer counterclockwise until there is just voltage output.


4 Rotate the VOUT potentiometer to make the output 12.8V
